Controls

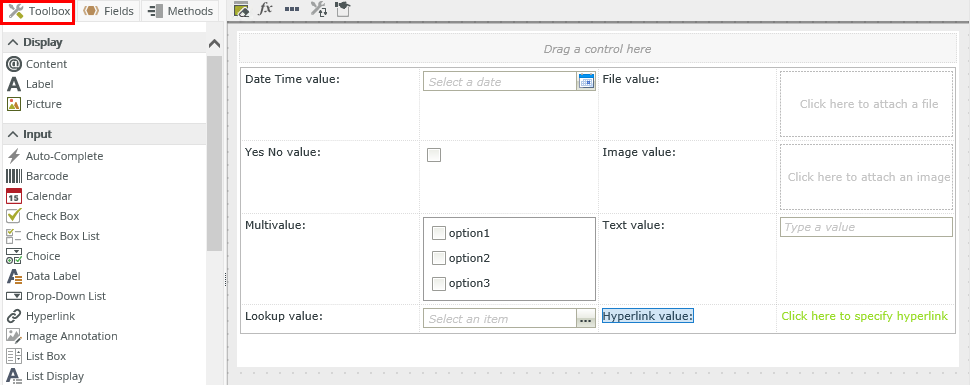

You can use controls on views and forms to display and capture data. When you generate a view, you have the option to automatically bind controls to SmartObject properties, and different controls are used for each data type. You can also bind controls to capture or display data from another, non-primary SmartObject, for example a drop-down list control that shows a list of Regions. You can change the control, set its properties at design time and at runtime, configure validation patterns and expressions, and respond to control events by using rules. Lastly, you can apply formatting and styling, such as decimal formatting and a bold font to each control. There are over 40 controls available in the Toolbox, grouped by category. Use the following image to familiarize yourself with some of the controls and an example view that includes an assortment of them.

The following categories are used to group the available controls:

List of Controls

The following is a complete list of the controls available. Click the headers to sort.

Category Control Description
Display Content An iFrame (Inline Frame) used to embed another view or form, or to display a URL
Display Label Used to display text
Display Picture Used to display an image
Input AutoComplete Provides suggestions while you type
Input Barcode Allows you to capture barcodes in a form when using the K2 Mobile app (on supported devices)
Input Calendar Allows you to specify a date using a calendar
Input Check Box Allows you to set true/false, yes/no, on/off options
Input Check Box List A check box group for choosing multiple items from a list of related options
Input Choice Allows you to select a value from a drop down list of values, which can be static of from a SmartObject list
Input Data Label A label typically bound to a SmartObject property that you can apply validation to in order to capture a single value
Input Drop-Down List Allows you to select a single item from a drop-down list
Input Hyperlink Displays an HTML link to a URL that opens in the default browser
Input Image Annotation Allows you to annotate images using the K2 Mobile app
Input List Box A single column multi-select control, allows you to select one or more items from a list
Input List Display Displays and allows you to choose from a list, typically used for displaying data from an associated SmartObject
Input Lookup Displays and allows you to choose from a lookup list based on SmartObject data
Input Multi-Select A two column control that allows you to select from a list of available items, with selected items on the right
Input Picker A searchable drop-down that also provides resolution of data, such as a list of users
Input Radio Button A single option button that you can use by itself or when part of a radio button group control to provide a list of options.
Input Radio Button Group Used to group radio button controls to form a list of options. Not visible at runtime
Input Radio Button List Provides a pre-configured option button list with a border
Input Rating Allows you to rate from one to five stars
Input Rich Text Allows you to insert formatted text and graphics.
Input SharePoint Hyperlink Allows you to insert a link to a URL, specify the link text, and test the link.
Input Slider Allows you to select from a range of values by moving a thumb control along a track. At design time you specify minimum and maximum values
Input Text Area A multi-line text box
Input Text Box A single line text box
Input Tree Allows you to display a hierarchical list of information.
Action Button Allows you to click to take an action configured at design time using rules
Action Toolbar Button Adds a button to the toolbar in the view, and can include an icon
Action Timer control Allows you to execute a rule after a configurable period of time
Attachment File Attachment Allows you to attach a file and displays a progress bar during upload
Attachment Image Attachment Allows you to attach an image and displays a progress bar during upload
Layout Table Use a table to control the layout of labels and controls
Export Save as PDF Generate a PDF snapshot of the view or form
Worklist Worklist An interactive control containing work items for the current user, allowing you to see and action tasks.
Information Location Services Allows you to capture location and time information from GPS on mobile devices when using the K2 Mobile app
Reports Activity Instances Chart Graphic display of workflow activities based on configurable filter criteria, displayed as an aggregated view of the activity.
Reports Activity Instances Grid Lists all activity instances of a workflow based on configurable filter criteria, displayed as a list with detailed information, sorting, and paging.
Reports Report Header An dashboard control allowing you to view different types of workflow reports. Contains common properties used to filter other charts or grids on the view.
Reports User Performance Chart Graphic display of users who have participated activity based on configurable filter criteria, and displayed as an aggregated view of instances per user.
Reports User Performance Grid Lists users who have participated in the activity based on configurable filter criteria, and includes activity data.
Reports Workflow Data Grid Lists all data fields of a workflow instance based on configurable filter criteria.
Reports Workflow Duration Chart Graphic display of the average duration of workflow instances over time, based on configurable filter criteria.
Reports Workflow Instances Chart Graphic display of workflows based on configurable filter criteria.
Reports Workflow Instances Grid Lists all workflow instances based on configurable filter criteria. The data is displayed as detailed information related to a workflow instance or instances.
Reports Workflow References Grid Lists all workflow item references of a workflow instance based on configurable filter criteria. Allows you to expand the references to view detailed information.
