Report Header Control

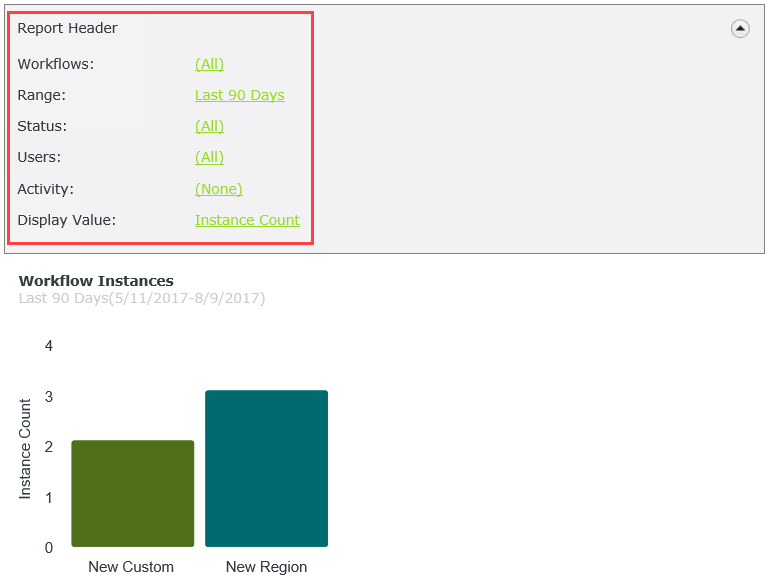

The Report Header control is an interactive reporting dashboard allowing you to view different types of workflow reports. Use the control to filter charts or grids on a view or form. You can configure rules to run a chart or grid when you change a filters, or you can use the control as a header to indicate which filters apply to the chart or grid by enabling the Read-Only property.

  1. Create a view.

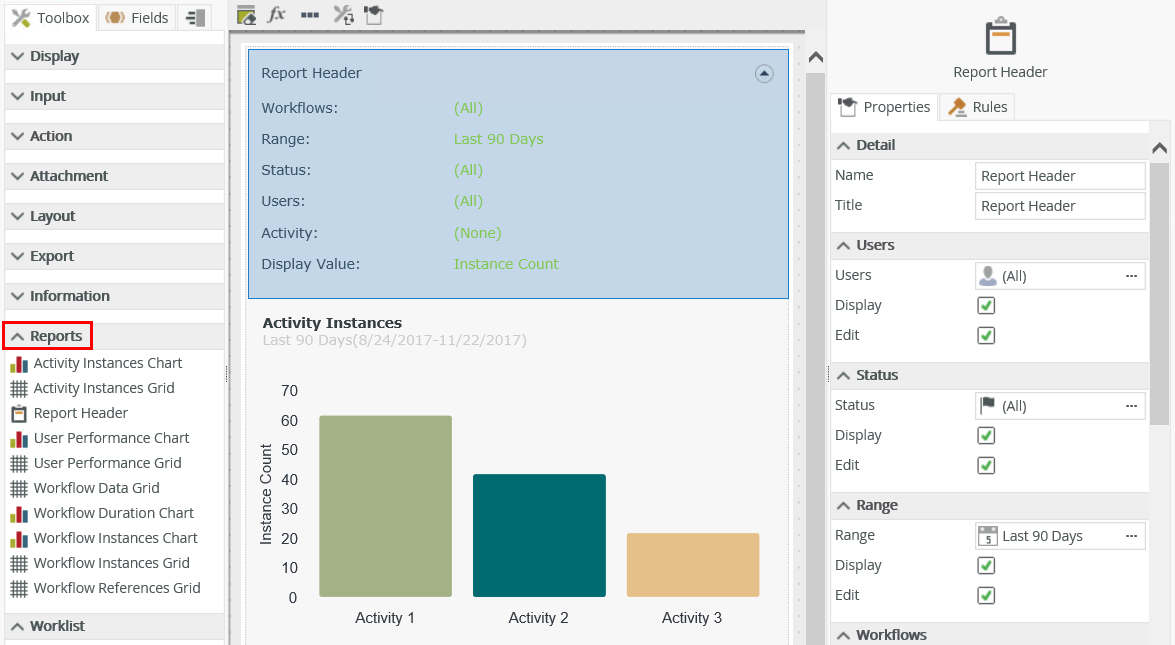

  2. Drag the control onto the canvas. You can find the control in the Reports section of the Toolbox.
  3. Configure the properties as necessary.

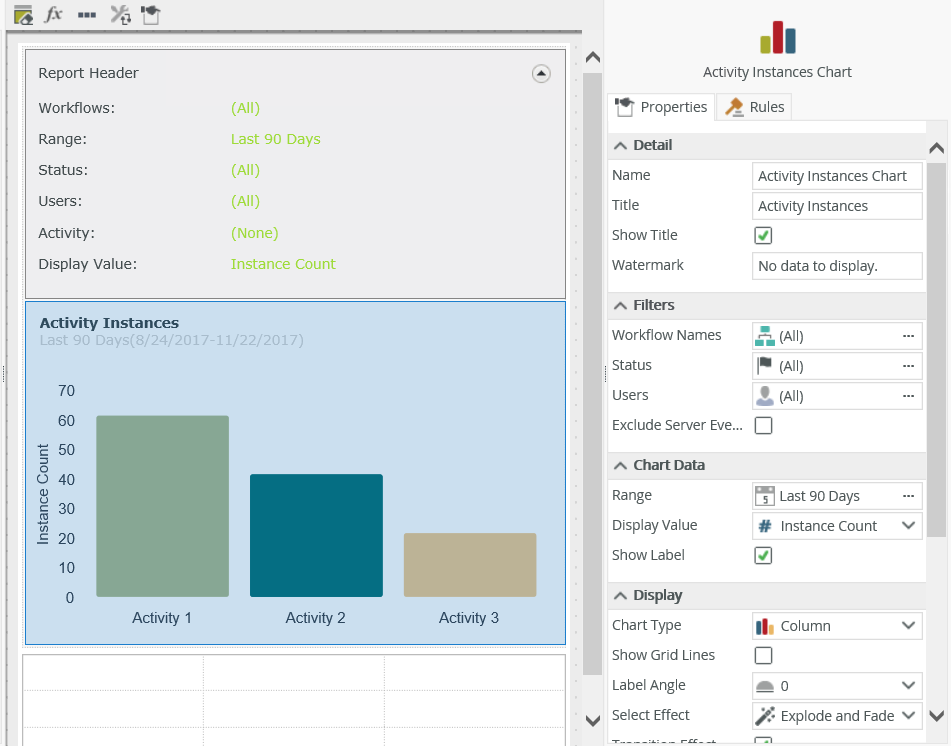

  4. Add another Report control such as a chart or grid to display the information and configure the properties of that control. The example shows an Activity Instances Chart control.

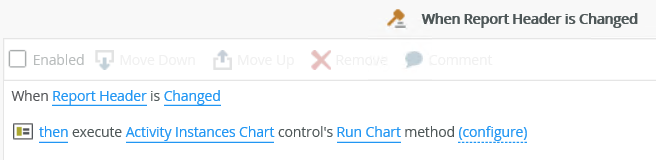

  5. Add a rule to run the chart or grid when the control is changed to refresh the filters.

You can find the control in the Reports section of the Toolbox.

Property Description Can be set in runtime using Rules
Detail
Name A unique identifier for the control. This property is required and defaults to the name of the control. No
Title The title to display for the control. Yes, see Configure the Set a Control's Properties Action for more information.
Users
Users Select users who start or participate in a workflow instance. Click the ellipsis to use the Users Picker. Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Users filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Users filter. Yes, see Configure the Set a Control's Properties Action for more information.
Status
Status You can select specific statuses of the activity instance or workflow instance you want to filter. The statuses depend on the type of report you use with the control. Click the ellipsis to use the Status Picker. The default setting is All. Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Status filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Status filter. Yes, see Configure the Set a Control's Properties Action for more information.
Range
Range

The date range to use to filter the data. The data returned typically executes according to the date on which a workflow instance or activity instance is started. Select a date range from the predefined drop-down list to filter. Click the ellipsis to use the Date Range Picker.

 Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Range filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Range filter. Yes, see Configure the Set a Control's Properties Action for more information.
Workflows
Workflow Names

This is the workflow on which you want to filter the data. If you select All, all workflows are shown. Click the ellipsis to use the Workflows Picker. You can add more than one workflow to the list. The default setting is All.

 Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Workflows filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Workflows filter. Yes, see Configure the Set a Control's Properties Action for more information.
Activity
Activity Name This is the activity on which you want to filter the data. This property is only applicable when you use the control with a User Performance Chart or User Performance Grid control. Click the ellipsis to use the Activity Picker. Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Activity filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Activity filter. Yes, see Configure the Set a Control's Properties Action for more information.
Display Value
Display Value This shows how the data is aggregated in the chart or grid. You can select to show the data in duration (how long the activity took to complete) or instance count (the amount of instances per activity). Yes, see Configure the Set a Control's Properties Action for more information.
Display Shows or hides the Display Value filter. Yes, see Configure the Set a Control's Properties Action for more information.
Edit Enables or disables the Display Value filter. Yes, see Configure the Set a Control's Properties Action for more information.
Chart Type
Chart Type You can display a chart as a Column, Pie or Bar chart
Column - Displays values as sets of vertical columns that are grouped by category
Pie - Is a circular chart divided into sectors. Each sector shows the relative size of each value
Bar - Is a chart using rectangular bars with lengths proportional to the values they represent		 Yes, see Configure the Set a Control's Properties Action for more information.
Settings
Expanded Expands or collapses the header. Yes, see Configure the Set a Control's Properties Action for more information.
General
Tab Index Defines a sequence that users follow when they use the Tab key to navigate through a page at runtime. Yes, see Configure the Set a Control's Properties Action for more information.
Height Adjusts the height of the control. You can enter any whole number or pixel value (maximum of 32767px). Yes, see Configure the Set a Control's Properties Action for more information.
Visible Shows or hides the control. Yes, see Configure the Set a Control's Properties Action for more information.
Enabled Enables or disables the control. If the control is disabled, you cannot interact with the control. Yes, see Configure the Set a Control's Properties Action for more information.
Read-Only Shows the control as read-only. Yes, see Configure the Set a Control's Properties Action for more information.
Format Opens the Format page where you can configure formatting and style features such as format, font, borders, padding and margins. See the Format topic for more information. No
Conditional Format Opens the Conditional Formatting page. You can add conditional formatting to apply a specific format or style when a condition you set is True. Use conditional format on its own or with the Format feature. See Conditional Format for more information. Click the ellipsis to open the Conditional Formatting page. No

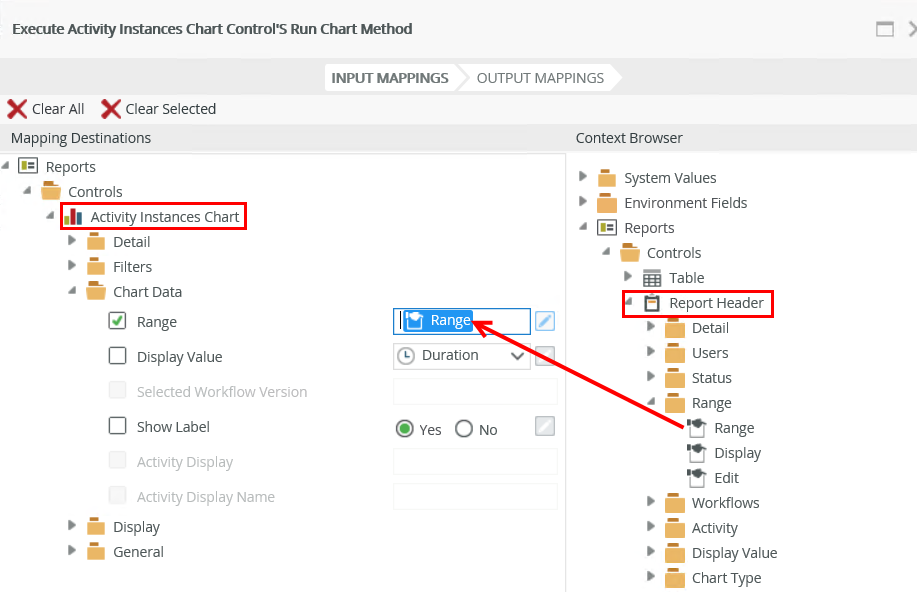

Report controls interact with each other through rules. When you bind properties between different controls, you can use the data to populate properties or set values. As an example, if you bind the Range property of the Report Header control to each report control on a view or form, you can use the Range filter to apply the same date range to all reporting controls.

The following event is available on the control:
Rule Events:

  • When [control] is Changed: This event executes when the control is set to a new value that is different from the previous value. You can use this event to trigger actions when the control is changed, for example execute the Run method of another report control.

Security on the Report controls ensures that the data is seen by only those who are authorized. Permissions are based on the process rights assigned to the process in Management Site:

  • Admin or View permissions: You can access the Report controls.
  • View Participate permissions: You can view the Report controls from the point where you are part of the workflow.
