Theme

• Desktop Browsers: The theme is available using Internet Explorer 9 or later, Firefox (latest released version), Chrome (latest released version) and Safari for Mac (latest released version).
• Mobile Browsers: Safari for iOS 7 or later, Android browser, Internet Explorer for Windows Phone 8 and Chrome (latest released version).
• The theme is not compatible with Internet Explorer 8.

1. Create a form.
2. Select the theme under Appearance in the form's properties.
3. Finish the form.
4. Use the runtime URL of the form to run the form on any device such as a tablet or smartphone. The theme adapts to the screen size of the device to display the form optimally.

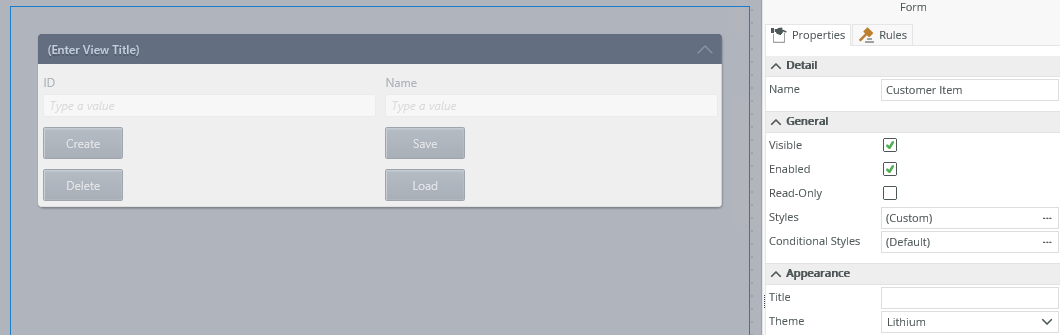

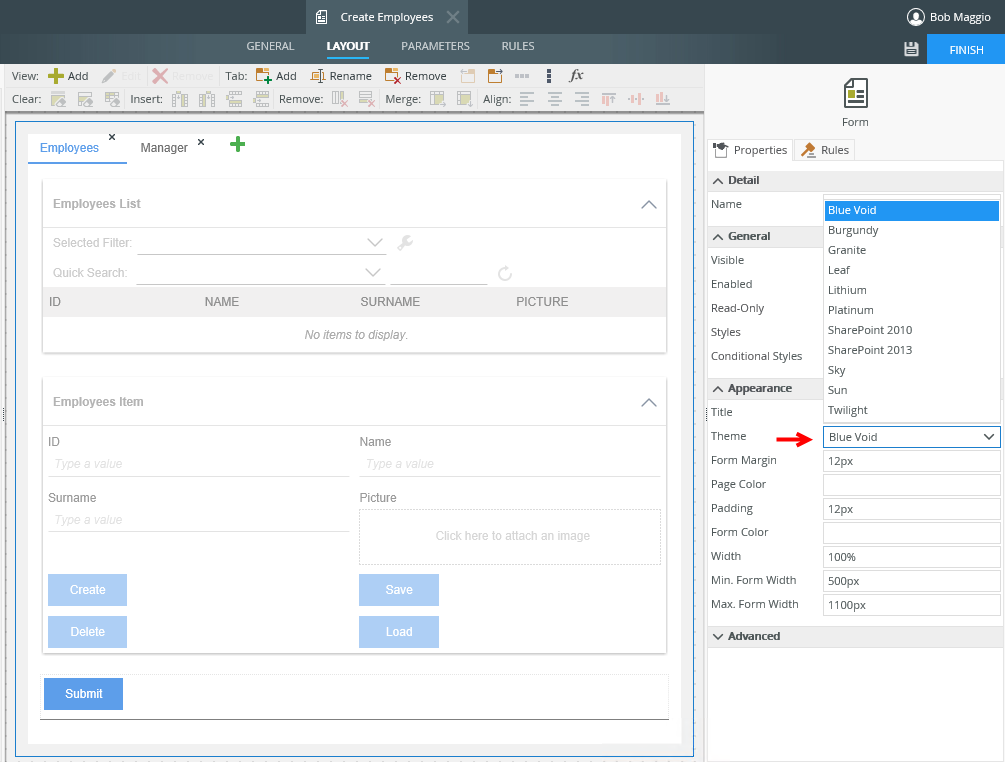

The example shows how to apply a theme to a form:

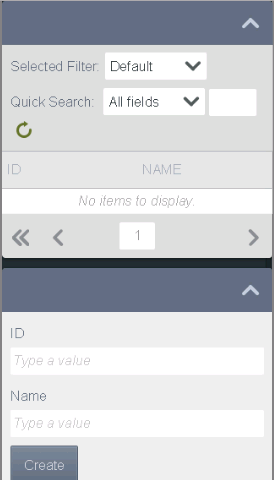

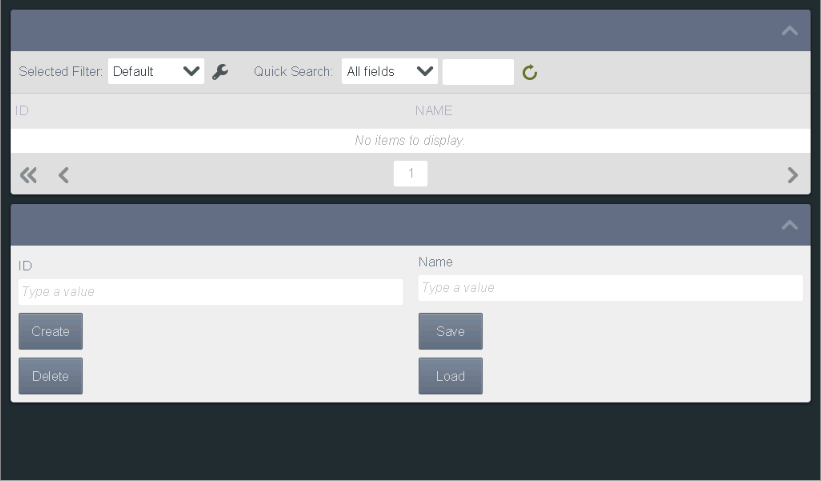

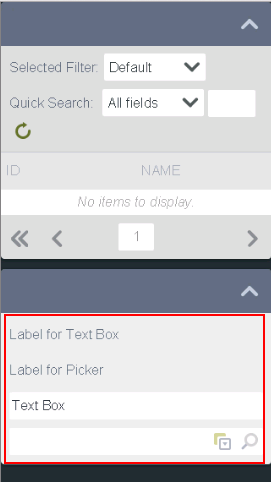

Below are examples of a form with the Lithium theme, the first when opened on an Apple iPhone 5 and the second on a Samsung Galaxy tablet:

Manually add the theme parameter to a URL

You can add the theme query string parameter to the URL of your form. In this example we're using the Departments form with a query string parameter of ?_theme=[value] where the [value] is the theme name.

To test the theme you can use the links below to browse to the form from the K2 Designer's properties page, and then add the parameter string to the end of the URL:

• Testing URL - opens the form in designer mode such as https://[domain]/Designer/Runtime/Form/Departments/
• Runtime URL - opens the form in runtime mode such as https://[domain]/Runtime/Runtime/Form/Departments/

Add ?_theme=[value] to the end of the URL and replace [value] with the name of the theme you want to show. If the theme name contains a space, use a plus sign (+) to replace the space (for example Blue Void should be blue+void, and the entire form URL should look like https://k2.denallix.com/Runtime/Runtime/Form/New+Client/?_theme=blue+void

From K2 Designer select a form and click the Testing URL link.

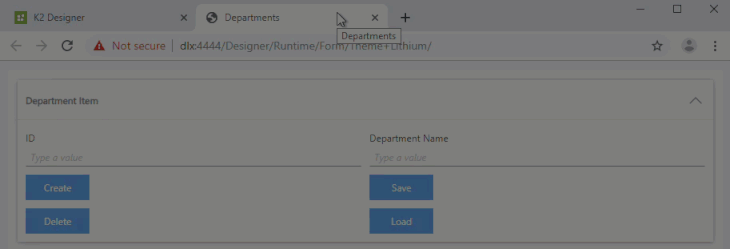

The Departments form opens in a new browser window in designer mode. In this example, the form shows using the Blue Void theme as specified in the form's properties. Type ?_theme=sun at the end of the URL and press Enter on your keyboard. The Departments form shows using the Sun theme.

Use a button to change the theme of a form

You can also define form rules to switch the theme applied to a form. For example, you may want to use different themes depending on the device being used to view the form.

In this example, you use a form called Departments containing the Department Item view. You apply the Blue Void theme to your form by default, and configure a rule to change the theme to Lithium when you click a button. This rule contains a navigate to a URL action, which you configure with the link to the form and the new theme (Lithium) parameter. The images below show the form and rule configuration.

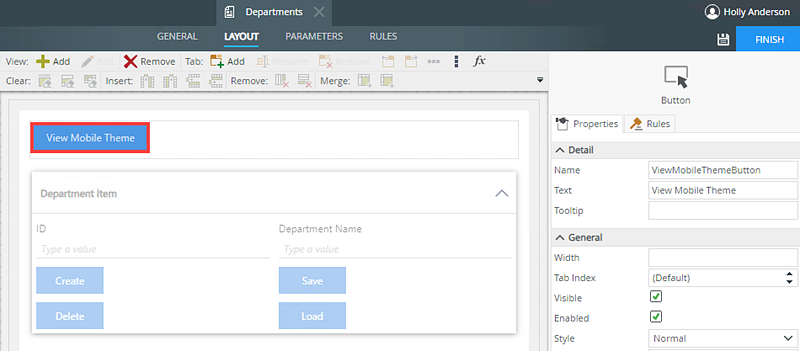

Departments form at design time showing the View Mobile Theme button:

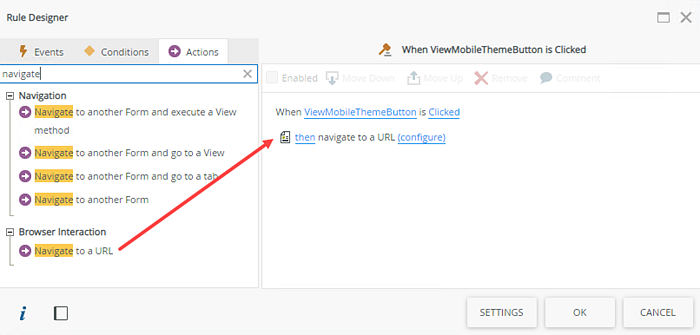

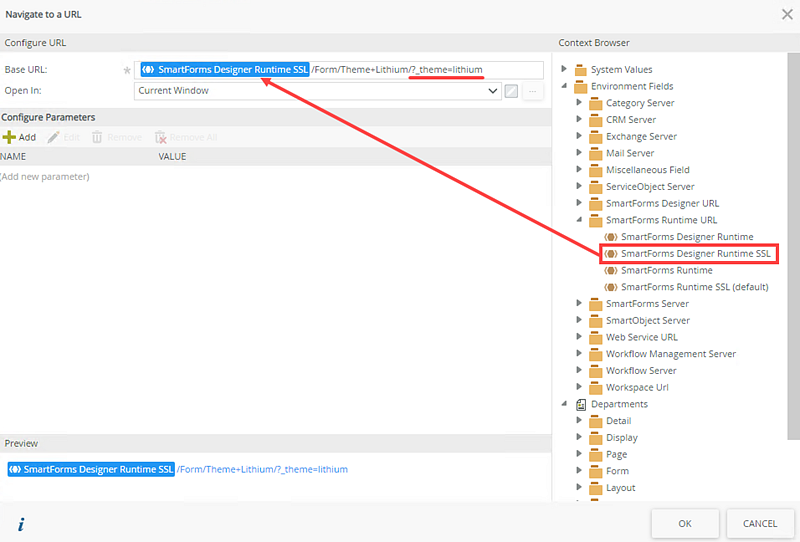

Rule Designer at design time showing View Mobile Theme button rule configuration:

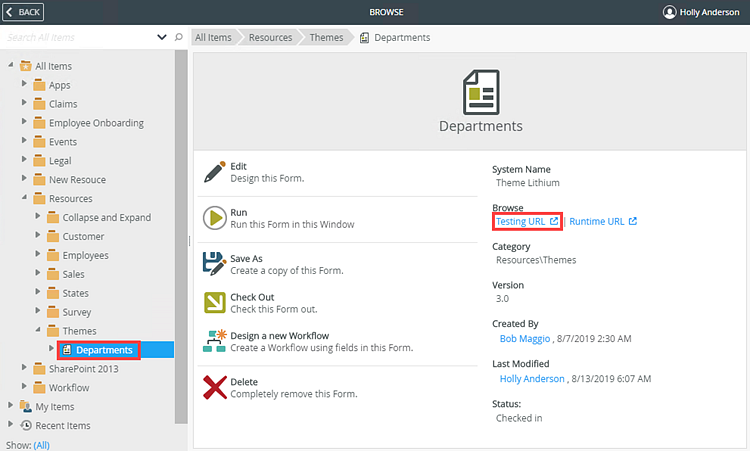

To test the View Mobile Theme button, from K2 Designer select the Departments form and click the Testing URL link.

The Departments form opens in a new browser window. In this example, the form shows using the Blue Void theme as specified in the form's properties. Click the View Mobile Theme button to change the theme to the mobile friendly Lithium theme.

Use the navigate to a URL action to set the theme for a view

If you have a form containing a rule that opens a subview, the subview inherits the theme of the form. Use the navigate to URL action with a theme parameter if you want to use a different theme for the subview.

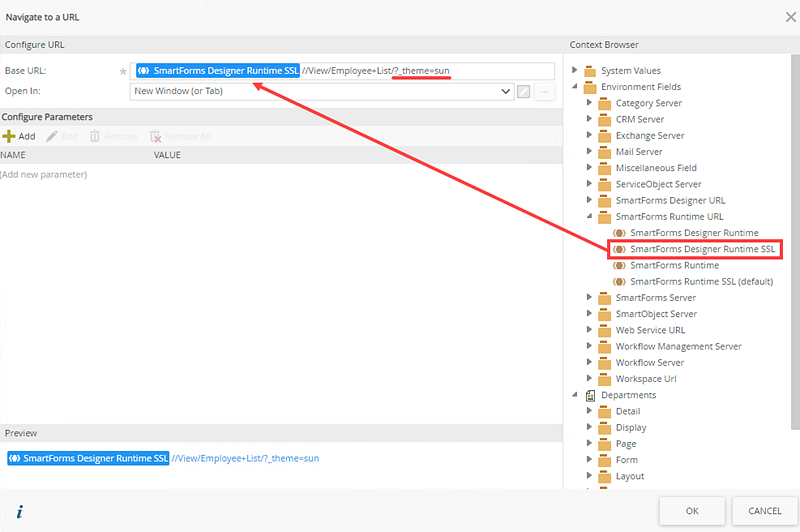

In this example, you use a form called Departments containing the Department Item view. You apply the Blue Void theme to your form and configure a rule to change the theme when you click a button. This rule contains a navigate to a URL action, which you configure with the view (Employee List) URL and the new theme (Sun) parameter. The images below show the form and rule configuration.

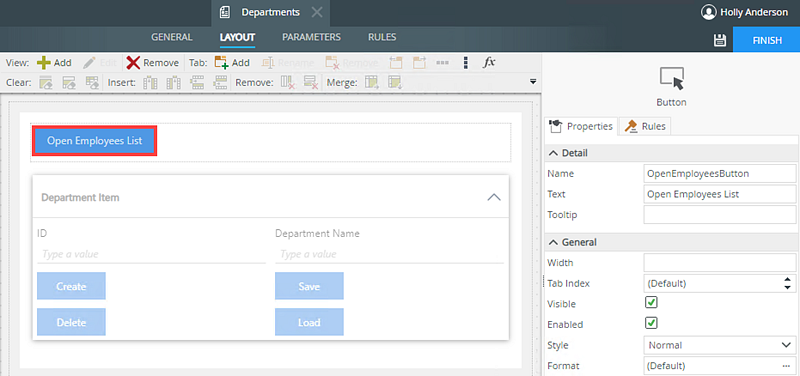

Departments form at design time showing the Open Employees List button:

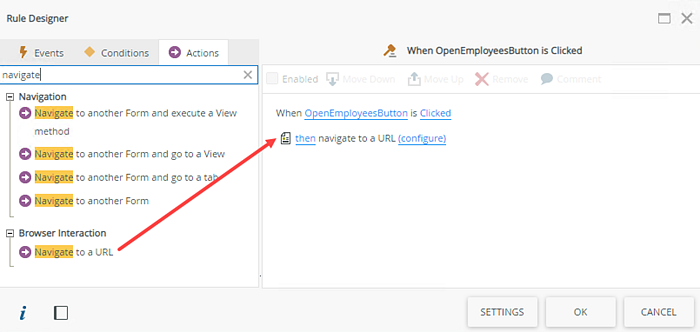

Rule Designer at design time showing Open Employees button rule configuration:

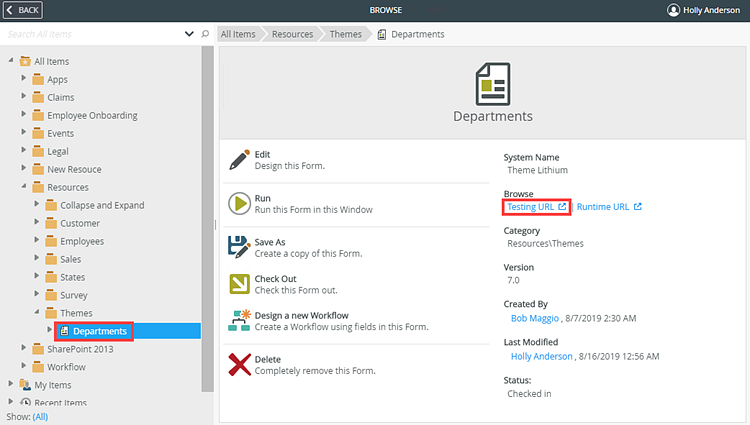

To test the Open Employees List button, from K2 Designer select the Departments form and click the Testing URL link.

The Departments form opens in a new browser window. In this example, the form shows in the Blue Void theme as specified in the forms display properties. Click the Open Employee List button to open the Employee List view in a new browser window. The view shows in the Sun theme.

Use a Content control to show a view in a different theme on a form

If you have a form containing more than one view, you can apply different themes to the views when the form loads by using a Content control that shows the URL of the view with the theme parameter applied.

In this example, you use a form called Departments containing the Department Item and Department List views. You apply the Blue Void theme to your form and add a Content control to embed the Department List view. You configure the Content control by adding the Department List view's URL and the new theme (Sun) parameter. The images below show the Content control configuration.

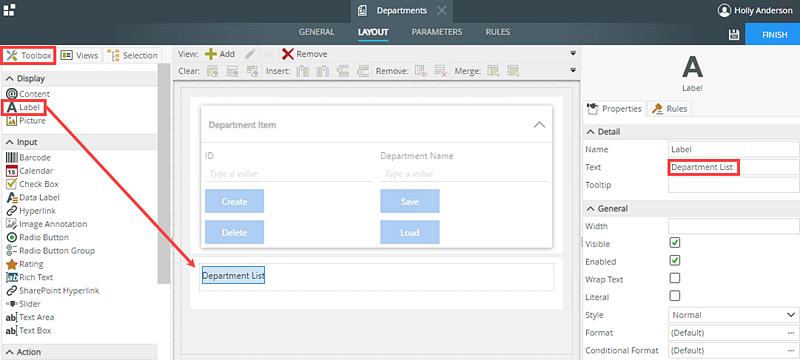

From the Toolbox, drag a Label onto the Departments form. Type Department List into the Text field to rename the label.

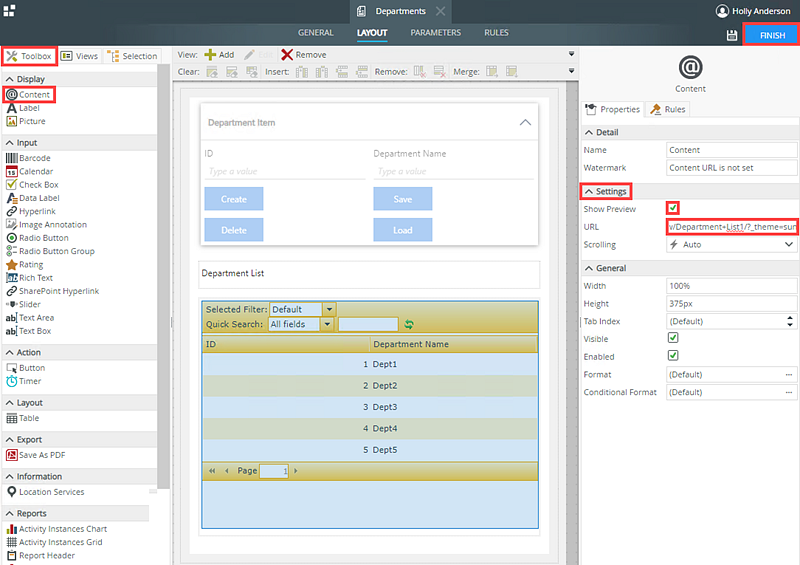

From the Toolbox, drag a Content control onto the form. In the Setting section, paste the copied Department List runtime URL in the URL field and check the Show Preview check box. Click Finish to save the form.

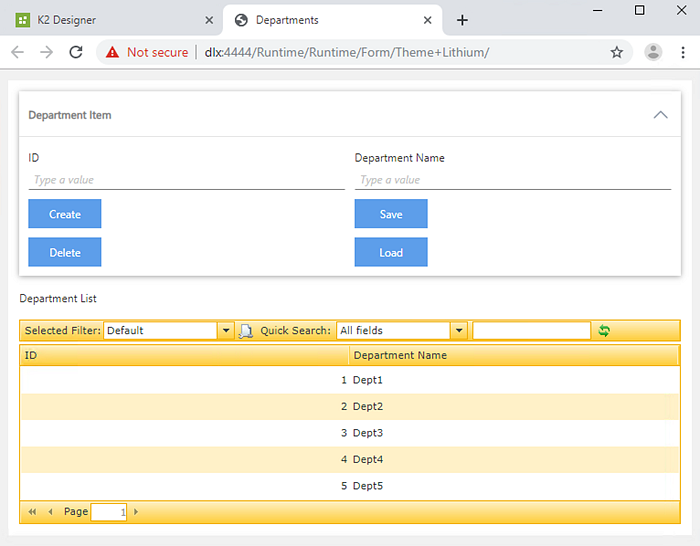

At runtime, the form shows using the Blue Void theme and the Department List view shows using the Sun theme.
