User Performance Chart

Security is applied to the controls to ensure that the data is seen by authorized individuals within an organization. Permissions are based on the process rights assigned to the process in Management Console:

• Users with Admin or View permissions will have access to the Report controls.
• Users with View Participate permissions will be permitted to view the Report controls from the point where the user has been part of the workflow.

1. Create a View

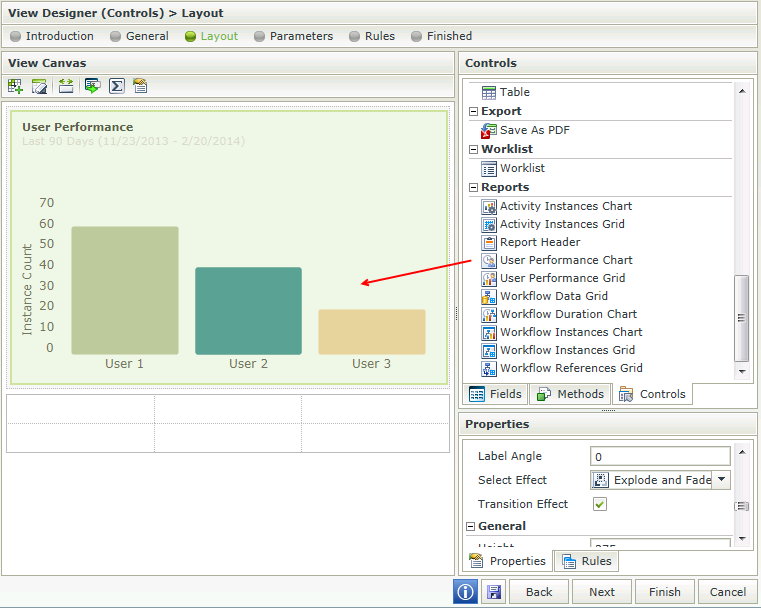

2. Drag the User Performance Chart control onto the canvas. The control can be found in the Reports section of the Controls found in the View Designer, see the Properties section below
3. Configure the properties of the User Performance Chart control as required, see the Properties section below

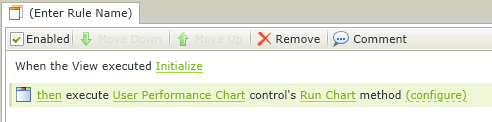

4. Add a rule to Run the Chart when the View is Initialized for example:
   Event: When a control on the View raises an event (When the View is Initialized)
   Action: Execute a control's method (Execute the Run Chart method)


• Always remember to create a rule to Run the Chart when the View Initializes
• When having many users, it is recommended to set the Label Angle in the Properties of the control to ensure that labels are displayed properly and do not overlap

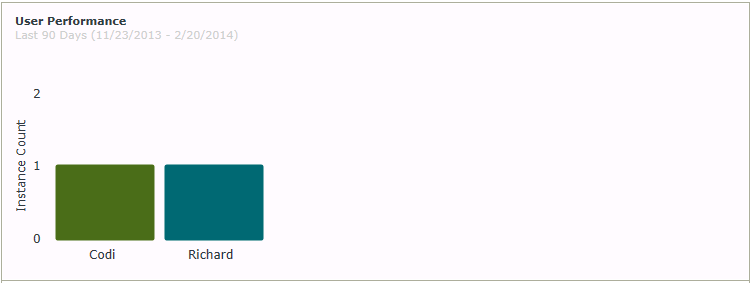

• The value of the User Performance Chart is the fully qualified name of the user on the x-axis. When clicking on a bar, pie slice or column (depending on the type of Chart used) in runtime, the value of the Chart will be the name of the user clicked and can subsequently be used to bind properties or configure rules
• When using a percentage for the width of the control and used in conjunction with the Save as PDF control, a pixel width is calculated and applied to the control’s width thus making the width of the Chart pixel based rather than percentage based. It is therefore advised to use a non-percentage based width when using the Chart with the Save as PDF control
• The User Performance Chart is populated with data where a user has completed a specific activity. Any other statuses are not reflected as the user's performance is measured on completion of an activity
• When using Custom Themes, be sure to specify the CSS classes for the elements
• The data of K2 workflows or processes created by any workflow designer such as K2 Studio, K2 Designer for Visual Studio, K2 Designer and K2 Designer for SharePoint  can be made available using the reporting controls
• When using a percentage for the width of Chart controls and used in conjunction with the Save as PDF control, a pixel width is calculated and applied to the control’s width thus making the width of the Chart pixel based rather than percentage based. It is therefore advised to use a non-percentage based width when using a Chart with the Save as PDF control

Report controls interact with each other through rules. By binding properties between different controls, data can be used to populate properties or set values in runtime.

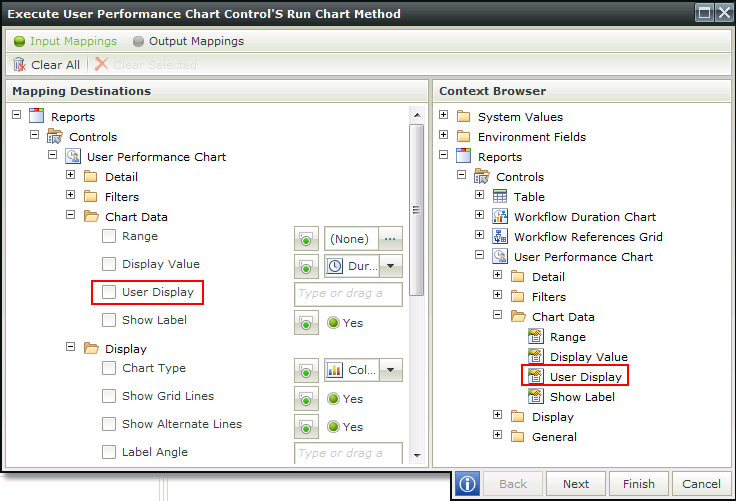

• The following property is available as Input Mapping property and in the Context Browser when using rules for mapping to other controls. This property is additional to those mentioned in the Properties section of this topic, but is only available for interaction with rules:
  User Display - Name of the selected user. The name is displayed without the Folder and Process Name

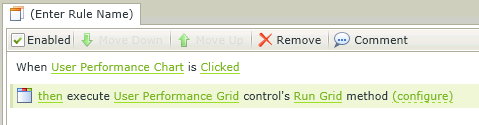

• When clicking on for example the bar, pie slice or column of a User Performance Chart, the user representing that bar can be used to populate a User Performance Grid. The following rule can be configured to effect this in runtime:
  Event: When a control on the View raises an event
  Action: Execute a control's method

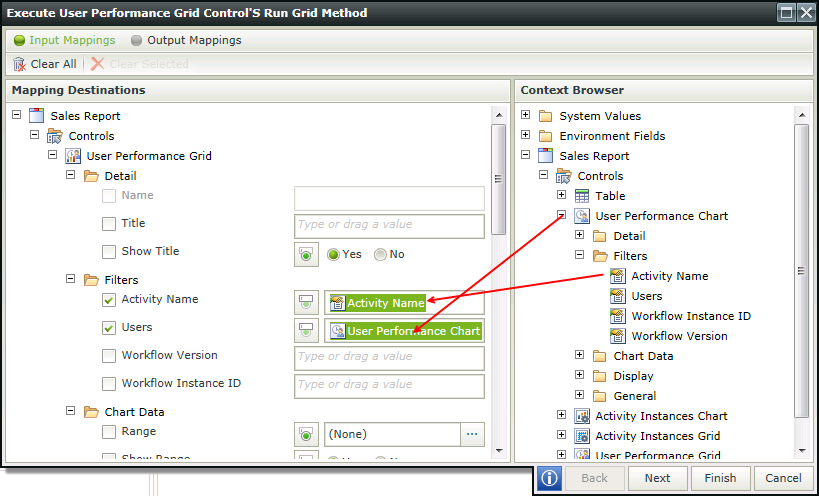

  Configuration: Map the Activity Name of the User Performance Chart to the Activity Name filter and the User Performance Chart to the Users filter of the User Performance Grid



The User Performance Chart control is available in the Reports section of the Controls found in the View Designer.
