List Display Control

1. Create a View
2. Drag the List Display control onto the canvas. The control can be found in the Input section of the Controls found in the View Designer, see the Properties section below
3. Configure the SmartObject under Data Source of the Properties section, see Considerations
4. Configure the rest of the properties as required

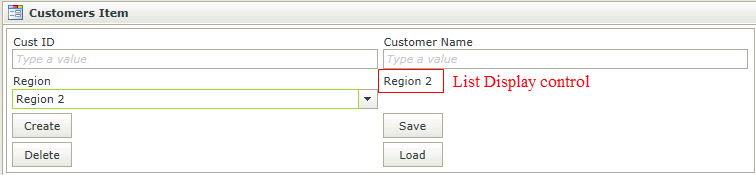

5. Configure a transfer data rule action to pass the value to the List Display control, see Considerations. For example, in the Runtime Example above, a rule has been configured to transfer the value of the Region Drop-Down List control when the control is changed to the List Display control
6. Run the View

1. The List Display has to be bound to a SmartObject with an association
2. To populate a List Display a transfer data action has to be configured to pass the relevant value (should be the associated property) to the List Display

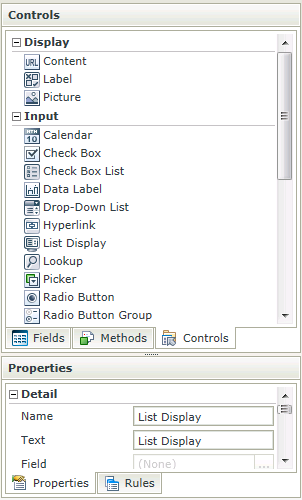

The List Display control is available in the Input section of the Controls found in the View Designer and Form Designer.

Properties	Description	Can be set in runtime using Rules
Name	A unique identifier for the selected control. This property is required	No
Field	A read-only property displaying the field that is bound to the selected control	No
Data Type	A drop-down list containing the types of values that the selected control can accept	No
Tooltip	The value to be displayed when the cursor is hovered over the control during runtime	Yes, see Control Properties Actions for more information
Text	The text to be displayed during runtime.	Yes, see Control Properties Actions for more information
SmartObject	The SmartObject that has been selected	No
Method	The method to be used to populate the control	No
Value	The SmartObject property that will be used as the selected value of the control	No
Lookup SmartObject	An alternate SmartObject to be used as the source of the display values (*optional)	No
Lookup Method	The method to be executed on the lookup SmartObject when retrieving the display values	No
Source Join Property	The SmartObject property on the lookup SmartObject that will be used to join the original SmartObject with the Lookup SmartObject	No
Lookup Join Property	The SmartObject property on the lookup SmartObject that will be used to join the original SmartObject with the Lookup SmartObject	No
Display	The display template of the control, indicating what values are visible when populating	No
Width	Adjust the width of the control (any whole percentage up to 100%, number or pixel value up to 32767px). Note: The Width should be set when using the Wrap Text property.	Yes, see Control Properties Actions for more information
Visible	A Boolean value used to establish whether the control is visible during runtime	Yes, see Control Properties Actions for more information
Enabled	A Boolean value used to establish whether the control is enabled during runtime	Yes, see Control Properties Actions for more information
Wrap Text	Allows the user to set the Width of the control and if the Text of the Label is longer than the label, the Wrap Text property can be selected to allow the overflow to flow to new lines, growing the Label height. If the Width is set and the Text content runs longer than the Label width, the overflow is hidden and an ellipsis is shown. In runtime, if the Tooltip is set and the content is hidden, the Tooltip shows the full text	Yes, see Control Properties Actions for more information
Literal	A Boolean value used to establish whether the text should be read as literal or plain text. In the following example: <div style=”color:blue”>HTML Element</div> If Literal = True, the result will be: HTML Element If Literal = False, the result will be: <div style=”color:blue”>HTML Element</div> The setting is disabled by default. If Literal is not selected, the control does not add any HTML elements to the text. This is useful when you want to render text and controls directly into a page without any additional markup	Yes, see Control Properties Actions for more information
Styles	Opens the Style Builder enabling the user to specify style features like Format, Font, Borders, Padding and Margins. See the Style Builder topic for more information on styling options	No
Conditional Styles	Opens the Conditional Formatting Designer used to design styles that will apply only when certain conditions are met See the Conditional Styles section for more information	No

Configure Data Source

When clicking on the ellipsis next to SmartObject, the Configure Data Source screen opens. Configure the data source to be used

Fields	Description
SmartObject	The SmartObject that has been selected
Method	The method to be used to populate the control
Value	The SmartObject property that will be used as the selected value of the control
Show items from the selected SmartObject	Shows items from the selected SmartObject
Display	The display template of the control, indicating what values are visible when populating
Show items from an associated SmartObject	Shows items from an associated SmartObject
Lookup SmartObject	An alternate SmartObject to be used as the source of the display values (*optional)
Lookup Method	The method to be executed on the lookup SmartObject when retrieving the display values
Source Join Property	The SmartObject property on the original SmartObject that will be used to join the original SmartObject with the Lookup SmartObject
Lookup Join Property	The SmartObject property on the lookup SmartObject that will be used to join the original SmartObject with the Lookup SmartObject
Display	The display template of the control, indicating what values are visible when populating

For-Each looping rule conditions are available for use on List Views and list controls. For more information see the Rule Conditions topic.
