Set Column Width
This article provides information on the following topics:
Note: The Actions Quick Reference provides a complete list of actions that you can print for easy reference.
What is the Set Column Width Action?
The Set Column Width Action changes the width of one or more columns in an Excel workbook.
Creating a Set Column Width Action

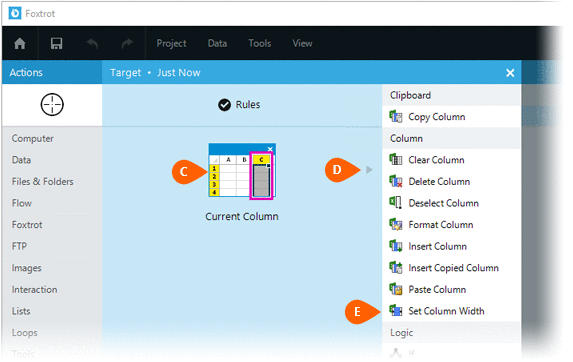

Drag and drop the Selector
onto the Targets
list in the target workbook to display the available target options. Continue
to drag the Selector to the Column option,
expanding the available Column Options
. Choose the desired column
option:
- Current Column - Performs the action to the active column in the workbook
- Exact Column - Performs the action to a column specified by the user
- Column Range - Performs the action
to a defined range of columns
Note: An Exact Column can also be accessed by targeting it directly. For more information about modifying a target column, read the Understanding Excel Targets section of the Understanding Targets article.
If this is the first time the workbook was targeted, Nintex RPA will attempt to create a workbook connection automatically. (For more information about Microsoft Excel workbook connections, read the Excel Connections article.)
A preview of the target
column
is displayed along
with a button that allows you to modify
the column to target
.
(For more information about modifying a target column, read the
Understanding
Excel Targets section of the Understanding
Targets article.)
Select the Set
Column Width Action
from the Actions list.
Select the Rules
to change the Connection for this Action. Both
the Timing
and
Error
settings
for this action may be configured to fine tune the how the Action will
run.
Note: For more information about Timing and Error settings, read the Action Builder article.
Select how the column should be sized
. Selecting the Auto
fit option will cause the column to be sized to accommodate the
tallest value in the row. If the Specific
height option is selected, you will be required to supply a height
in points
Optionally add Notes
to the Action to document any special instructions
or functionality. When the Run Switch
is set to Run, the action
will be executed after clicking OK.
Note: The run switch is set to Run by default. To create or modify this action without executing it, click the slider to change the option to Don't Run. For more information, see Action Builder.
Click the OK
button
to
save the Action.
