Ascii Key

This article provides information on the following topics:

Note: For more information about Timing and Error settings, read the Action Builder article.

What is the Ascii Key Action?

The Ascii Key Action allows you to send a key to the target emulator by specifying the key's Ascii Code.

Creating an Ascii Key Action

Drag and drop the Selector onto the Targets list onto the target emulator to display the available target options. Continue to drag the Selector to the Cursor Position item, releasing your mouse to display the Target Preview. If this is the first time the emulator has been targeted, Nintex RPA will attempt to create an emulator connection automatically. (For more information about Emulator Connections, read the Emulator Connections article.)



Note: An Exact Position can also be accessed by targeting it directly.

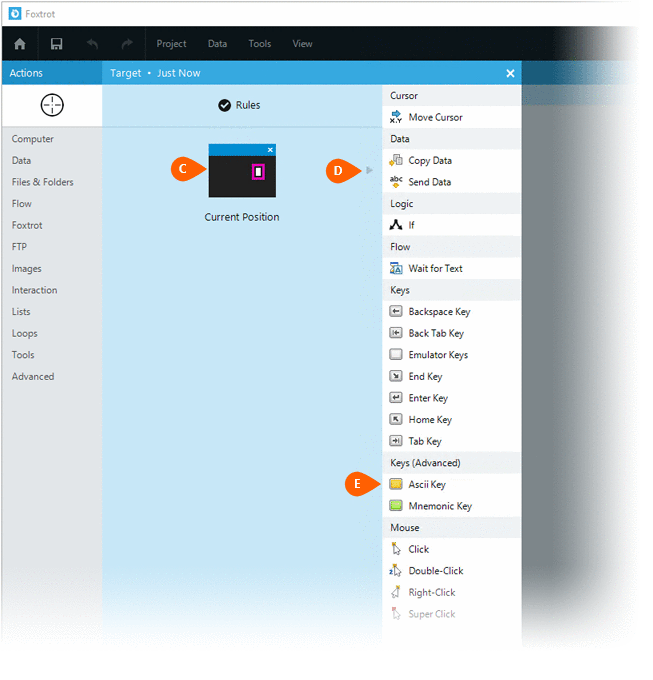

A preview of the target is displayed along with a button that allows you to modify the position to target . Select the Ascii Key Action from the Actions list.

Select the Rules to change the Connection for this Action. Both the Timing  and Error settings for this action may be configured to fine tune the how the Action will run.

Note: For more information about Timing and Error settings, read the Action Builder article.

Enter the desired Ascii Code .

.

Optionally add Notes to the Action to document any special instructions or functionality. When the Run Switchis set to Run, the action will be executed after clicking OK.

Note: For more information about Timing and Error settings, read the Action Builder article.

Click the OK button to save the Action.
