Nintex Workflow 2013 > Workflow Actions
Update document

* This topic applies to Nintex Workflow Enterprise Edition only

* This action requires Microsoft SharePoint Server
This workflow action can be used to update values in multiple 'content controls' within a Word document.

PLEASE NOTE: The Word document must be in the docx format (either Word 2007, Word 2010 or Word 2013).  Files in the format ".doc" cannot save content controls - it converts them to static content.

To use the workflow action:

  • Locate the action in Workflow Actions Toolbox (located on the left hand-side);
    • Click on the Category listings to reveal the actions; OR
    • Search for the action using a keyword.
  • Select the action, drag it onto the design canvas and drop it onto a design pearl.

Alternatively

  • Left-clicking the pearl, mouse-over Insert Action and then the Categories to reveal the actions, click the required action from the list.

To change the settings used by the action:

  • On the action’s title click the down arrow to activate a drop-down
  • Select Configure; OR
  • Double-click the action's icon.

For more information on the other options in the drop-down, please refer to the Getting started with the Nintex Workflow designer.

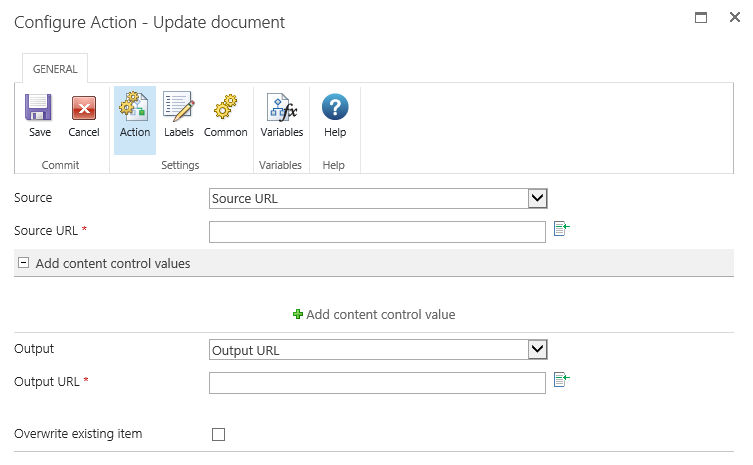

Options within this action

Source

The document to be updated. Select either:

  • The Current item; OR
  • Source URL. In the Source URL field, the full URL including the filename and type will need to be provided. E.g. 'http://mycompany.com/sales/Shared%20Documents/WordDocument.docx'

Add content control values

The 'content controls' to update within the document. Expand the section and select Add content control value to specify a 'content control'.
Note: Be aware of the following when specifying a content control title to update:
  • If there are 'content controls' with the same title within the document, it will update all the 'content controls' with the same title with the value specified.
  • To update a specific 'content control' that has the same title as other 'content controls' within the document, specify the sequence of the 'content control' using an array.
    • E.g. If there are multiple content controls called 'TextControl' within the document and the 2nd 'TextControl' needs to be updated, set the Content Control Title field to 'TextControl[1]'. Arrays always start from 0.

Output

The destination where the document with its updated 'content controls' is to be placed. Select either:
  • The Current item; OR
  • Output URL.
    • In the Output URL field, the full URL including the filename and type will need to be provided. E.g. 'http://mycompany.com/sales/Shared%20Documents/WordDocument.docx'.
    • In the Overwrite existing item checkbox, select to overwrite if a file already exists in the specified Output URL field.
