Nintex Workflow 2013 > Workflow Actions
Set document set approval status

* This action requires Microsoft SharePoint Server

This workflow action is used by the workflow to update the built-in SharePoint approval status of the document set.

To use the workflow action:

  • Locate the action in Workflow Actions Toolbox (located on the left hand-side);
    • Click on the Category listings to reveal the actions; OR
    • Search for the action using a keyword.
  • Select the action, drag it onto the design canvas and drop it onto a design pearl.

Alternatively

  • Left-clicking the pearl, mouse-over Insert Action and then the Categories to reveal the actions, click the required action from the list.

To change the settings used by the action:

  • On the action’s title click the down arrow to activate a drop-down
  • Select Configure; OR
  • Double-click the action's icon.

For more information on the other options in the drop-down, please refer to the Getting started with the Nintex Workflow designer.

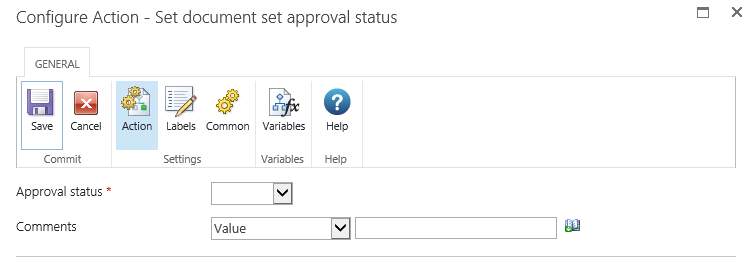

Options in this action

Approval status

This mandatory field determines the status attributed to the document set. Select a value from the drop-down menu.

Comments

The comments entered here will be associated with the update to the status of the document set. To insert values to be evaluated at runtime, use the lookups feature.

List Settings

In order for this workflow action to work properly, the library or list to which the workflow is associated must have Content Approval activated. To activate Content Approval:

  • In the library, select 'Library Settings'.
  • In the 'General Settings' section, click on the 'Versioning settings'.
  • In the 'Content Approval' section, select Yes.
  • When all settings have been configured, click the OK button.
