Using Fields

Creating a model to call and hold content is only the first step to accessing the content in an external service's data object. With some Nintex Apps components, you need to indicate which of the object's fields to display.

How do fields fit into the picture?

Most objects collect records related to a specific data category or topic, for example, business contacts, a company's accounts, technical service cases, a folder of business documents and spreadsheets.
Records are related information about a single entity within that object: a specific company in the list of accounts; an individual contact; a single service request.
Fields are pieces of data that have specific values. Collectively, records contain one—and usually more—fields. A particular contact record, for example, has name, address, and phone fields containing values for that contact. A record for a different contact has the same fields, but the values for name, address, and phone are different.

Field Origin

Some objects have predefined fields—fields that are standard (and in many cases cannot be deleted from the object). Even if a field is predetermined by the database's schema, builders are not required to use it in their Nintex Apps pages.

Custom fields are builder-defined within the object and usually created to address specific data needs. (These fields can be deleted from the external object.)

Field Types

Depending on the external service, the model will have access to the fields types such as the following:

Picklist fields and multi-select picklists

The Salesforce connector [[]]

When using dependent picklists with the Salesforce connector, be sure to include the controlling field in the model.

String fields
Date and datetime fields
Number/integer, and currency fields
Address and phone fields
Text and textarea fields
URL fields
Boolean fields
And many more ...

Specialized fields

In addition to standard fields like those indicated above, Nintex Apps uses the following specialized field types:

Reference fields

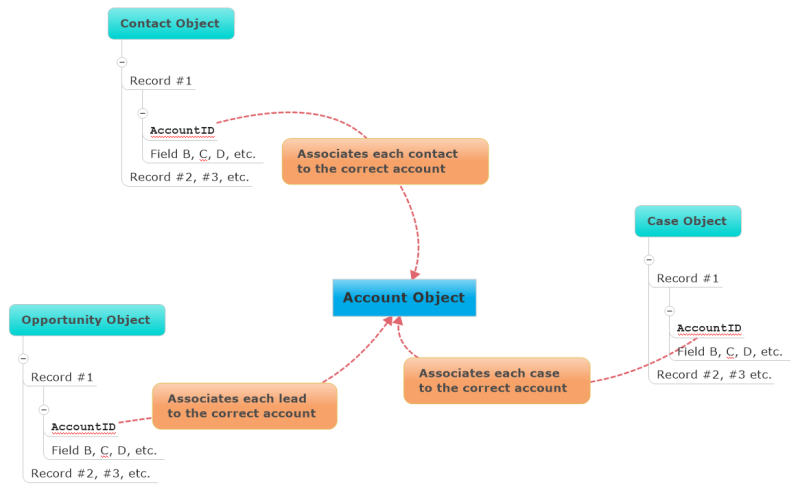

Reference fields (sometimes called "lookup" fields) represent a relationship between different objects. For example, individual contacts, opportunities, or service requests are usually associated with a client company; that company has a record in the account object. So, an accountID field included in a contact, opportunity, or service case object connects those objects to the record for the associated account in the account object. That accountID field the contact object is a reference field: it "references" the account's record in the account object.

Because reference fields provide a list of values from other objects, users can access and select from those values at runtime. For example, a user adding a contact can click the new record's empty Account field and start typing; Nintex Apps autofills from the list of available accounts. ( Users can also click the magnifying glass within the field to see a modal listing all account values, and select the correct account there. )

Reference fields also allow builders to:

Add search capabilities within the field, which allows end users to search for content from within the model.
Use the reference field as a link to the referenced record's detail page.
Create filters to limit the searched and returned content from reference fields.
Use display logic to determine conditions under which the reference field values display.

Template fields

Template fields provide a way to display text or HTML alongside field data. Template fields are "containers" that allow builders to combine two (or more) fields into a single field entity using merge syntax. This saves space, and can also be used to establish relationships.

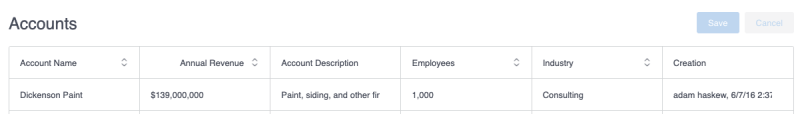

For example, to create a column in a table that displays both the record's creator and the date created (two separate fields) in that single column, add a template field to the table that displays CreatedById and the CreatedDate fields, separated by a comma and a space: {{CreatedById}} , {{CreatedDate}} .

Template fields can be useful for:

consolidating address fields into a single (template) field
incorporating html into display fields

For additional information, see the Text component topic.

Adding template fields

Add template fields to a Table or Form component from the Add fields dropdown on the component.

Note: You can only select fields that are already included in the model.

Then adjust the Template's properties:

Use the field picker on the Template property to select fields to combine within the template. The fields selected display in the property surrounded by double curly brackets {{field selected}} .
- Make any spacing adjustments (add spaces, dashes, or commas).
If desired, modify the field's Label. This will re-name the field label (or the column heading in a Table component).

Template fields in runtime

Users can double-click on a template field to open a popup where they can see the fields the template includes and edit them (if applicable).

If no fields are included in the template, then clicking the field does nothing.

Using HTML in fields

When the Allow HTML property is checked, any HTML markup within the field value will be parsed and rendered per the markup.

This can be useful for introducing paragraph formatting in large text fields, or templates that include combinations of fields using merge syntax, such as a mailing address:

Copy

<p>{{Name}}</p>
<p>{{MailingStreet}}<br>
{{MailingCity}}, {{MailingState}} {{MailingPostalCode}}<br>
{{MailingCountry}}</p>

It's also possible to use this feature for other, more advanced HTML elements.

Important: While using custom HTML can allow for powerful customizations, it can come with risks. Custom HTML is not officially supported and can result in unexpected behaviors. If you do use custom HTML, test your pages thoroughly in a sandbox environment after each Nintex Apps update.

UI-Only Fields

UI-Only fields ("user interface-only") are builder-determined "container" fields for "as-needed" data. These fields work with values that are input by users in runtime, values that result from data queried by the user, or values predetermined by the builder.

Think of UI-Only fields as "temporary": the data in UI-Only fields is not stored in a data object, and if the page is refreshed, the data in a UI-Only field does not persist.

To learn more, see UI-Only Fields and Models.

Field Metadata

Metadata is data about data, information that describes the data itself. Think of field metadata as a kind of "summary" of what the field's data is. Every field has standard metadata properties. Learn more in Field Metadata Overrides.

Properties

Fields

Once fields are added to the Table or Form component, each has a specific set of properties. These properties vary, depending upon the component and field type. Click on the field within the table to reveal and edit its properties.

General tab

Field ID: The API name of the selected field.
Unique ID: ( Available on Form fields ) An alphanumeric ID that dictates the value of the field element's id HTML attribute.

Note: By default this property is empty and should remain empty if using client-side validation within a repeater component. For more information, see client-side validation docs.
Hide label: ( Available on Form components ) When enabled, hides the label at runtime. Useful for compact pages or experiences where the field's label can be inferred by the user.

Note: Screen readers and other assistive technology can still access and read the field's label when this property is enabled.
Label position: ( Available on Form components for Checkbox and Switch displays ) Determines where the label appears in relation to the input. Available options:
- Above input
- Right of input
Note: This property cannot be set if the field's Form component Label position (located in Display > Fields and sections ) is set to Left.
Label/Custom label: The name for the field (or template field). Replaces default field label with custom text. Use the field picker to select a field to use as the column label.
- Within the Table component, can also contain rendered HTML if Allow HTML in title and column header labels is enabled.
Note: This feature lets you choose another field's name and re-label the column with it, to shorten or clarify the column's identity or purpose for users.
Show inline help ( Available on Form components ): Determines how Nintex Apps displays any help text associated with this field, whether through its metadata or a field metadata override.
- As help icon tooltip: When selected, a help icon appears beside the field's label. Hovering over the icon causes the tooltip to appear and display the help text.
  - Tooltip position: Determines where the tooltip containing the help text appears in relation to the icon/field.

    Note: Nintex Apps attempts to render the help text in the selected position, but if this is not possible due to height/width constraints at runtime, the help text may render in a different position.
  - Tooltip style: Determines which style variant to use when the tooltip is displayed.
  - Tooltip compact size: Determines whether to use the options specified in the Compact section of the chosen tooltip style variant, which have smaller line height, font, and padding settings by default.
- As underline tooltip: When selected, the field's label is underlined to indicate a tooltip is available. Hovering over any part of the label causes the tooltip to appear and display the help text.
  - Tooltip position: Determines where the tooltip containing the help text appears in relation to the icon/field.

    Note: Nintex Apps attempts to render the help text in the selected position, but if this is not possible due to height/width constraints at runtime, the help text may render in a different position.
  - Tooltip style: Determines which style variant to use when the tooltip is displayed.
  - Tooltip compact size: Determines whether to use the options specified in the Compact section of the chosen tooltip style variant, which have smaller line height, font, and padding settings by default.
- Below label: When selected, help text appears directly beneath the field label. The help text is always present and can't be dismissed.
- Hidden: No help text is displayed.
Placeholder: Text or prompts that appear inside editable sections within the component. Commonly used to provide instruction for more complex field requirements, this field is compatible with merge syntax.
Read-only: If checked, text fields are read only and cannot be edited by users. This setting does not persist across Nintex Apps pages.

Note: Nintex Apps automatically respects the validation rules and field-level security from your connection.
Required: If checked, text input is required.This setting does not persist across Nintex Apps pages and will not override existing data model settings within the connection.

Note: Nintex Apps automatically respects the validation rules and field-level security from your connection.
Clip heading text: If checked, if a column's heading text exceeds the size of the column, the text is truncated (with ellipses indicating additional content.)
Horizontal alignment: Adjusts alignment of text or value within a field to left ( default ) or right.
Display as: Determines how values are entered in Edit mode.
- Text ( String fields ): Renders the field as text.
- Password ( String fields ): Renders the field as a password, with the content hidden by asterisks.
- Picklist: ( Reference fields ) Renders the reference field options as a picklist: a dropdown menu of selectable options.
- Radio: ( Picklists fields ) Renders the field as radio buttons.

  Note: For multi-select picklists, Nintex Apps renders a multi-select list of checkboxes instead.
- Button Group: ( Picklist fields ) Renders the field as a set of buttons.
- Combobox ( Picklist fields ): Renders the picklist field options as a combobox, a text box in which user entry triggers a dropdown menu. As users type, the menu narrows available options. Users can also access the dropdown using the combobox's menu selector ( chevron-small-down ).
- Combobox ( Picklist fields ): Renders the picklist field options as a combobox, a text box in which user entry triggers a dropdown menu. As users type, the menu narrows available options. Users can also access the dropdown using the combobox's menu selector ( chevron-small-down ).
  - Enable autocomplete: When enabled, available options are filtered and suggested to the user based on what they've entered in the field. Selecting an option then places that value in the combobox.

    Nintex Apps searches for the user's input across the entire value, so values do not have to match exactly. For example, inputting Example Value would match First Example Value and Different Example Value
  - Enable autocomplete: When enabled, available options are filtered and suggested to the user based on what they've entered in the field. Selecting an option then places that value in the combobox.

    Nintex Apps searches for the user's input across the entire value, so values do not have to match exactly. For example, inputting Example Value would match First Example Value and Different Example Value
- Date ( Date-time fields ): Renders the field as a date.
- Datetime ( Date fields ): Renders the field as a datetime.
- Autocomplete: ( Reference fields ) The default for reference fields, this renderer tries to autocomplete entries based on the options available for this field.
- Checkbox ( Boolean fields ): Renders the field as a checkbox.
- Switch ( Boolean fields ): Renders the field as a toggle switch.
- Custom:
  - Display method: Sets a custom display method defined in JS snippets.
  Numeric field types have different field renderer options:
- Number: Renders the field as a number.
- Slider: Allows the user to enter the value as a position on a slider.
  - Minimum value: The starting numerical range for the slider.
  - Maximum value: The ending numerical range for the slider
  - Step: The increments used in the slider.
- Stepper: Allows the user to enter the value via an entry box with "+" and "-" handles to increment or decrement the numeric value
  - Minimum value: The starting numerical range for the stepper.
  - Maximum value: The ending numerical range for the stepper
  - Step: The increments used in the stepper.
Add "None" option: Includes a null value in the list.
- None Option Label: Sets the text for the "None" option.
Limit # values to: For reference fields rendered as picklists, restricts the number of allowed values on the picklist.

Note: The default behavior displays all values for the field. However, if the field includes a large number of distinct values, the page may need to query a lot of data, resulting in a slow page load. Limiting the number of picklist options reduces the query and load time.
Allow user to hide/show?: Permits the user to show or hide columns using the Table Setting modal, and determines whether the selected column is shown by default.
- Yes, and show the field by default
- Yes, and hide the field by default
- No
Note: This property is available when Allow column hiding is checked in the Display tab's Configuration section (in Table properties).
Column summaries: (Number fields) Add summaries to the bottom of each column: Sum, Average, Min, Max, or Median. Enter the value as a:
Minimum value: The starting numerical range for the stepper.
Maximum value: The ending numerical range for the stepper
Step: The increments used in the stepper.
# of decimal places: (Currency and measurement fields) Choose the number of decimal places. Options: 0-8 or use the field's metadata to determine the number of decimal places.
Show length counter (Textarea fields): When the field is in Edit mode, it displays a character countdown ("25/ 128") indicating the number of characters used and how many total characters are allowed.
Note:
- The counter is enabled by default for standard textarea fields.
- The counter is not available for Salesforce rich text area fields.

Template: ( Template fields ) Specifies which fields the template field should include by either selecting them from the field picker, manually entering their merge variables, or using custom text.
Sort field: ( Template fields ) When sorting is enabled for the table, specifies which of the template's fields to use for sorting.

Search tab

(For reference fields)

The Search tab is available for reference fields on the Form and on the Table component when the Table or Form is in Edit mode. Search allows end users to search for content from within the model (or from a selected model) when editing a reference field.
