Copy List Item Step

Use the Copy List Item step to copy a list item from one a SharePoint to another. The list item is copied to a list in a SharePoint site where the K2 for SharePoint app is registered. You can, for example, use the Copy List Item step in a business application to duplicate list items between SharePoint Lists used by different departments, such as one that tracks a purchase order in lists used by the Procurement and Accounting departments.

You need to first identify the List Item you need to copy. To do this:

Use the Pick List Item option to select a previously created List Item reference
Use the Find List Items option to browse to a specific list and filter for desired items

To use the SharePoint steps in K2 Workflow Designer, you must have SharePoint installed in your environment. To see the version of SharePoint that K2 supports, view the Compatibility and Support Matrix.

Drag the Copy List Item step from the SharePoint category, Favorites bar, or the Recent category onto the canvas.

Example of a Copy List Item step in a workflow

How to add a Copy List Item step

From the Toolbox click the SharePoint category, the Document category, and then drag the Copy List Item step onto the canvas.

Error Console

Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.
Select the Copy List Item tab. Use this tab to configure the step's properties.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Pick List Item	Use this to pick a list item reference. The drop down menu contains a list of workflow list of available list item references within this workflow.	Select the Pick List radio button to enable this option. Click the drop down menu and select the reference name.
Find List Item	Use this to browse to the list containing the desired list item.	Click the Find List radio button to enable this option. Click the drop down menu and select Browse to browse to a specific site.
Filters	The filter enables you to specify parameters and filters to return data. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains. Applying filters is optional. Parameters are sometimes required and depend on the SmartObject method.	Click the Add Filter link to add filters. Select filter values from the drop-down menu. Click the operator button to select the operator. Click the Add button to add additional filter properties Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. To delete properties, select them and click the Trash bin.
Destination List
Pick List	Use this either select a list reference (created previously in this workflow) or browse to a specific list.	Select the Pick List Item radio button to enable this option. Click the drop down menu and select the name.
Folder	Use this to specify a destination folder where the List Item is copied to. Note: When a SmartObject load method property is used, an input property is required for the correct information to load. Note: If the provided Folder value exists in the destination library, the document is copied to that folder. If the provided Folder value does not exist in the destination library, a new folder with this name is created and the document copied to that folder. In order to interact with sub folders, include the " \ " (back slash) character. Example: You have a list called Regions, a folder called North America with sub folder called United States. To place the document in the United States sub folder, use the following value North America\United States.	Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.
Properties	Use this to set the filters to determine the list item to be updated, and add field details to update the it with. Note that when a SmartObject Load method property is used, an input property is required for the correct data to load.	Click the Add button to add a property. Click the drop down to select the property. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. To delete properties, select them and click the Trash bin.
Use List Item Later	Use this to create a reference to use from other steps within the workflow. A reference can only be created if a reference is NOT consumed.	Click the Create link to create a reference. Click the Edit link to edit the reference name. If you edited the reference name and want to reset it, click the Reset Name link.

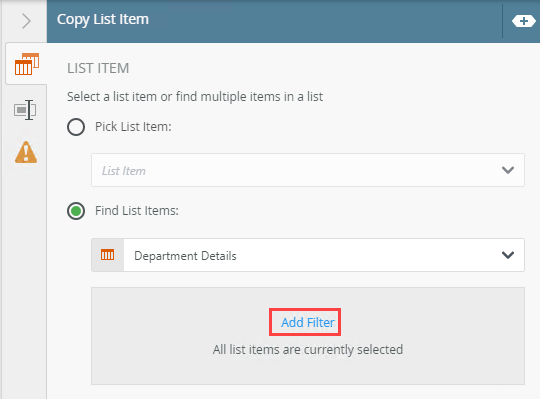

From the List Item section select either Pick List Item (select a referred list item from the drop down menu) or Find List Items (browse to required list). For this example, select Find List Items. From the drop-down menu select Browse and navigate to a list to update the list item.
Select the site and list and click OK.

For more information about the different browse states and errors, see the Browse State topic.

For more information on how to use the breadcrumb bar, see the How to use the Breadcrumb topic.

Click the Add Filter link to filter for specified values in one or more fields to identify the list.

Applying filters is optional. Parameters depend on the SmartObject method and are sometimes required. The filter may have a positive impact on performance by limiting the number of records returned. When you create a filter, only records that match the filter criteria are returned.

Select a property from the drop down menu. Select an operator to define the filter. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

For more information on how to use Smartfields see the Smartfield Composer topic. Added filters can be grouped together to form parameters. To group parameters, click the AND button.

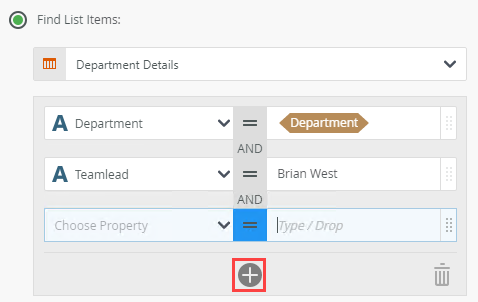

In the Filters section, click the Add button to add a property.

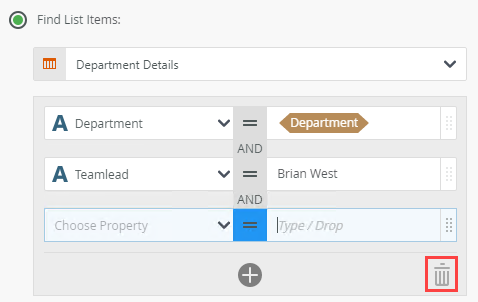

To delete properties, select them and click the Trash bin.
From the Destination List section, select a list to use as the destination for the copied list item. Select a referenced list from the drop down or browse to one using the Browse option. This selection is required.
Specify the folder, in the list, where the list item is copied. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.
In the Properties section, add fields and values to update with. Click the Add button.
Select a property from the drop down menu. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.
To create a reference click Create. Reuse this reference in the current step or from another step in your workflow.
To edit the auto-generated reference title, click Edit.
To locate the added reference, expand the Context Browser, select Fields and then expand the Reference section.
With the step selected, select the Properties tab.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Title / Name	By default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.	Enter a value into the Title field.
Reset link	Use the link to reset any changes to the title.	Click the Reset link to reset the Title field to default value.
Show Label	Allows you to see the step label on the canvas. The label shows the value of the title.	Check the check box to display step label on the canvas.
Description	Allows you to add a detailed description for the step.	Enter a value into the Description field.
Notes	Allows you to add additional notes for the step.	Enter a value into the Notes field.

Click the Errors tab.

Different types of exceptions can occur on a step, such as:

Type	Description
Known exceptions	Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
Unhandled exceptions	Any unknown runtime exceptions.

The tab contains the following known exception:

Exception	Explanation	How to Use
Continue on error	When this option is selected the workflow is not in an error state, but merely continues executing the next step.	Check the check box to continue the workflow.

The tab contains the following unhandled exception:

Exception	Explanation	How to Use
Log Exception	Logs the exception to the error log.	Check the box to log the exception.

Your changes are automatically saved.
