SharePoint Hyperlink Control

The SharePoint Hyperlink control allows you to display a hyperlink or picture. The control is specifically for SharePoint linked data. In addition you can structure your Service Object data to work with it. This allows you to have various display types on the same control and you can display your link as an image. You can configure the control to display as one of the following types:

  1. Create a view.

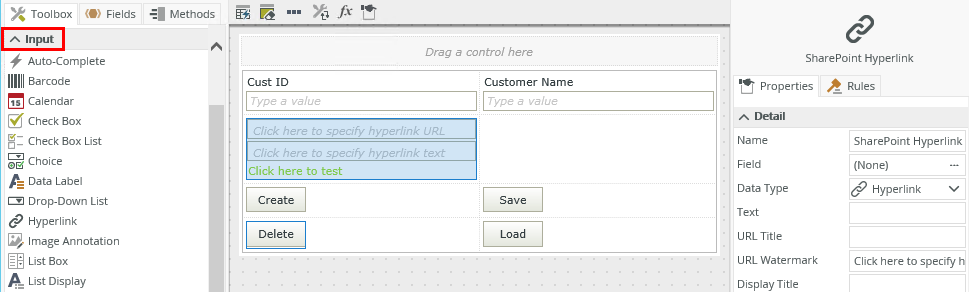

  2. Drag the control onto the canvas. You can find the control in the Input section of the Toolbox.
  3. Configure the rest of the properties as necessary.

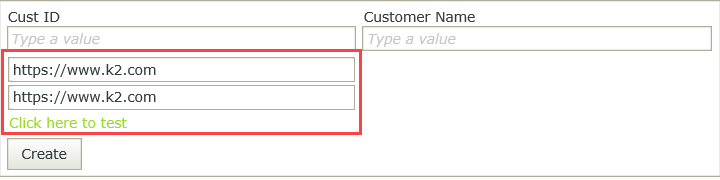

  4. Run the view.

You can find the control in the Input section of the Toolbox.

Property Description Can be set in runtime using Rules
Detail
Name A unique identifier for the control. This property is required and defaults to the name of the control. Yes, see Control Properties Actions for more information.
Field The field bound to the control. See the Binding Fields to Controls section for more information on how to use it. No
Data Type A drop-down list containing the types of values that the control can accept. No
Text Type text for the description of the URL. Yes, see Control Properties Actions for more information.
URL Title Adds a label for the URL (name of the site). Yes, see Control Properties Actions for more information.
URL Watermark Specify the text to display when the URL is empty. Yes, see Control Properties Actions for more information.
Display Title Adds a label (display header) for the description (Text property). Yes, see Control Properties Actions for more information.
Display Watermark Specify the text to display when the description (Text property) is empty. Yes, see Control Properties Actions for more information.
Test Hyperlink Text Type text to display in the test link. Yes, see Control Properties Actions for more information.
Settings
URL Type a URL containing a valid protocol for example https://www.bing.com. Yes, see Control Properties Actions for more information.
Show Preview Shows a preview of the picture in design time. Use this property with the Picture Display Type No
Display
Display Type
  • Input: Allows you to type a description and web address for the URL in runtime
  • Hyperlink: Enables a read-only display. The control displays the Text property as a hyperlink
  • Picture: Renders the URL as an image
 Yes, see Control Properties Actions for more information.
Delimiter Specify the delimiter to use when you save values. The property defaults to "," (comma). Yes, see Control Properties Actions for more information.
General
Height Adjusts the height of the control. You can enter any whole number or pixel value (maximum of 32767px). When set to zero, it's sized to fit the content of the page. Yes, see Control Properties Actions for more information.
Width Adjusts the width of the control. You can enter any whole percentage up to 100%, whole number or pixel value to a maximum of 32767px. Type the dimension. Yes, see Control Properties Actions for more information.
Tab Index Defines a sequence that users follow when they use the Tab key to navigate through a page at runtime. Yes, see Control Properties Actions for more information.
Visible Shows or hides the control. Yes, see Control Properties Actions for more information.
Enabled Enables or disables the control. If the control is disabled, you won't be able to use it. Yes, see Control Properties Actions for more information.
Read-Only Shows the control as read-only. Yes, see Control Properties Actions for more information.
Expression Opens the Expression Builder to configure expressions to populate the control with dynamically calculated values. Yes, see Control Properties Actions for more information.
Styles Opens the Style Builder allowing you to specify style features like format, font, borders, padding and margins. See the Style Builder topic for more information on styling options. No
Conditional Styles Opens the Conditional Formatting page. You can design styles that apply only when certain conditions are met. See the Conditional Styles section for more information. Click the ellipsis to open the Conditional Formatting page. No

The control interacts with other controls through rules. When you bind properties between different controls, you can use the data to populate properties or set values. Use the following examples for when to use the control with other controls through rules:

  • Set a control’s properties: You can configure the settable properties of the control with this action
  • Show/Hide: The Visible property allows you to show or hide the control through rules
  • Enable/Disable: The Enabled property allows you to enable or disable the control through rules
  • Data Transfer: You can transfer data from items listed in the context browser to the control

The following events are available on the control:
Rule Events:

  • When [control] is Active: You can execute a rule condition or action when you use the Picture Display Type property for example and hover (mouse over) over the control.
  • When [control] is Changed: This event executes when the control is set to a new value that is different from the previous value. You can use this event to trigger actions when the control is changed, for example when the value is changed, then set the properties of another control.
  • When [control] is Clicked: You can execute a rule condition or action when the control is clicked. If you configure this event, the cursor also changes to a hand (pointer) when the control is clicked.
  • When [control] is Initializing: While you can see this event in the Rule Designer, it has been deprecated. Instead use the When the View/Form Initialize event.
  • When [control] is Not Active: You can execute a rule condition or action when you use the Picture Display Type property for example and the cursor moves from within the picture to its container (mouse out).
