Events

Events define when something happens on a view or form, such as when someone clicks a button or data is changed. Select the template or event you want to use in your rule definition from the Events tab. Items that are underlined are configured and items that have a dotted line still need configuration.

Templates

Templates contain common events (the when) and actions (the what). You can use these templates to quickly build your rule definition. Use the following tables to learn more about rule events.

Type Rule Definition Example
View Execute a method on the View when a control raises an event When you click a Refresh button you execute the Get List method
View Open a subview when a control raises an event When you click a New button you open a subview
View Open a subform when a control raises an event When you click a New button you open a subform
View Navigate to another Form when a control raises an event When you click a Next button you open a different form
View Save the changes of the editable list when a control raises an event When you click the Save button you save all the changes made to the editable list view
View Save the values of a multi-select control when a control raises an event When you click the Save button you save all the checked or unchecked items
View Reload a list control when the View completes an action After you add a new record, you reload the associated drop down control
View Close a subview or subform and execute a method on the View when a subview executes a method You close a subview or subform after you create a new employee, and then refresh the employee list
Form Execute a method on a View when the Form completes an action After you load a form, you can retrieve a list employees using the Get List method
Form Execute a method on a View when a View completes an action After you create a new employee record, you refresh the employee list view
Form Update master and detail values when a control raises an event When you click the Save button you save all the values that were added, changed or removed
Form Navigate to another Form when a View completes an action
  • After you submit a new item, you open another form
  • After you edit an item, you open another form to view the details

Events

Use events to define the when something happens on a view or form to start your rule definition.

Type Rule Definition Example
Server Events See Server Rules for a list of server events See Server Rules for examples
View Events

When the view executes one of the following events:

  • Clear
  • Collapse
  • Create
  • Delete
  • Expand
  • In Error
  • Initialize
  • Initialized
  • Load
  • Save
 For more information about configuring these events, see View Events
Control Events

When the control executes one of the following events:

  • Clicked
  • Changed
  • Initializing
 For more information about configuring these events, see Control Events

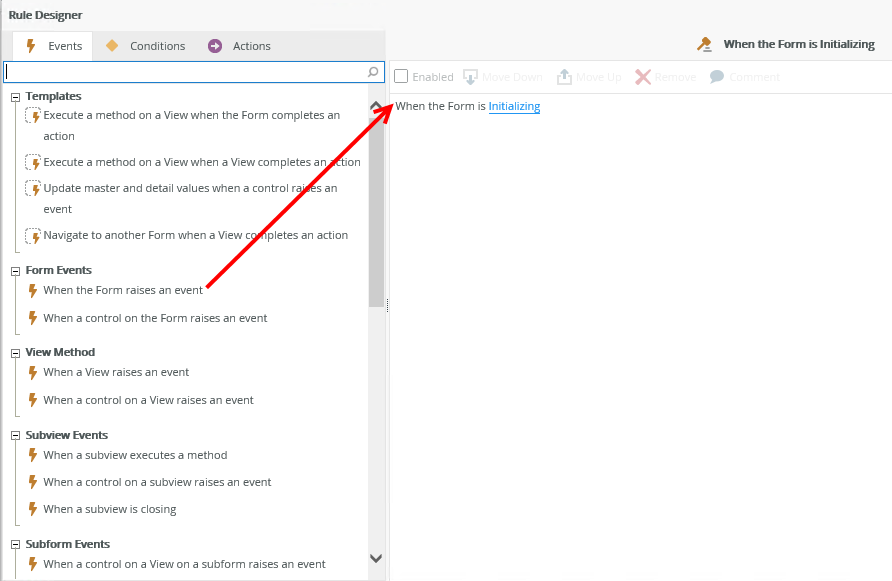

Form Events

When the form raises one of the following events:

  • In Error
  • Initialized
  • Initializing
  • Submitting
 For more information about configuring these events, see Form Events
Form Events When a control on the Form raises an event When you click a button on a form. See Using Tab navigation to optimize performance. For more information about configuring these events, see Control Events
View Method When a view raises one of the following events:
  • Clear
  • Collapse
  • Create
  • Delete
  • Expand
  • In Error
  • Initialize
  • Initialized
  • Load
  • Save
 For more information about configuring these events, see View Events
View Method When a control on a View raises an event
  • When you click a button on a view
  • When you change a drop down list item on a view

    • For more information about configuring these events, see Control Events
Subview Events When a control on a subview raises an event When you click a button on a dialog. For more information about configuring these events, see Control Events
Subview Events When a subview executes a method When you create a record on a view on a form in a subform. For more information about configuring these events, see View Events
Subview Events When a subview is closing When you close a subform
Subform Events When a control on a View on a subform raises an event When you click a Cancel button on a view that you opened in a subform. For more information about configuring these events, see Control Events
Subform Events When a control on a subform raises an event When you click a button on a subform. For more information about configuring these events, see Control Events
Subform Events When a View on a subform executes a method When you load an employee record. For more information about configuring these events, see View Events
Subform Events When a subform is closing When the form that you opened in a subform is closing
Subform Events When a subform executes a method When you create a record on a form that is opened in a subform. For more information about configuring these events, see Form Events
Parameter Events When a View parameter raises an event When a view parameter is changed. See the How to Use Parameter Events And Conditions topic.
Parameter Events When a Form parameter raises an event When a form parameter is changed
Parameter Events When a subview parameter raises an event When a subview parameter is changed
Parameter Events When a subform parameter raises an event When a subform parameter is changed
Parameter Events When a View parameter on a subform raises an event When a view parameter on a subform is changed
Workflow Events When the Workflow View is being submitted Before the workflow action is submitted. Use this event to ensure the form is saved and the worklist item is actioned*
Workflow Events When the Workflow View on a View is being submitted Before the workflow action is submitted on a view. Use this event to ensure the form is saved and the worklist item is actioned*
Workflow Events

When the Workflow View on a subview is being submitted

 Before the workflow action is submitted on a subview. Use this event to ensure the form is saved and the worklist item is actioned*
Workflow Events

When the Workflow View on a subform is being submitted

 Before the workflow action is submitted on a subform. Use this event to ensure the form is saved and the worklist item is actioned*
Workflow Events

When the Workflow View on a View on a subform is being submitted

 Before the workflow action is submitted on a view on a subform. Use this event to ensure the form is saved and the worklist item is actioned*
Workflow Events After the workflow action was submitted After a workflow item is approved.
Workflow Events After the workflow action on a View was submitted After a workflow item on a view is approved.
Workflow Events

After the workflow action on a subview was submitted

After a workflow item on a subview is approved.

Workflow Events

After the workflow action on a subform was submitted

After a workflow item on a subform is approved.

Workflow Events

After the workflow action on a View on a subform was submitted

After a workflow item on a view on a subform is approved.

*Some conditions, like the current workflow activity being the same as the task actioned, are automatically added during workflow integration.

You can use the following form events with When the Form raises an event:

  • In Error - You can execute a rule condition or action when the form is in error, see How to use the error event and method
  • Initialized - You can execute a rule condition or action after the form has loaded, for example expand a view. The Initialized event always executes after the Initializing event regardless if there are user actions configured on Initializing; the Initializing event is disabled, or the Initialized event is called from another rule. See How To: Use the Post Initialize Event
  • Initializing - You can execute a rule condition or action when the form is loading, for example on a List view, execute the List refresh method. See How To: Use the Post Initialize Event for information about the difference in using the Initialized and Initializing events

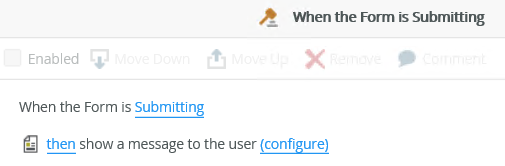

  • Submitting - You can execute a rule condition or action when the form is submitting, see How To: Configure Forms with Draft Functionality, Drafts in Android and Building SmartForms for Mobile Devices for more information on saving a form as a draft in K2 Mobile before submitting it. When you use drafts in K2 Mobile, you must use this rule event with the execute the Submitting Form method action to move the form from the Drafts folder to the Outbox folder when you submit the form. The following images show an example of how you can create these rules:

You can use the following view methods with the When the View raises an event and When the View executes a method events:

  • Clear - You can execute a rule condition or action when the view is cleared, for example set the focus to a control, see How To: Use the Focus Control Method
  • Collapse - You can execute a rule condition or action when the view is collapsed, for example set the focus to another control or tab, see How To: Use the Focus Control Method and How To collapse and expand view events and methods
  • Expand - You can execute a rule condition or action when the view is expanded, for example on a List view, execute the List refresh method, see How To collapse and expand view events and methods
  • In Error - You can execute a rule condition or action when the view is in error, see How to use the error event and method
  • Initialize - You can execute a rule condition or action when the view is loading, for example on a List view, execute the List refresh method
  • Initialized - You can execute a rule condition or action after the view has loaded, for example set the focus to a control, see How To: Use the Focus Control Method. The Initialized event always executes after the Initialize event regardless if there are user actions configured on Initialize; the Initialize event is disabled, or the Initialized event is called from another rule

The following view methods are available when you use a SmartBox SmartObject on the view or form. If you use another SmartObject, these methods may differ:

  • Create - You can execute a rule condition or action when the view executes the Create method, for example on a form, if the Item view executes the Create method, then execute the Get List method on the List view
  • Delete - You can execute a rule condition or action when the view executes the Delete method, for example to get confirmation from user
  • Load - You can execute a rule condition or action when the view executes the Load method, for example to check for errors using the error handling condition and then show a message with error details, see How to use the error event and method
  • Save - You can execute a rule condition or action when the view executes the Save method, for example on a form, if the Item view executes the Save method, then execute the Get List method on the List view

You can use the following control events with When a control raises an event:

  • Clicked - You can execute a rule condition or action when a control is clicked, see How To: Add Lookup Information to a Form for an example.
  • Changed - You can execute a rule condition or action when a control is changed, for example when Country Drop-Down list is changed, then populate City Drop-Down list with data. This event executes when the control is set to a new value that is different from the previous value.
  • Initializing - While you can see this event in the Rule Designer, it has been deprecated. Instead use the When the View/Form Initialize event.
Some controls contain events and methods specific to the control, such as the Picker control's resolving event and resolve method. For more information about controls see List of Controls for links to the controls and then go to the Rules, Events and Actions section of the topic to see the events, conditions and methods.

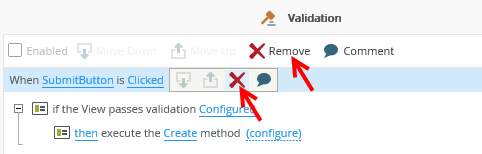

You can delete an existing event by clicking on the red cross next to the event or by using the Remove button on the toolbar.

Then navigate to the Events tab to select a new event to complete your rule. Alternatively, you can save the rule if you want to add an event at a later stage. The rule shows as unbound when you filter the rules and is not active until you edit the rule and configure an event.
