Data Label Control

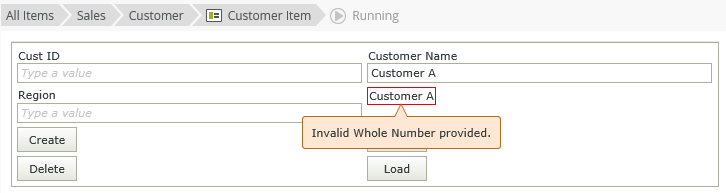

The Data Label control allows you to display dynamic labels and headers, and includes the ability to use HTML code. Use the control to perform validation according to patterns. Patterns are regular expressions that you can use to enforce validation on controls.

  1. Create a view.

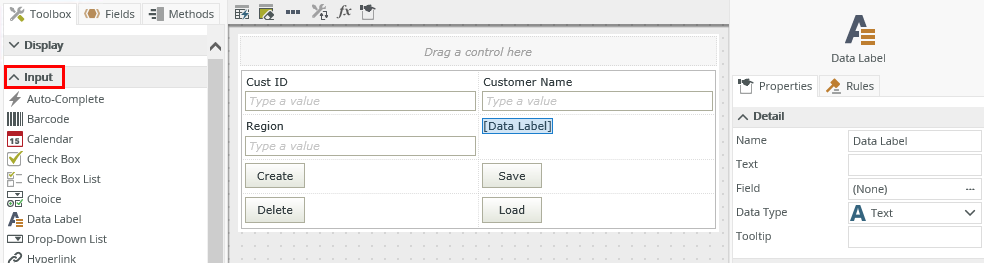

  2. Drag the control onto the canvas. You can find the control in the Input section of the Toolbox.
  3. Configure a validation pattern if necessary.
  4. Configure the rest of the properties as necessary.
  5. Run the view.

You can use this control to display a time zone. For more information, see the topic Calendar > Configuring a Time Zone.

You can find the control in the Input section of the Toolbox.

Properties Description Can be set in runtime using rules?
Detail
Name A unique identifier for the selected control. This property is required and defaults to the name of the control. No
Text Specify text to use when displaying the control at runtime, for example johndoe@companyname.com if an email address is required. No
Field The field bound to the control. See the Binding Fields to Controls section for more information on how to use it. No
Data Type A drop-down list containing the types of values that the control can accept. No
Tooltip The value to display when you hover over the control. Yes, see Control Properties Actions for more information.
General
Width

Adjusts the width of the control. You can enter any whole percentage up to 100%, whole number or pixel value to a maximum of 32767px. Type the dimension.

Note: You must set this value if you use the Wrap Text property.

 Yes, see Control Properties Actions for more information.
Visible Shows or hides the control. Yes, see Control Properties Actions for more information.
Enabled Enables or disables the control. Yes, see Control Properties Actions for more information.
Wrap Text Allows you to set the width of the control. If the text of the label is longer than the label, you can select the Wrap Text property to allow the overflow to flow to new lines, growing the label height. If the width is set and the text content runs longer than the label width, the overflow is hidden and an ellipsis shows. In runtime, if the Tooltip is set and the content is hidden, the tooltip shows the full text. Yes, see Control Properties Actions for more information.
Literal Select how the text should be read, as literal or plain text. When you select this property, the Prevent XSS property is enabled and automatically selected. See below for using Literal and Prevent XSS. In the following example:
<div style=”color:blue” onmouseover=alert(1)>HTML Element</div>

If you select Literal and deselect Prevent XSS, the result is shown here. At runtime you see a blue HTML Element and, when hovered over, the text opens an alert showing "1".
<div style=”color:blue” onmouseover=alert(1)>HTML Element</div>

If you select Literal and Prevent XSS, the result is shown below. At runtime you see a blue HTML Element.
<div style=”color:blue”>HTML Element</div>

The Literal property defaults to plain text. If you don't select Literal, the control does not add any HTML elements to the text. This is useful when you want to render text and controls directly into a page without additional markup.		 Yes, see Control Properties Actions for more information.
Prevent XSS

Sanitizes the value of the control's HTML to strip out potentially malicious HTML and JavaScript that can cause cross-site scripting (XSS). The sanitization happens when values are transferred to and from the control. If you want to allow more advanced HTML and JavaScript in the control, deselect this option.

Use Prevent XSS if you want people to input values containing HTML for styling purposes, for example, or where the value is a combination of HTML and direct input using an expression, but no JavaScript or malicious HTML is allowed. This reduces the need for complicated expressions that use the HTMLEncode function to encode direct input values to make it safe from XSS.

However, if the data label needs to execute custom script, you must deselect Prevent XSS and hard code the value of the data label, or add additional logic to make sure XSS is not possible through manual input.

Cross-site scripting (XSS) is a type of computer security vulnerability sometimes found in web applications. XSS enables attackers to inject client-side scripts into web pages. Cross-site scripting vulnerability may be used by attackers to bypass access controls such as the same-origin policy.

Prevent XSS is dependent on Literal. When you select Literal, Prevent XSS is enabled and selected. See Literal for an example of using Literal and Prevent XSS. You can deselect Prevent XSS if you don't want to sanitize the value of the control's HTML.

No
Expression Opens the Expression Builder to configure expressions to populate the control with dynamically calculated values. Yes, see Control Properties Actions for more information.
Styles Opens the Style Builder allowing you to specify style features like format, font, borders, padding and margins. See the Style Builder topic for more information on styling options. No
Conditional Styles Opens the Conditional Formatting page. You can design styles that apply only when certain conditions are met. See the Conditional Styles section for more information. Click the ellipsis to open the Conditional Formatting page. No
