Roles

Use the Roles node to create, edit, delete or save Roles. Roles are essentially groups defined in Nintex Automation, and are most often used for assigning tasks or setting security. For example, perhaps it is not possible to define groups in Active Directory (AD) for workflow task allocation, because the AD administrators are unwilling to define groups used only by applications. Or perhaps you to create a group that contains users authenticated through different authentication mechanisms, in which case you cannot define the group in AD.

As an administrator, you define roles using the Management site and they are stored on your server. You can modify the Role membership without needing to modify the design of workflows or authorization rules that use those roles. Roles can contain one or more users and groups, from multiple user managers.

For more information on using Roles in workflows, see the Recipients topic. For more information on using Roles for security, see Role Authorization and Authorization Overview.

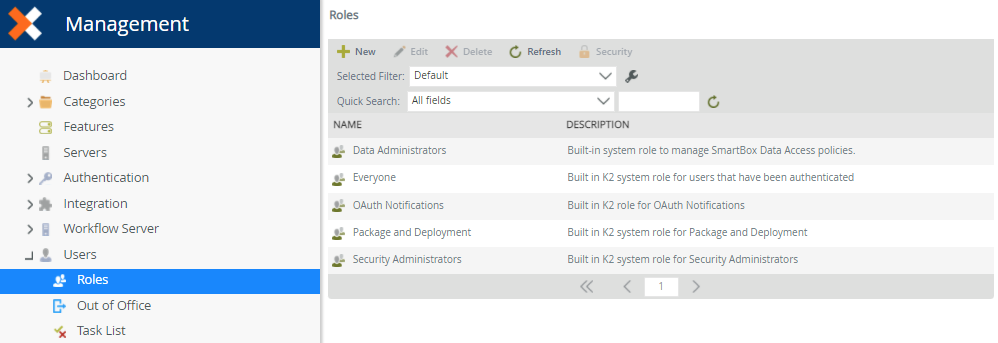

The Roles screen

See the following resources for more information:

Follow these steps to add Roles:

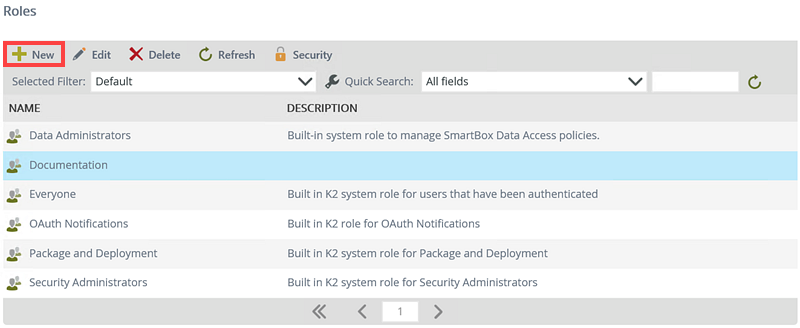

  1. Click New from the Roles view.

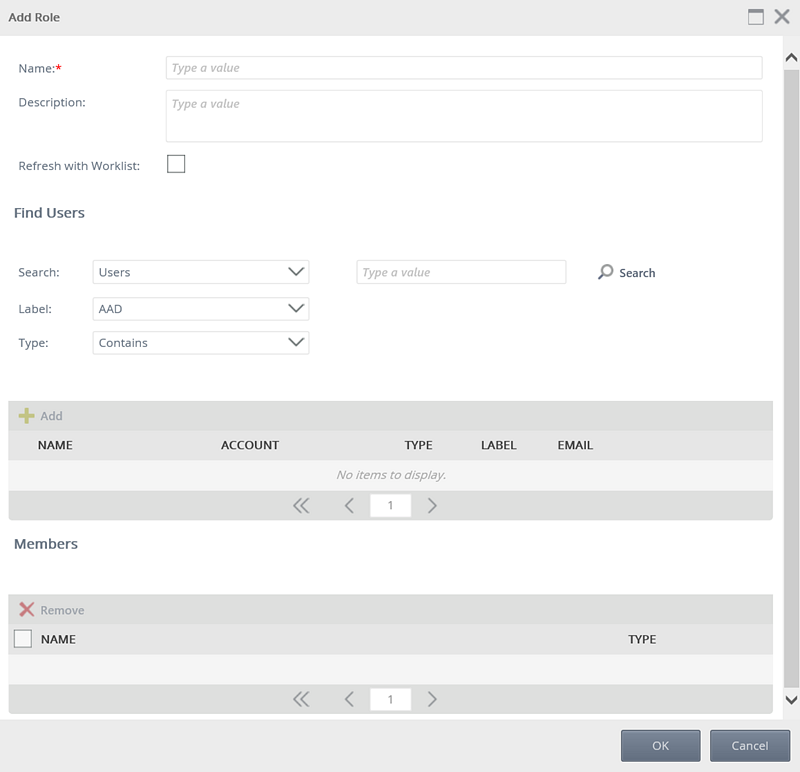

  2. The Add Role view opens.

    Use the table below as a guideline for the configuration:

    Field NameDescription
    NameThe name for the Role being created. Type a value in the field provided.
    DescriptionDescribe the Role being created. Type a value in the field provided.
    Refresh with WorklistThis functionality has been deprecated.
    SearchClick the Search drop-down and select to search for users or groups.
    LabelClick the Label drop-down and select the Security Provider label you want to search on.
    TypeClick the Type drop-down and select the type of search that will be performed.
    Search ButtonType a value in the text box provided and click Search.
    Add ButtonThe matching users or groups will be returned in the first view. Select a user or group and click Add. The user or group will now be listed in the second view. You can add multiple users or groups by doing a new search and clicking the Add button again.
    Remove ButtonTo remove Role Members, select the user or group from the second view and click Remove. The user or group will no longer be part of this Role.
    Include check boxEach Role Member is set to be included in the Role by default. Select the check box to exclude the Role Member from the Role.
    OK ButtonClick OK to complete the configuration. This will take you back to the Roles view and the new Role will be listed.
    Cancel ButtonClick Cancel if you no longer want to complete the configuration. This will take you back to the Roles view.
  3. Specify Role Security if required.

Follow these steps to edit a Role:

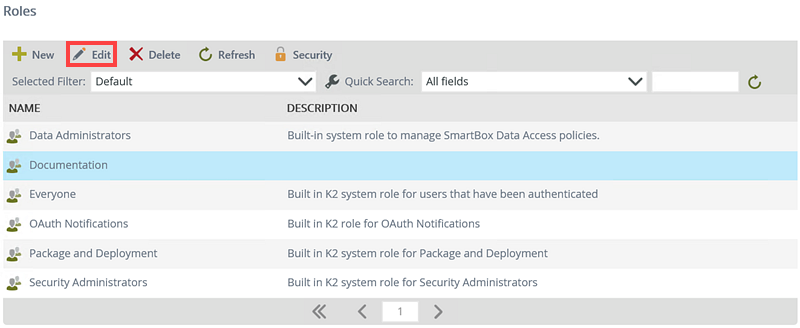

  1. Select the Role you want to edit.
  2. The Edit button becomes available. Click Edit.

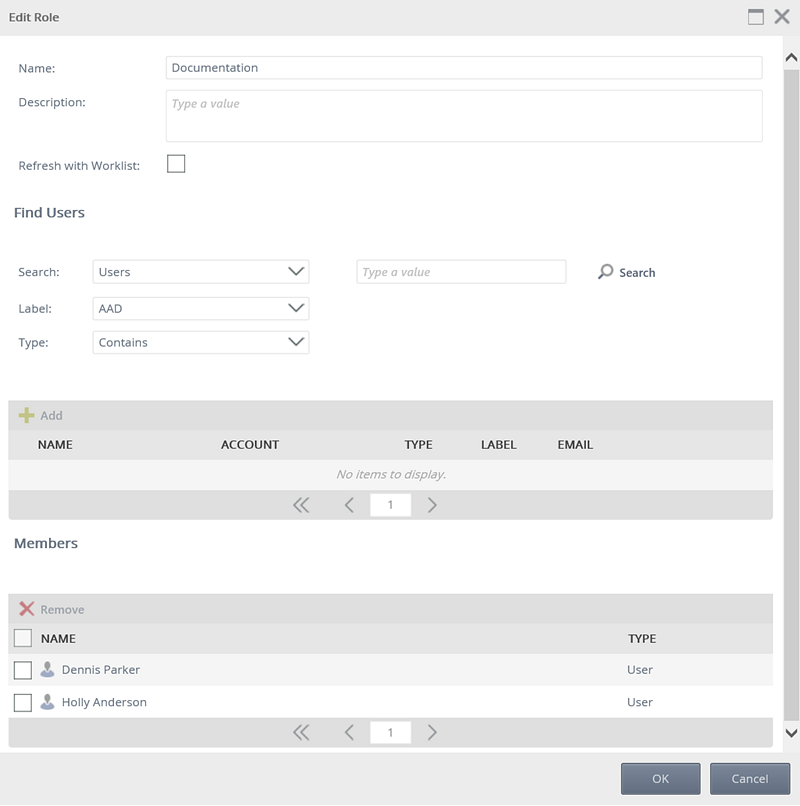

  3. The Edit Role view opens.
  4. Edit the information as required. Use the table provided in the Adding Roles section as a guideline.
  5. Click OK to save the changes.

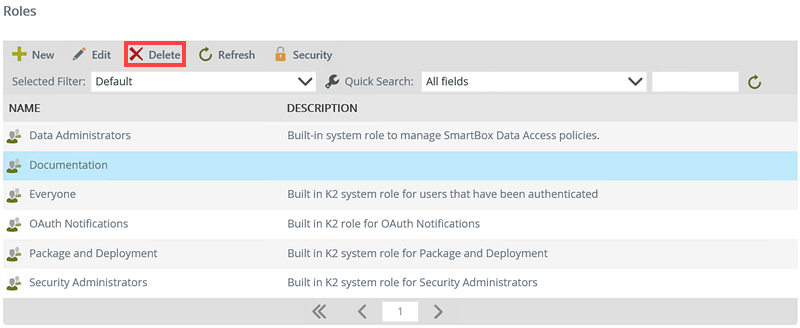

Follow these steps to delete a Role:

Take care when deleting Roles, since doing so may break applications that rely on those Roles. See How to: clean your environment by deleting application artifacts for more information about deleting application artifacts.
  1. Select the Role you want to delete using the check box in front of the Role. You can select multiple Roles to delete.
  2. The Delete button becomes available. Click Delete.
  3. Click OK on the confirmation message.

You can create custom filters to find specific roles by using values in the context browser together with operators, create a filter that sorts the list of roles by ascending or descending order and search for a role either by Name or Description.

When searching a role the value you enter could either be the full value of the field or a partial match value. Using a partial value will return all items containing the value in the name of the field. For example, entering Dep will return all roles containing the letters dep such as Department A, Department B, Finance Department etc. For more information see Searching and Filtering List Views.

Role Authorization allows you specify rights to users and groups within your custom role via the Security tab. These rights allow users or groups to modify and delete and apply security to the membership of the custom role. For more information see the Authorization Overview topic.

Role Rights Description
Modify Allows you to modify the role.
Delete Allows you to delete the role.
Security As the creator of Roles you can assign Security rights to Roles, which allows others the manage the object's security, including assigning Modify, Delete and Security rights.

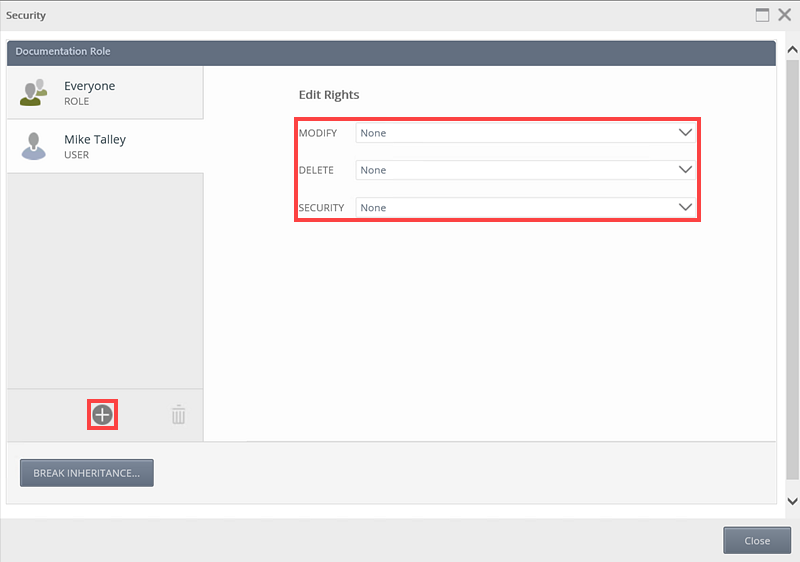

Follow these steps to add role authorization to a Role:

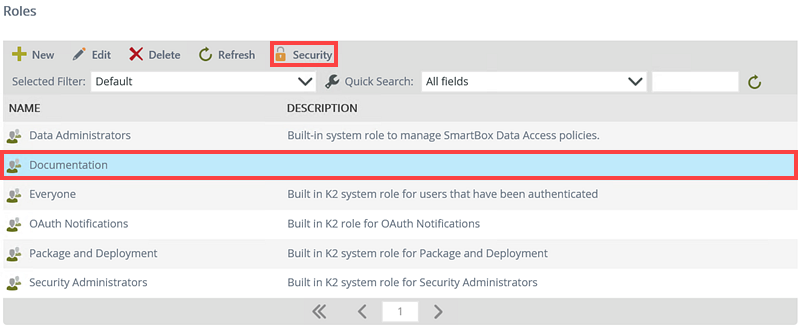

  1. Select a custom role and click Security.

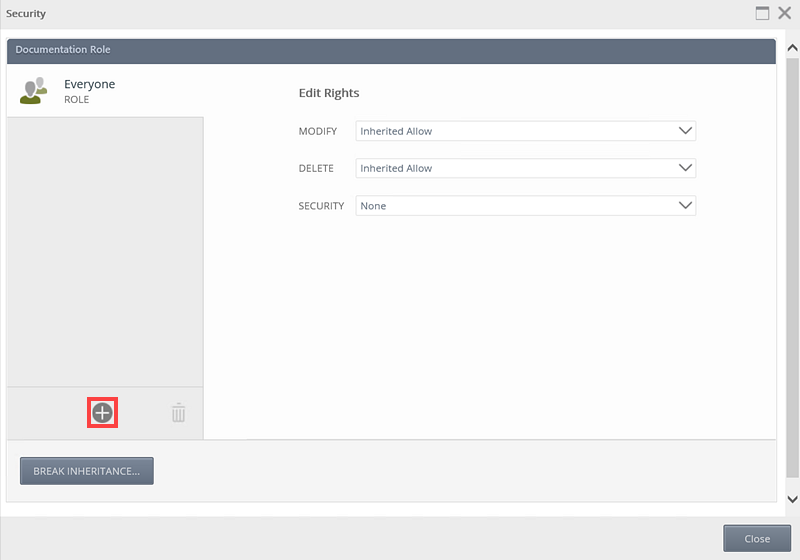

  2. On the Security page, add a user or group by clicking the Add button.

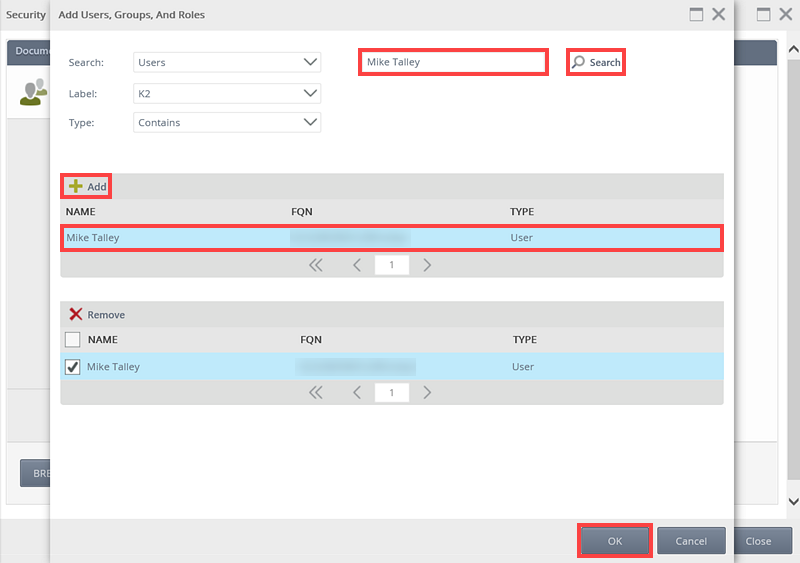

  3. On the Add Users, Groups, And Roles page search and add a user or group. Click OK.

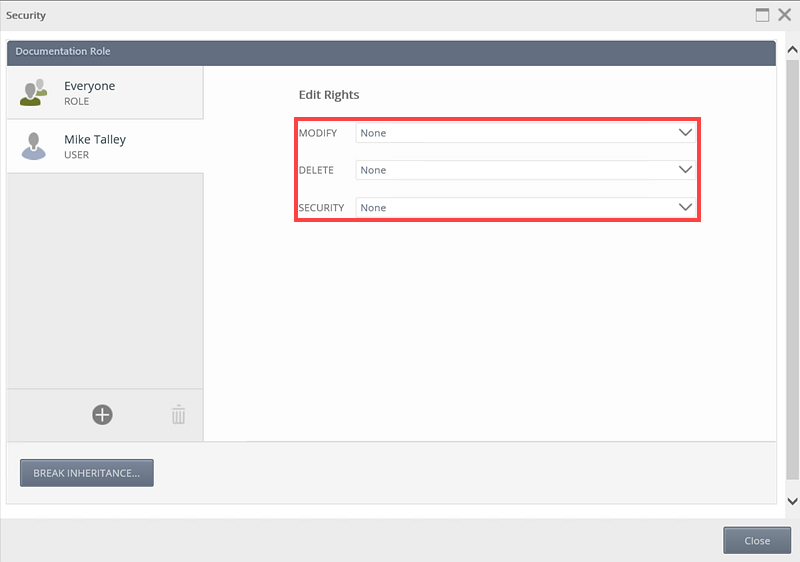

  4. Specify the user or group's Modify, Delete and Security rights. Three options are available: Allow, Deny and None.
  5. Add more users and groups to the Security page if required. Click Close.
    When specifying users and groups for role authorization, the Everyone role is added by default, providing all authenticated users in your organization, the ability to modify and delete the role membership. Best practice would be to remove the Everyone role from the role authorization (By clicking the Break Inheritance button, select everyone role and clicking the Trash Can icon) and add users and groups according to your organizations requirement.

Follow these steps to edit role authorization in a Role:

  1. Select a custom role and click Security.
  2. On the Security page, add a new user or group or edit existing rights.
  3. Click Close.

Follow these steps to remove authorization in the Role:

  1. Select a custom role and click Security.

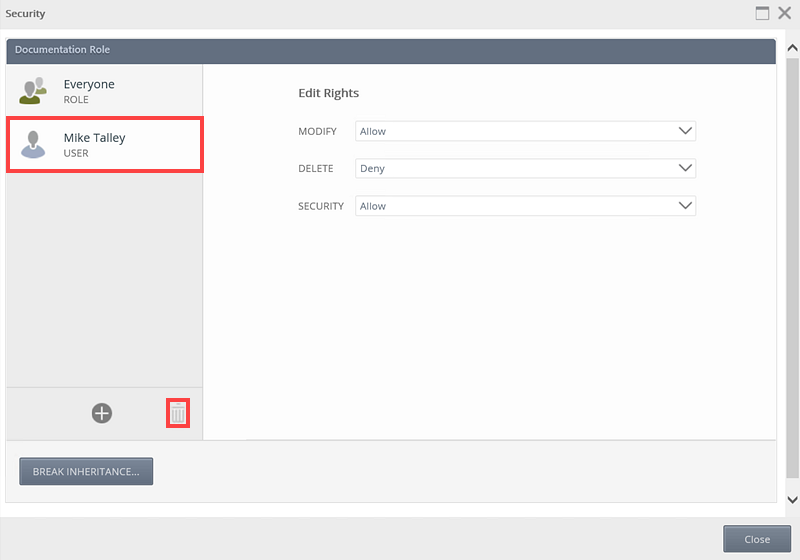

  2. Select a required user or group and click Remove.
  3. Click Close.
  • If you are a member of the Data Administrators role you have full access to all data, irrespective of the settings in SmartBox Data Access policies.
  • There must always be at least one user in a role
  • A role can only contain users and groups
  • You cannot remove yourself from a role for security reasons; another user with sufficient rights on the role or an administrator can remove you from a role
  • When you delete a role in Management, the role is removed from the Roles list, but behind the scenes the role is marked as disabled and is still refreshed and cached by the system. This is by design to prevent workflow instances that use the role from entering an error state
  • A refresh is run every ten minutes and updates and applies changes to your roles, whether you have renamed, removed, or updated role memberships
  • If you delete a role (remember that the role is disabled behind the scenes), and you then create a new role with the same name, the disabled/deleted role is used until the role cache refreshes, and then starts using the new role. We recommend that you use unique names for your roles to avoid this potential confusion
  • If users within the new role are different to role membership of the deleted role, and the role is used in running workflow instances, tasks are sent to the members of the deleted role until the role is refreshed. After the refresh, the role membership updates and tasks sent to the users in the new role. If any user in the deleted role opens a task before the refresh occurs, the task is allocated to them and they must release the task to make it available to the correct users
  • Known issue
    When you configure a workflow task result rule in such a way where a task has an Allocated status once the first person of a role opens the task, and you then delete that person from the role, the task can no longer be released or worked on.
    Resolution
    Apply one of the following steps to resolve the issue:
    • Redirect the Open task to another user from Management.
    • Add the user back to the role and then release the task.
