Configuration - Parameters
The Parameters screen is accessed by selecting the Parameters tab on the Configuration screen. The Report Parameters defines what the report should display and in what format. Parameters are only available on the drill down layer of the User Performance Report where the graph is displayed.

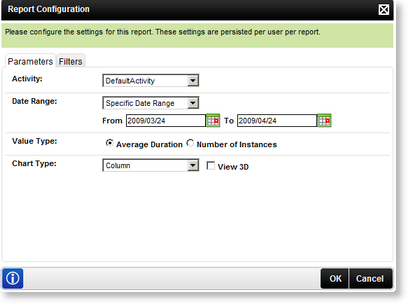

Fig. 1. User Performance Report Parameters
 |
Parameter settings are applied per user per report |
| Feature | What it is | How to use it |
|---|---|---|
| Activity | Stipulates the specific activity's information that should be displayed in the report | Click on the down arrow to select the required Activity from the drop down list |
| Date Range | Stipulates the period the report should be displayed for | Click on the down arrow to select the required Date Range from the drop down list Alternatively click on the calendar icon next to From and To to select the relevant date if a specific date range is required |
| Value Type | Stipulates which information the report should display, either the average duration of the activity or the number of instances of the activity | Select the relevant check box to display either the average duration of the activity or the number of instances of the activity in the report |
| Chart Type | Configures the display of the report. The user can choose between Area, Bar, Column or Pie Chart. The default type is Column Chart |
Click on the down arrow to select the required display of the report. Select the View 3D check box if the report should be displayed in 3D |
