Data Location | What it is | How to use it |
---|---|---|
Outer |
Enables the user to select the outer XML from the incoming source data field | Click on the drop down and select this option from the list. The selection applies to the source or incoming XML. Selecting this option will the take the entire XML structure, i.e. the root node, child nodes and the values contained therein. |
Inner |
Enables the user to select the inner XML from the incoming source data field | Click on the drop down and select this option from the list. The selection applies to the source or incoming XML. Click on the drop down and select this option from the list. Selecting this option will ignore the outer XML taking returning only the inner XML structure. |
Value |
Disregards the XML data structure and selects the Value within the field | Click on the drop down and select this option from the list. This selection enables the developer to return from the incoming XML structure the value held by the XML structure as opposed to the data and the structure that holds it. |
Destination | ||
Outer |
Enables the user to select the outer XML from the incoming source data field |
Click on the drop down and select this option from the list. The selection applies to the destination or location to where the Data Wizard will write the XML data. Selecting this option will the take the entire XML structure, i.e. the root node, child nodes and the values contained therein and write it to the destination provided by the user. |
Inner |
Enables the user to select the inner XML from the incoming source data field | Click on the drop down and select this option from the list. The selection applies to the destination or location to where the Data Wizard will write the XML data. Selecting this option will ignore the outer XML taking writing only the inner XML structure to the destination. |
Value |
Writes the XML data value to an existing field within the XML data structure | Click on the drop down and select this option from the list. This selection enables the developer to write to a destination XML structure the value to be held by the XML structure as opposed to the data and the structure that holds it. |
These define how the combinations of mappings are performed in the ‘Line Properties’ window.
Destination -> Source V | Inner XML | Outer XML | Value |
---|---|---|---|
Element to Element | |||
Inner XML | Direct Set | Copy children of source to parent of destination, then delete original destination | Direct Set (Inner Text) |
Outer XML Value | Direct Set | Direct Set | Direct Set (Inner Text) |
Outer XML Value | Direct Set (Inner Text) | Direct Set (Inner Text) | Direct Set (Inner Text) |
Attribute to Attribute | |||
Inner XML | Not Possible | Not Possible | Not Possible |
Outer XML Value | Not Possible | Not Possible | Not Possible |
Outer XML Value | Not Possible | Not Possible | Direct Set |
Element to Attribute | |||
Inner XML | Not Possible | Not Possible | Direct Set |
Outer XML Value | Not Possible | Not Possible | Direct Set |
Outer XML Value | Not Possible | Not Possible | Direct Set |
Attribute to Element | |||
Inner XML | Not Possible | Not Possible | Not Possible |
Outer XML Value | Not Possible | Not Possible | Not Possible |
Outer XML Value | Direct Set | Direct Set | Direct Set (Inner Text) |

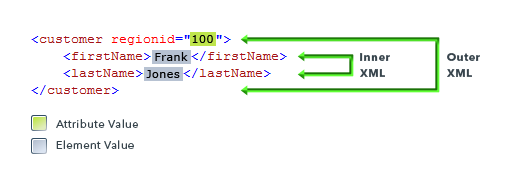

The following diagram explains how the scopes work. The element scopes are in relation to the “customer” element and the attribute scopes are in relation to the “regionid” attribute.
Scope | Element | Attribute |
---|---|---|
Inner XML | <firstName>Frank</firstName> <lastName>Jones</lastName> |
Not Valid |
Outer XML | <customer regionid="100"> <firstName>Frank</firstName> <lastName>Jones</lastName> </customer> |
Not Valid |
Value | Frank Jones | 100 |
The element value is therefore the concatenated text (without the XML tags) that the element contains. In the following example, the value of the element would be “FrankJones”. This is because there is no whitespace between the “firstName” and “lastName” elements.
XML Example |
Copy Code
|
---|---|
<customer><firstName>Frank</firstName><lastName>Jones</lastName></customer> |
![]() |
The W3C XML Specification draws a distinction between “Inner Text” and “Value”. The two were combined into “Value” in the Data Event Wizard because “Inner Text” cannot be used on an attribute, and “Value” cannot be used on an element. |
