K2 blackpearl Product Documentation: Installation and Configuration Guide
Install K2 for SharePoint component on the SharePoint Server

Install K2 for SharePoint on the SharePoint server

See these sections of this topic too:

Set SPNs for the SharePoint Service Account

Configure SharePoint to use Kerberos

Validate the K2 for SharePoint Component

Prerequisites



The SharePoint Server role is defined to be the server on which the K2 for SharePoint component will be installed, and is already running Microsoft Office SharePoint Server 2007, Microsoft Windows SharePoint Services 3.0, SharePoint 2010 Foundation or SharePoint Server 2010. The K2 for SharePoint component, configuration manager, and K2 documentation will be installed on this server.

The SharePoint Server role requires the following prerequisites:

K2 blackpearl Prerequisites for the SharePoint Server
Operating System
Windows Components
  • IIS 7.0 with IIS 6.0 Compatibility or IIS 7.0 Management Tools or IIS 8 Manager
  • Distributed Transaction Coordinator (DTC)
  • IPv4 (IPv6 can exist, but IPv4 must also be configured)
  • ASP.NET
  • Windows Authentication Role Services
Additional Software

http://www.microsoft.com/downloads/details.aspx?FamilyID=BB196D5D-76C2-4A0E-9458-267D22B6AAC6&displaylang=en

Rights and Permissions

The SharePoint Service Account is the account that the SharePoint application pool will run under. This account probably already exists in your environment, but there are some permissions that should be validated to ensure that the K2 integration with SharePoint functions properly.

The rest of this guide will use domain\SharePoint Service Account as a placeholder for the SharePoint Service Account name. When installing K2 in your environment, replace this placeholder with your actual account name.

The SharePoint Service Account will need the following permissions:

SharePoint Server
Rights Folder or Registry Key
Modify %SYSTEMROOT%\temp
Write %COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\12\Layouts\Features
Write %COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\12\ISAPI
Note that the \12\ in the folders mentioned above will be \14\ on a Microsoft SharePoint Server 2010 system.
SQL Server
Permission Used For
db_DataReader on the K2WebDesigner database

For the K2 Designer for SharePoint to function properly, the SharePoint Service Account needs read permission on this database.

db_DataWriter on the K2WebDesigner database

For the K2 Designer for SharePoint to function properly, the SharePoint Service Account needs write permission on this database.

Execute on Stored Procedures in the K2WebDesigner database

For the K2 Designer for SharePoint to function properly, the SharePoint Service Account needs to be able to execute the Stored Procedures on this database. The easiest way to do this is to create a new role (i.e., db_executor), grant stored procedure execute rights to that role, and assign the SharePoint Service account to that role.

Here is an example script for creating the role.

/* select K2WebDesigner database */
use K2WebDesigner

/* create a new role */
create role db_executor

/* grant execute to the role */
grant execute to db_executor

Authenticated Users
Rights Folder or Registry Key
Modify C:\Users and all folders below. (Applicable to Windows 2008 Servers). Apply this to all SharePoint Web Front Ends
While infrastructure changes are required by K2, each environment is different and has its peculiarities which must be taken into account. Modifying the infrastructure could have unforeseen results if the changes are not appropriately understood or managed. Given the broad spectrum of underlying infrastructure utilized, it is recommended that a panel or committee with appropriate skill in each area concerned be assembled to outline the underlying infrastructure changes and gauge the impact of the required changes.

Kerberos / Pass Through Authentication

When components are installed on separate servers, credentials must be passed between the services. This can be accomplished by setting up Kerberos, which should be configured prior to installing K2. Any time where two or more hops are required for user authentication, Kerberos must be configured.

Pass Through Authentication is a K2 proprietary authentication methodology specifically for authenticating users whose credentials need to be passed between machines that interact with the K2 APIs. This authentication model can be used as an alternative to Kerberos, but is not in any way intended to be a replacement for Kerberos within the overall infrastructure.

Install Steps

After you have installed all the prerequisites, created the service accounts, and enabled DTC, you are now ready to install the K2 for SharePoint component.

Once the installation is done, the Configuration Analysis tool will be available to help troubleshoot any errors detected during the installation.

It is important to copy the installation files locally to the server before installing. Do not install from a network share or UNC path. The installation will not work properly.

It is recommended to install all K2 components using either the K2 Service Account or the Central Administration Application Pool User. Log on to the server as the K2 Service Account or  Central Administration Application Pool User before installing.
When using a SharePoint Farm environment, the K2 for SharePoint component must be installed on each SharePoint Server in the Farm.

Important note: Run the installer on the Central Administration server first and then on all the web front ends in the SharePoint farm BEFORE starting the K2 for SharePoint Configuration Wizard on the Central Administration server.

To install the K2 for SharePoint component, follow the below steps:

From the local installation folder, double-click on the Setup.exe file

On the Welcome screen, click Next

On the End User License Agreement screen, read through the EULA. You must select the I agree option before you can continue with the installation. You can print out the EULA for your records. Once you have read the EULA, click Next

On the Installation Setup screen, select the Custom Installation option and type in a Installation Folder, and click Next

On the Select Components screen, you should see that the components for which the prerequisites are met are:

  • K2 blackpearl Server,
  • K2 Workspace,
  • K2 for SharePoint,
  • K2 Designer for SharePoint
  • K2 Documentation, and
  • K2 blackpearl Setup Manager

    You will want to uncheck the box next to K2 blackpearl Server and the K2 Workspace, as you will not be installing the K2 Server or Workspace on this machine. You will also see a link to Check Dependencies for the other components.

If you want to install one of the components on this server that have a Check Dependencies action, cancel the installation and fix the dependency. Then, restart the installation and you should be able to select that component.

On the HostServer Database screen, type in the name of the SQL Server where you installed the K2 Databases. This points the K2 for SharePoint component to the HostServer database set up by the K2 Server, to share configuration information. If you changed the Host Server database name, update it here and click Next.

On the Configuration Summary screen, validate the settings. You can go back to make any necessary changes, and you can print this page for reference later. Once you are satisfied with your settings, click Install.

The Setup Manager will update and show you the progress of the components as it installs.

When the installation has completed, you will see a finished screen. There will also be a link to the created configuration log file as well as an option to launch the SharePoint Configuration, see the topic K2 for SharePoint Configuration Wizard in the Integration Configuration > SharePoint section of this help file.

SharePoint Service Account

In a distributed environment where components are installed on more than one server or if host headers are used, Kerberos security must be configured. One of the components of Kerberos is the Service Principal Name (SPN). Whenever user credentials must be passed from one system to another, the system that is attempting to pass the credentials must be trusted for delegation. For this step to take place successfully, Kerberos delegation must be configured.

Configuring SPNs is an advanced task and should only be performed by an appropriately trained professional. The steps and configurations given in this help file are to be used as a guide - your system may require additional configuration due to different hardware and software compatibilities.

Set SPNs

In order for the K2 Worklist Web Part and K2 Designer for SharePoint to function properly from another machine, you need to set the SPNs for the SharePoint Service Account.

The following placeholders are used in the commands:

Be sure to set all the SPNs as listed below. Also, the service account is required so be sure to specify the account properly.

If you have SharePoint running on a cluster, be sure to use the name of the cluster and the fully qualified cluster name instead of a single node's machine name.

If you are using Host Headers to access your SharePoint Service, use the HostHeader value instead of the MachineName in the below commands. An SPN for each Host Header will need to be created.

Open a command prompt on a server that has the Windows Support Tools installed, and execute the following commands:


After the commands have successfully executed, you can verify the SPNs were set by executing the following command:

Configure for Delegation

After the SPN has been set, a new Delegation tab is available in Active Directory Users and Computers for the Service Account. By default, the option selected is the Do not trust this user for delegation. You need to set the account to be trusted for delegation, by following the below steps:


If you are running your Active Directory domain in Windows 2000 native mode, the Delegation tab will not be present. Instead, on the Account tab, you will see a Trust this user for delegation check box.

Open Active Directory Users and Computers (Start > All Programs > Administrative Tools > Active Directory Users and Computers)

Find the domain\SharePoint Service Account and view its properties

On the Delegation tab, select the Trust this user for delegation to specified services only option

Select the Use Kerberos only option, and click on Add

Click on Users or Computers and select the domain\K2 Service Account you created as the K2 Server Service Account

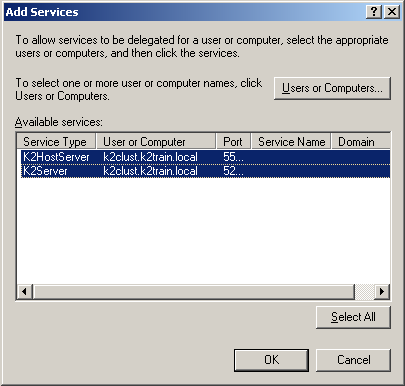

In the Available Services section, select both the K2HostServer and K2Server items listed:

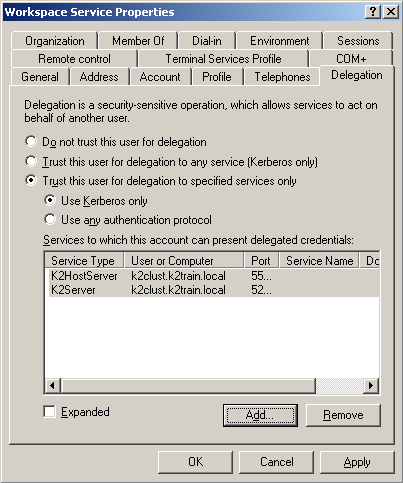

Click OK. Your properties should resemble the following:


Click Add again

Click on Users or Computers and select the domain\K2 Workspace Account you created as the K2 RuntimeServices Account

In the Available Services section, select the HTTP item listed

Click OK. This will allow the SharePoint Service Account to delegate to the K2 Workspace Account.

While infrastructure changes are required by K2, each environment is different and has its peculiarities which must be taken into account. Modifying the infrastructure could have unforeseen results if the changes are not appropriately understood or managed. Given the broad spectrum of underlying infrastructure utilized, it is recommended that a panel or committee with appropriate skill in each area concerned be assembled to outline the underlying infrastructure changes and gauge the impact of the required changes.


Configure SharePoint to use Kerberos

In a distributed environment where components are installed on more than one server or if host headers are used, Kerberos security must be configured. One of the components of Kerberos is the Service Principal Name (SPN). Whenever user credentials must be passed from one system to another, the system that is attempting to pass the credentials must be trusted for delegation. For this step to take place successfully, Kerberos delegation must be configured.

Configuring SPNs is an advanced task and should only be performed by an appropriately trained professional. The steps and configurations given in this help file are to be used as a guide - your system may require additional configuration due to different hardware and software compatibilities.

Set SPNs

In order for the K2 Worklist Web Part and K2 Designer for SharePoint to function properly from another machine, you need to set the SPNs for the SharePoint Service Account.

The following placeholders are used in the commands:

Be sure to set all the SPNs as listed below. Also, the service account is required so be sure to specify the account properly.

If you have SharePoint running on a cluster, be sure to use the name of the cluster and the fully qualified cluster name instead of a single node's machine name.

If you are using Host Headers to access your SharePoint Service, use the HostHeader value instead of the MachineName in the below commands. An SPN for each Host Header will need to be created.

Open a command prompt on a server that has the Windows Support Tools installed, and execute the following commands:


After the commands have successfully executed, you can verify the SPNs were set by executing the following command:

Configure for Delegation

After the SPN has been set, a new Delegation tab is available in Active Directory Users and Computers for the Service Account. By default, the option selected is the Do not trust this user for delegation. You need to set the account to be trusted for delegation, by following the below steps:


If you are running your Active Directory domain in Windows 2000 native mode, the Delegation tab will not be present. Instead, on the Account tab, you will see a Trust this user for delegation check box.

Open Active Directory Users and Computers (Start > All Programs > Administrative Tools > Active Directory Users and Computers)

Find the domain\SharePoint Service Account and view its properties

On the Delegation tab, select the Trust this user for delegation to specified services only option

Select the Use Kerberos only option, and click on Add

Click on Users or Computers and select the domain\K2 Service Account you created as the K2 Server Service Account

In the Available Services section, select both the K2HostServer and K2Server items listed:


Click OK. Your properties should resemble the following:


Click Add again

Click on Users or Computers and select the domain\K2 Workspace Account you created as the K2 RuntimeServices Account

In the Available Services section, select the HTTP item listed

Click OK. This will allow the SharePoint Service Account to delegate to the K2 Workspace Account.

While infrastructure changes are required by K2, each environment is different and has its peculiarities which must be taken into account. Modifying the infrastructure could have unforeseen results if the changes are not appropriately understood or managed. Given the broad spectrum of underlying infrastructure utilized, it is recommended that a panel or committee with appropriate skill in each area concerned be assembled to outline the underlying infrastructure changes and gauge the impact of the required changes.


Validate the K2 for SharePoint component

After installing and configuring the K2 for SharePoint component, you can check a few things to ensure that the component was set up properly:

  1. Open Windows explorer and navigate to C:\Program Files\Common Files\Microsoft Shared\web server extensions\12\TEMPLATE\FEATURES\. You should see several K2 folders for the various K2 features.

To validate that the K2 Designer for SharePoint has installed:

  1. Browse to the SharePoint Central Administration > K2 for SharePoint tab > K2 Designer for SharePoint link
  2. The Activate Feature page will be displayed. Activate the K2 Designer for SharePoint  feature if needed.

Be sure to see the section on Post installation common tasks once done with the install.
