K2 BLACKPEARL PRODUCT DOCUMENTATION: USER GUIDE
SmartObject Services: Workflow Reporting

SmartObject Services - Workflow Reporting

The Workflow Reporting service provides the data used to generate K2 workflow reports and (optionally) exposes reporting SmartObjects for specific K2 workflow definitions.

Note: the “Create Workflow Reporting SmartObjects” property must be set to True on the process properties to create workflow-specific SmartObjects when the process is deployed.

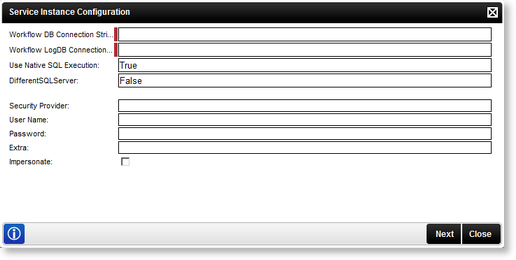

Setting Value Required
Workflow DB Connection String Enter the K2 Database Connection String This is a required field
Workflow LogDB Connection String Enter the Workflow Logging Database Connection String - e.g. server=localhost;database=k2log; uid=sa;pwd=k2pass;pooling=true; enlist=false;Min Pool Size=5 This is a required field
Use Native SQL Execution True/False
DifferentSQLServer True/False
Option What to do
Security Provider Enter the Security Provider - e.g. SourceCode.Hosting.SecurityProviders.SmartBox
User Name Enter the user Name - e.g. Administrator
Password Enter the associated password - e.g. K2pass
Extra Provides additional information, for example dll paths needed. (Optional)
Impersonate Select this check box to enable impersonation rights. The impersonate option allows the K2HostServer service account to impersonate the user.

When configuring the rights the following applies:

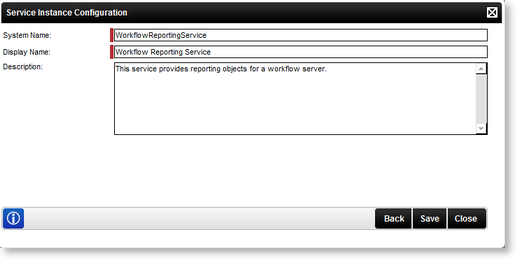

Clicking Next will load the Service Instance Configuration screen:


Option What it is How to use it
System Name The name of the SmartObject Service Enter the name of the SmartObject Service
Display Name user friendly name for the SmartObject SmartBox Service Enter a user friendly name for the SmartObject Service
Description A description for the SmartObject Service Enter a description for the SmartObject Service

Edit Workflow Reporting Service

To edit a Service Instance, select the Service Instance, then click Edit. The Edit Service Instance screen will be loaded with the information as provided previously. Edit the information as required and click Save.
