Security is applied to the controls to ensure that the data is seen by authorized individuals within an organization. Permissions are based on the process rights assigned to the process in Management Console:

• Users with Admin or View permissions will have access to the Report controls.
• Users with View Participate permissions will be permitted to view the Report controls from the point where the user has been part of the workflow.

1. Create a View

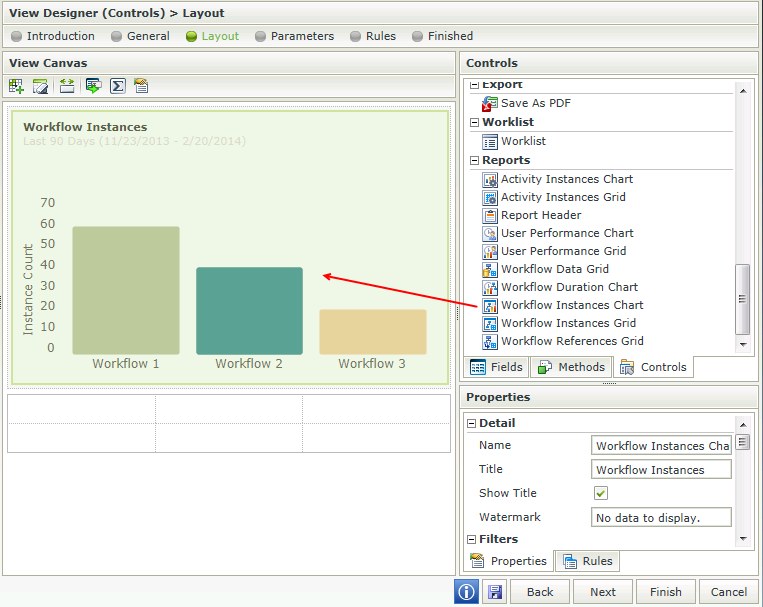

2. Drag the Workflow Instances Chart control onto the canvas. The control can be found in the Reports section of the Controls found in the View Designer, see the Properties section below
3. Configure the properties of the Workflow Instances Chart control as required, see the Properties section below

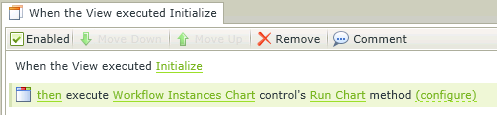

4. Add a rule to Run the Chart when the View is Initialized for example:
   Event: When a control on the View raises an event (When the View is Initialized)
   Action: Execute a control's method (Execute the Run Chart method)


• Always remember to create a rule to Run the Chart when the View Initializes
• When expecting to display many workflows, it is recommended to set the Label Angle in the Properties of the control to ensure that labels are displayed properly and do not overlap

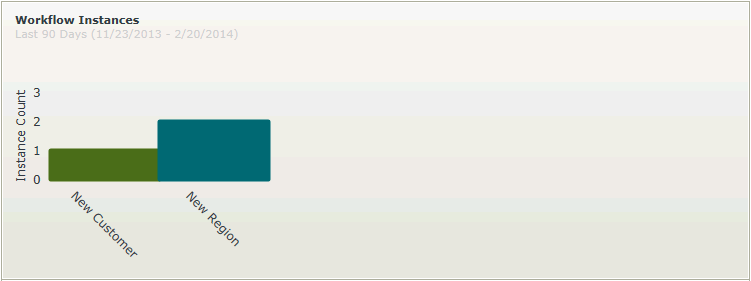

• The value of the Workflow Instances Chart is the fully qualified name of the workflow on the x-axis. When clicking on a bar, pie slice or column (depending on the type of Chart used) in runtime, the value of the Chart will be the name of the workflow clicked and can subsequently be used to bind properties or configure rules
• When using a percentage for the width of the control and used in conjunction with the Save as PDF control, a pixel width is calculated and applied to the control’s width thus making the width of the Chart pixel based rather than percentage based. It is therefore advised to use a non-percentage based width when using the Chart with the Save as PDF control
• When using Custom Themes, be sure to specify the CSS classes for the elements
• The data of K2 workflows or processes created by any workflow designer such as K2 Studio, K2 Designer for Visual Studio, K2 Designer and K2 Designer for SharePoint  can be made available using the reporting controls
• When using a percentage for the width of Chart controls and used in conjunction with the Save as PDF control, a pixel width is calculated and applied to the control’s width thus making the width of the Chart pixel based rather than percentage based. It is therefore advised to use a non-percentage based width when using a Chart with the Save as PDF control

Report controls interact with each other through rules. By binding properties between different controls, data can be used to populate properties or set values in runtime.

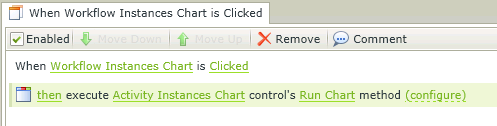

• When clicking for example on the bar, pie slice or column of a Workflow Instance Chart, the workflow representing that bar can be used to populate an Activity Instances Chart. In addition, the Title of the Activity Instances Chart can be set with the name of the workflow. The following rule can be configured to effect this in runtime:
  Event: When a control on the View raises an event
  Action: Execute a control's method

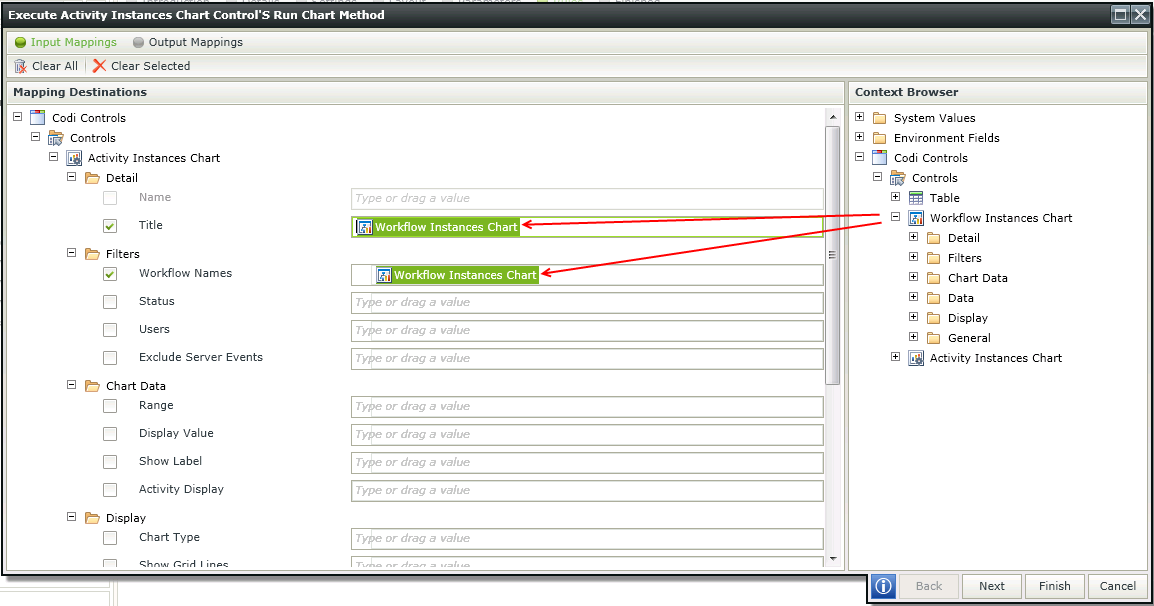

  Configuration: Map the Workflow Instances Chart to the Title and Workflow Names properties of the Activity Instances Chart



The Workflow Instances Chart control is available in the Reports section of the Controls found in the View Designer.
