K2 Service Object Designer
Access the designer in Microsoft Visual Studio | View > K2 connect Service Object.

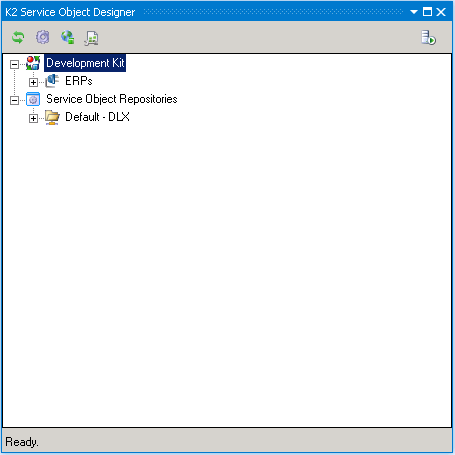

Use the K2 Service Object Designer to compose service objects that connect SAP with K2. The K2 Service Object Designer page shows both the local and immediate LAN objects. Service Objects are reusable entities that define K2 SmartObjects, and those SmartObjects are used in K2 workflows and smartforms
The K2 connectt for SAP service instance is run remotely (unless a local service instance is installed and active) on the same physical machine as the K2 Server. The development machines connect to the remote K2 connect Service and publish service objects to the Default K2 connect Service.
K2 connect Service
The K2 connect Service must be running when you develop service objects
The K2 connect Service must be up and running to 1) connect via the ERPConnector to the SAP Instances, and 2) develop service objects that leverage the SAP BAPIs. The service can be stopped and started from the designer by clicking the Server button on the designer explorer.

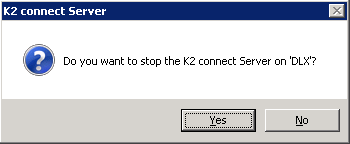

The message as shown above will display when the user you stop or start the service. Clicking Yes when prompted will either Stop or Start the service depending on whether the Service was running or not.
Configure Destinations
A destination or connection to a SAP instance is required for the system to function. Click the Configure Destination button to configure a destination . This will open up the Destination Explorer which will allow you to configure further destinations.
Settings
The settings dialog enables you to specify the name space.
Development Kit
The Development Kit refers to the K2 connect System resources, or infrastructure and systems. This includes the Service Objects published by the current or other uses. Access to any and all SAP system instances. The SAP instances can be either local (local to LAN) or remote (not local to LAN).
Service Object Repository
The Service Object repository represents the location where Service Objects have been stored.
Administrative Tasks
Certain Administrative tasks can be managed from the Service Object Designer.
K2 Service Object Designer Toolbar

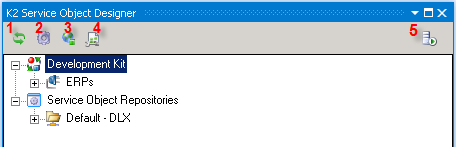

The Service Object Designer is available from within Microsoft Visual Studio. To view the tool it can be located under the following menu path View > K2 Service Object Designer. The Service Object Designer tool bar is located directly above the explorer pane as shown in the image below.
| Toolbar Item | Description | |
|---|---|---|
| 1 | Refresh | Refreshes the explorer pane. |
| 2 | Configure Destinations | Opens the Destination explorer to configure and edit destinations. |
| 3 | Settings | Name space settings. |
| 4 | K2 Settings | Opens the K2 Server Settings dialog. |
| 5 | Stop / Start K2 connect Server | Stops and Starts the K2 connect service manually. |
K2 Settings
These settings determine how K2 connect Service interacts with the K2 Five environment. Settings configured in other areas of K2 Five will affect the operation of K2 connect.
The newly installed K2 connect service must be registered with the K2 Server as a service type within the K2 Five environment. The service is managed from the management console.
The K2 connect Settings dialog configures the K2 connect Service within the K2 connect environment. Most important for this user page is the K2 connect Server connection. The K2 Server must be running and the K2 Server to which the K2 connect service connects is determined by the active environment selection in the environment library. If the K2 connect server is unable to establish a connection with the K2 Server, the K2 Five server connection will be commented as not connected.
The K2 Settings Dialog differs depending on the location from which it is accessed.
| Service Configuration Options | Description |
|---|---|
| K2 Server |
The name of the K2 Server that the K2 connect Service should communicate with. For clustered environments, the name of the Cluster will be present. The Server listed is configured by the setting extracted from the Developer's environment. So if the developer's environment is set to Production, this is the K2 Server that will be the host with which the K2 connect Service Objects will be associated. |
| K2 connect Service | Description |

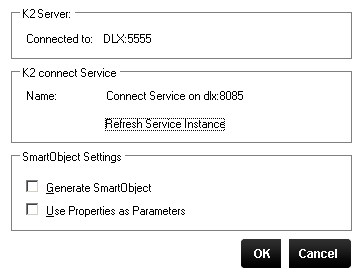

| SmartObject Service Register the Service type | Registers the K2 connect Service with the K2 Five Server specified in the field labeled K2 connect Server. Once the Service type has been registered, the button text changes to Service Type Registered. |
| Service Instance |
Refreshes registered instances of a K2 connect service with the K2 Service Broker. Refreshing the service instance requires a K2 connect Service restart. |
| SmartObject Settings | |
| Generate SmartObjects | When enabled, generates a SmartObject from the Service Objects when the Service Object is published. |
| Use properties as Parameters | When enabled, the Service Object’s properties are exported as parameters. |
Refresh User Credentials

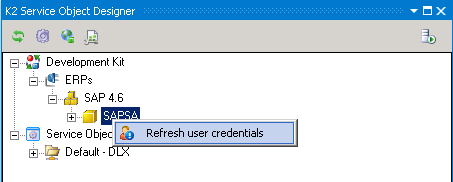

To refresh the user credentials, expand the node until the system instance is located and then right-click on the service instance and select Refresh User Credentials. The refresh requires user's credentials to be reentered or alternatively, the credentials specified in the connection string will be used.
Add K2 connect Server
Multiple K2 connect Servers can be added to the Service Object Designer explorer. From the Service Object Repositories Node, right-click on the service instance and select Add K2 connect Server. A dialog requesting user credentials will be presented to the user. The appropriate credentials for the new K2 connect Server must be entered.
To add the new Server, the credentials for the Server must be entered along with a Server Name and the communication port must be entered.
Managing K2 connect servers from Visual Studio
The developer can add and manage the K2 connect Server(s) from the K2 Service Object Designer. The following tasks may be performed:
Add K2 connect Server

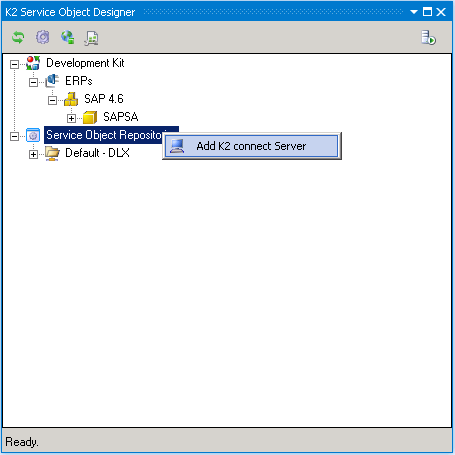

- From the Service Object Repository, right-click.
- Select Add K2 connect Server.

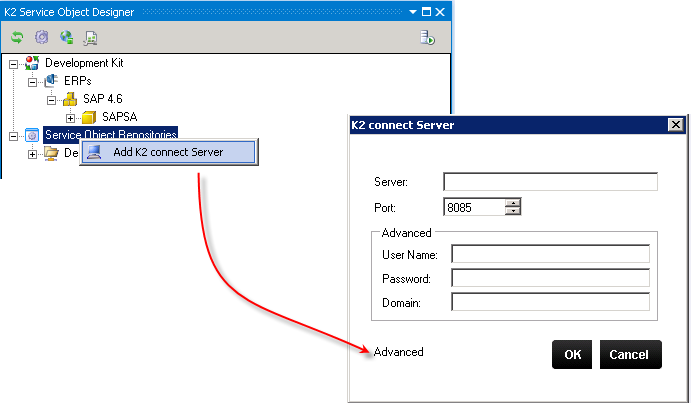

- Populate the user page below with the required details (Open in advanced mode).
Stop, Start And Refresh
Once a new K2 connect Server has been added, to either stop, start or refresh the service the menu described below must be used:

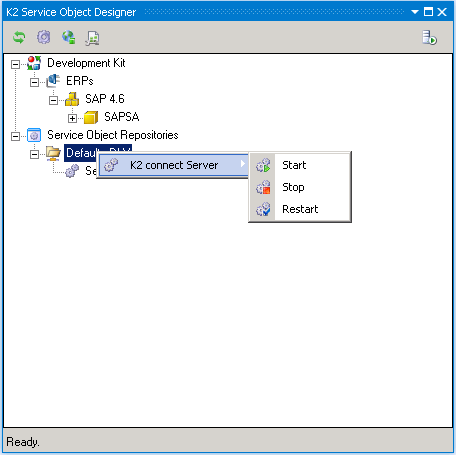

- Right click on the K2 connect Server e.g. Default(DLX).
- Select K2 connect Sever and then one of the options.
