Move Mouse
This article provides information on the following topics:
- What is the Move Mouse Action?
- Creating a Move Mouse Action
Note: The Actions Quick Reference provides a complete list of actions that you can print for easy reference.
What is the Move Mouse Action?
The Move Mouse Action moves the mouse cursor to a specific target.
Note: To keep the mouse on that target for a specific amount of time, try using a Hover Mouse Action instead of a Move Mouse Action.
A Move Mouse Action can be placed between a Mouse Down and Mouse Up action to simulate a "drag-and-drop". Refer to the Mouse Button Action article for more information.
Creating a Move Mouse Action

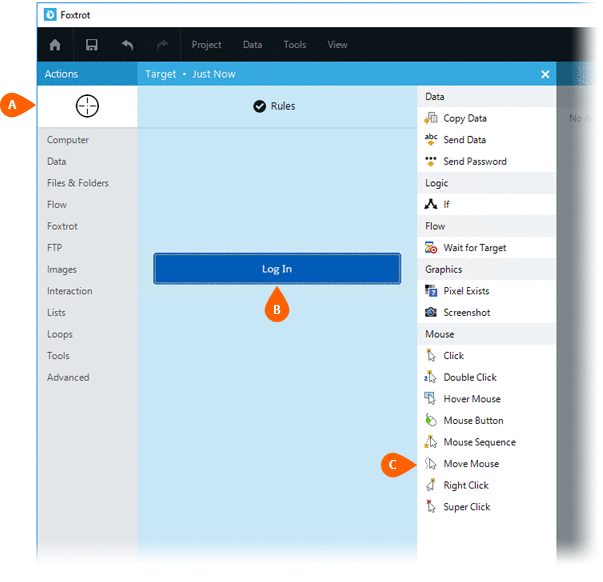

Drag and drop the Selector
onto the target to display
the Target Preview
.
Choose the Move Mouse
Action to display the Action Builder.
Select the Rules
to modify how Foxtrot will find the target.
Both the Timing
and
Error
settings
for this action may be configured to fine tune the how the Action will
run.
Note: For more information about Timing and Error settings, read the Action Builder article.
There are no special settings for this Action.
Optionally add Notes
to the Action to document any special instructions
or functionality. When the Run Switch
is set to Run, the action
will be executed after clicking OK.
Note: The run switch is set to Run by default. To create or modify this action without executing it, click the slider to change the option to Don't Run. For more information, see Action Builder.
Click the OK
button
to
save the Action.
