Digging Into Performance Details

Once you've seen high-level charts and statistics for your entire robot workforce in the Analytics Dashboard, you can dig further into the details of task performance directly from there. Console also provides detailed monitoring capabilities for current and historical task performance.

Trigger Performance & History

To access detailed trigger performance history for an individual trigger,

  1. Click TRIGGERS in the Navigation menu. The TRIGGERS main page opens.

  2. Access the trigger's Trigger Details page by clicking on the row of the trigger for which you want to see detailed information.

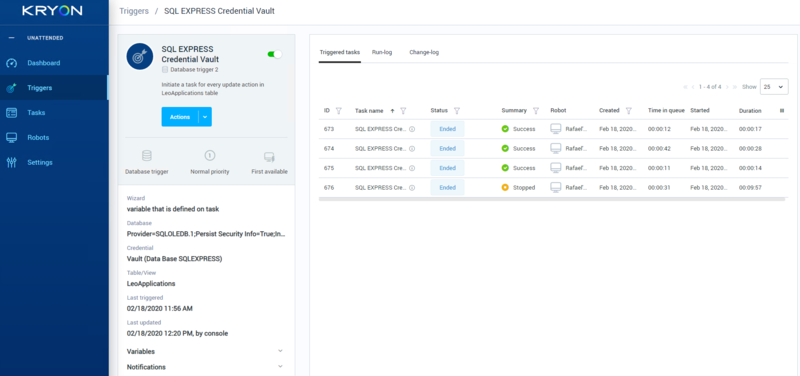

From the trigger's Trigger Details page, the following types of detailed information is available:

  • TRIGGERED TASKS tab: to see a summary of task's created by the trigger (either in queue, running or ended)

  • RUN-LOG tab: to see detailed task history for task initiated by this trigger

  • CHANGE-LOG tab: to see a record of changes made to the trigger

Robot Performance & History

Accessing Detailed Robot Data

To access detailed robot data:

  1. Click ROBOTS in the Navigation menu. The ROBOTS main page opens.

  2. On the APPROVED tab, click on the row of the robot for which you want to see detailed information.

    • The robot's Robot Details page opens.

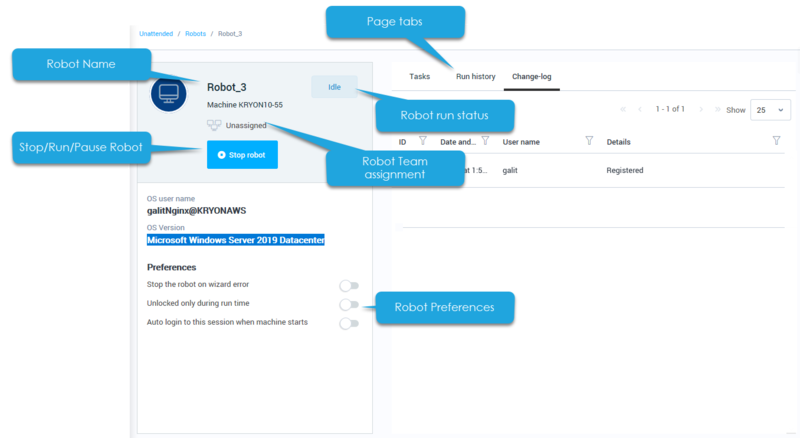

On the Robot Details page, click on the relevant tab to access detailed data:

  • TASKS Lists all the current and past tasks done by the robot along with some basic information about each task (tasks in the queue are not included).

  • RUN HISTORY A detailed history of the robot's status, activity, and all tasks executed by the robot.

  • CHANGE-LOG Lists all a detailed history of all changes made to the robot like team assignments, etc.
