Execute SQL Query

Perform an SQL query against a specified database and place the results into a variable. The query may be either predefined in Admin Tool or defined within the Advanced Command itself.

Predefined query

1. Select the query you would like to perform from the available predefined queries.

   In predefined query, the builder and query were already configured in Admin Tool.

2. Query Content and Parameters will be populated based upon the query you have selected.

3. Specify Value and Type for defined parameters as required.

4. Enter the name of the variable into which you'd like to place the results.

5. Indicate whether you would like to return all rows of the result or the first row only; and

   Enter the delimiters to use to separate each row and column in the returned data

6. The DB provider is predefined in Admin Tool SQL configuration and can be changed only through Admin Tool.

Custom query

1. Define the connection string for the data source

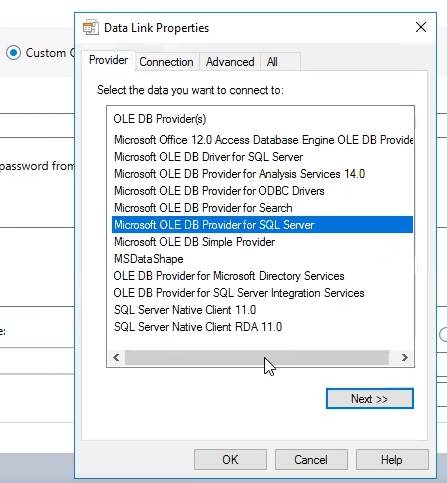

   • (Optional) Click the Builder link to assist in defining the connection string



2. Indicate whether you would like to retrieve database login credentials from the Credentials Vault.

3. Enter your query using standard SQL syntax.

4. Select the relevant database provider (Default, Oracle, or SQL).

   Default: Let Nintex identify the provider

   If you are using Oracle or SQL, we recommend you select the relevant database provider.

   Supported Oracle version is v11 and later using OLEDBC v11 driver only.

5. Enter the name of the variable into which you'd like to place the results.

6. Indicate whether you would like to return all rows of the result or the first row only; and

Enter the delimiters to use to separate each row and column in the returned data.

7. Instruct the wizard how to handle any errors encountered. Read more about error handling.
