Bubble Properties

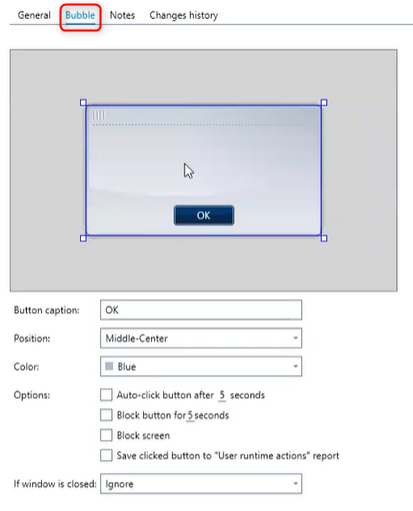

The Bubble tab contains the following properties:

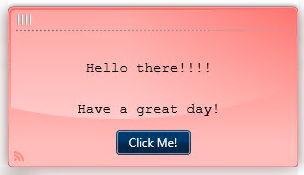

Bubble Design Area

Here is where you can design your Bubble Sensor with text and other formatting options.

Once you insert the text, you can change the appearance by using the included Formatting toolbar with some of the following options:

  • Font

  • Text size

  • Text color

  • Bold, Italics, Underline

  • Text alignment

  • Text direction

  • Bullet list or Numbered list

  • Add Image, Links, Variables, or Notes

  • Indent or Outdent

Button Captions

Choose the text for the bubble's button, such as OK.

Position

Determines where the bubble will be placed on the application or window screen.

Select one of these options:

  • Top: Left, Center, Right

  • Middle: Left, Center, Right

  • Bottom: Left, Center, Right

Color

Choose a color, from the available options, to change the sensor bubble's background.

Options

Select the button settings for the Bubble Sensor with these available options:

  • Auto click button after 5 seconds

    • Number of seconds can be changed

  • Block button for 5 seconds

    • Number of seconds can be changed

  • Block screen

  • Save clicked button to "User runtime actions" report

If Window is Closed

This determines what happens to the bubble sensor one the window or application is closed, before its button is selected.

The available options are:

  • Hide: When this option is selected, the bubble hides when the application/window is closed. It reappears when the application/window is reopened.

  • Ignore: When this option is selected, the bubble remains in the previously selected position, on any window or application that is opened, until the buttonis clicked.
