A Tour of Admin

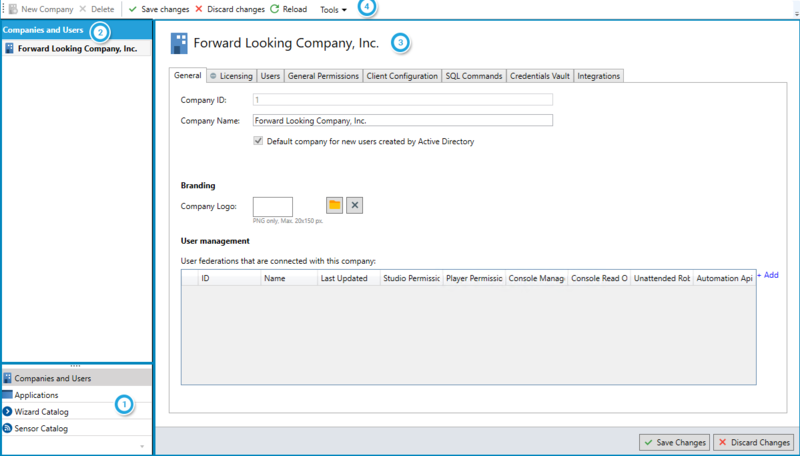

The Admin main window is organized into panes, as further detailed below:

1. Menu Pane

Admin enables you to work with the main elements of the RPA platform:

• Companies and Users

• Applications

• Catalogs (i.e., the Wizard Catalog and the Sensor Catalog

• These main elements are listed in the Menu Pane

2. Entities Pane

   When you select an element in the Menu Pane, the Entities Pane will list all the entities that have been created within that element:

   • When you select Companies and Users, the Entities Pane will list all companies.

   • When you select Applications, the Entities Pane.

   • When you select the Wizard Catalog, the Entities Pane will list all libraries in the wizard catalog and the categories within them.

   • When you select the Sensor Catalog, the Entities Pane will list all libraries and the categories within them.

   The Wizard and Sensor Catalogs share the same libraries. Categories created within the libraries vary between the Wizard and Sensor Catalogs.

3. Properties Pane

   When you select an entity in the Entities Pane, the  Properties Pane will display all the properties relevant to the selected entity type. Properties are organized in tabs to make them easier to locate and navigate.

   • For example: If you have selected Applications from the Menu Pane, then selected a specific application from the Entities Pane → the Properties Pane will display all of that application's properties

4. Toolbar

The toolbar located at the top of the Admin screen provides access to additional actions related to the type of element you are working with.
