3. Create Service Instances for External Data Sources; Generate SmartObjects

This application has two external data sources. The first data source (Azure SQL Service) provides a list of expense claim categories used in a category drop-down list on the expense claim form. The second data source (Endpoint Web Services) has two functions: the first provides a list of currency codes used for a drop-down list and the second converts the expense claim amount to US dollars. You can enter an expense claim item using another country's currency code and it is automatically converted to US dollars. This is especially helpful when entering travel expenses and eliminates the need to manually convert the amount yourself.

The first step when integrating with external systems such as SQL or web services, is to create a service instance. The service instance contains the connection configuration such as URL, server name, user name, password, and so forth. In this step, you create a SQL Server service instance and an Endpoints Web Services service instance. You also generate a SmartObject from the SQL Service service instance.

Creating a service instance allows K2 to discover the objects (such as the properties and methods) that the data source contains. Creating a SmartObject from the service instance allows K2 to interact with the data source through forms, workflows, and rules.

Service Types, Brokers, Instances, and SmartObjects
Service types, service brokers, and service instances are the elements that allow K2 to interact with other systems, and which form the base layer for SmartObjects. The following is a brief overview of each concept:
  • Service Type: A service type is a pointer to a broker file for a specific system or data source. Examples include: SQL Server, SharePoint, CRM, and web services. Each service type has an underlying service broker associated with it.
    • Service Broker: A file that contains the logic needed to interact with a specific system. Each service type has its own requirements for interacting with the system. For example, what type of authorization will the system allow? What type of data is contained in the system?
  • Service Instance: A service instance is a single connection to a data source, and is based on the service type. The service instance uses the requirements defined by the broker to connect to the target data source. For example, you might have an instance of a SQL Server service type. The instance is specific to a single SQL database. If you have multiple databases, you need multiple instances. From the instances, you can then generate SmartObjects.

  • SmartObjects: The middle layer that allows interaction between a K2 object (form, view, workflow) and the target data source. For example, you have a form bound to a SQL SmartObject. When you submit the form, the SmartObject creates a new record or it updates an existing record in the SQL table. The SmartObject connects K2 to the system via the service layer.

In a shared environment, you only need to create the service instance once. If the service instance already exists and you want to create your own, use a unique identifier of some kind. One example might be to add your initials to the service instance name.
  1. Launch the K2 Management site.
    1. Launch the K2 Management site.
      If you are unsure of how to launch the K2 Management site, see Accessing K2 Sites.
  2. Configure a new SQL Server Service Instance for the sample database that provides look-up values for expense categories. Use the table below as a guide to configure the service instance settings. If a setting is not specified, assume the default value.
    The database you will be connecting to is hosted on the internet as a SQL Azure database. This database should be accessible through port 1433, and unless your organization has strict firewall policies in place, it should be available for use anywhere. If you need to host this SQL database internally, you can download a SQL script to recreate the database from the following location: https://help.k2.com/files/8553. Contact a member of your application development team for help, if necessary. You will need to adjust the Service Instance's Database and Server keys and potentially the authentication method to connect to a local version of this SQL Database.
     FieldValueNotes
    Service Instance
    A.Display NameK2 Tutorial SQL DatabaseIf you are working in a shared environment, the K2 Tutorial SQL Database service instance might already exist. You can use the service instance in place or create a new instance. If you create a new instance, add your initials to the name to make it unique.
    B.DescriptionService instance for the sample database used for K2 tutorials.
    C.Service TypeSQL Server ServiceYou create a connection to a SQL database as the provider for this service instance. The connection is also known as a service types or service brokers and is usually system-specific (such as SQL, web services, etc).
    Service Authentication
    D.Authentication ModeStaticYou provide a static username and password to connect to the sample SQL database.
    E.User NameK2LearningUser
    F.PasswordK2LearningPass
     Extra(leave blank)
    Service Keys
    G.On Different SQL ServertrueThe database exists on a physically different SQL server than your K2 system.
    H.Command Timeout90You want to extend the command timeout from the default to cater for high load.
    I.DatabaseK2LearningThis is the name of the target database on the SQL server.
    J.Serveruh8ydarb4m.database.windows.netThis is the name of the SQL server you want to connect to.
    K.Use Native SQL ExecutionfalseYou do not want K2 to use native SQL commands for this target database. It exists on a separate server. The K2 service account does not have the correct permissions on the target system to perform DDL operations.
    SmartObjects
    L.Generate SmartObjects for this Service InstanceUNCHECKEDYou create the SmartObject after this step.

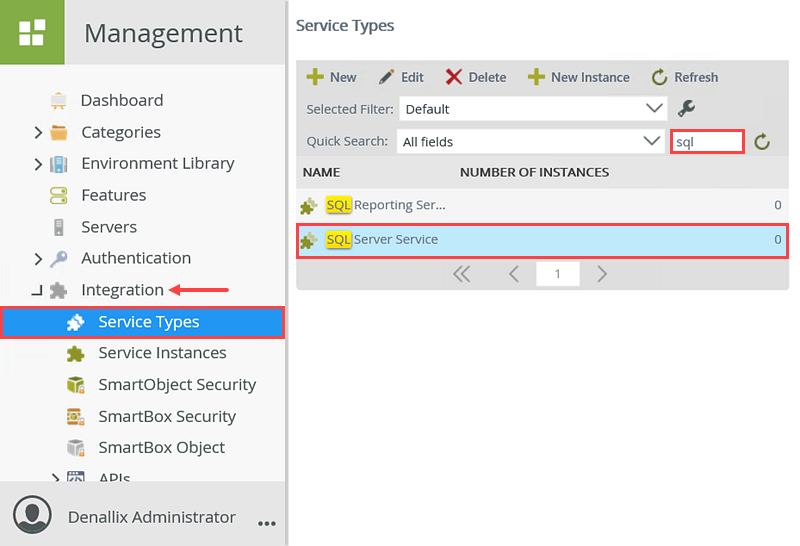

    1. From the Management menu, expand the Integration node and click Service Types. You see current service types displayed in the central pane. Scroll through the list until you locate SQL Server Service. You can also use the search option instead of scrolling through the pages. (You may see more than one search result returned.)
      Integration Menu

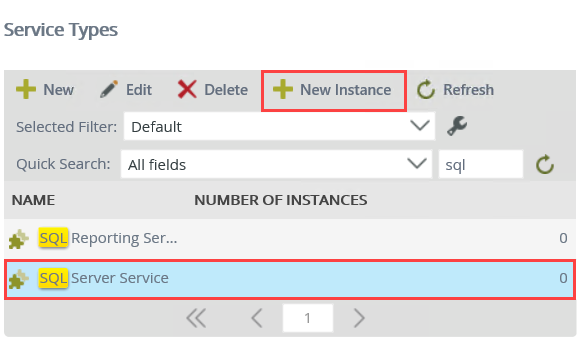

    2. Select SQL Server Service and click the New Instance button in the toolbar.
      New Instance

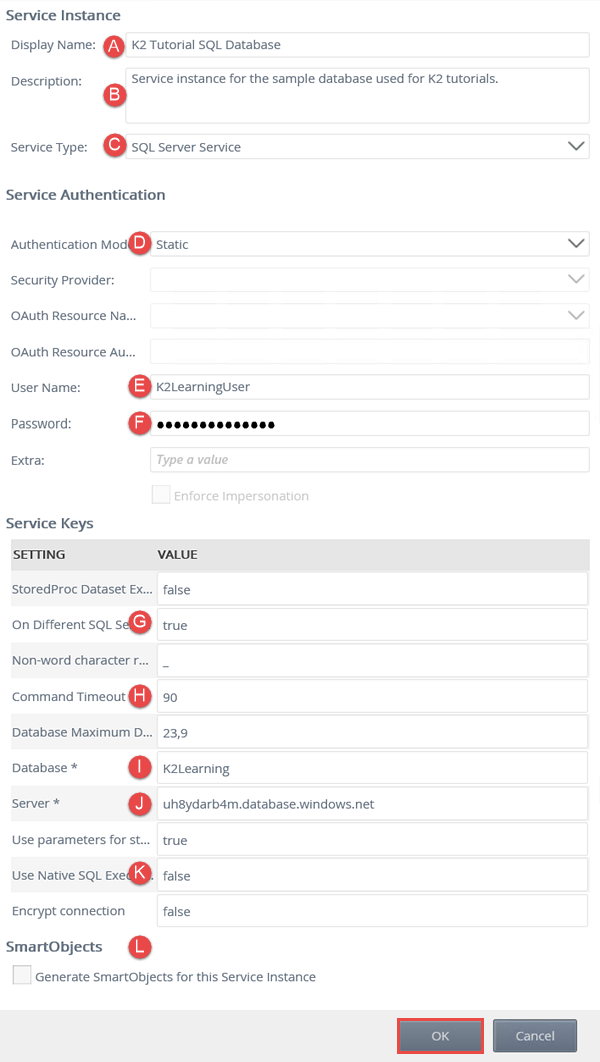

    3. Use the table below to configure the service instance. There is an image below the table to use as a reference, if needed. If a setting is not indicated in the table, assume the default value. Click OK to create the service instance. Click OK for the confirmation dialog.
       FieldValueNotes
      Service Instance
      A.Display NameK2 Tutorial SQL DatabaseIf you are working in a shared environment, the K2 Tutorial SQL Database service instance might already exist. You can use the service instance in place, or create a new instance. If you create a new instance, add your initials to the name to make it unique.
      B.DescriptionService instance for the sample database used for K2 tutorials.
      C.Service TypeSQL Server ServiceYou create a connection to a SQL database as the provider for this service instance. The connection is also known as a service types or service brokers and is usually system-specific (such as SQL, web services, etc).
      Service Authentication
      D.Authentication ModeStaticYou provide a static username and password to connect to the sample SQL database.
      E.User NameK2LearningUser
      F.PasswordK2LearningPass
       Extra(leave blank)
      Service Keys
      G.On Different SQL ServertrueThe database exists on a physically different SQL server than your K2 system.
      H.Command Timeout90You want to extend the command timeout from the default to cater for high load.
      I.DatabaseK2LearningThis is the name of the target database on the target SQL server.
      J.Serveruh8ydarb4m.database.windows.netThis is the name of the SQL server you want to connect to.
      K.Use Native SQL executionfalseYou do not want K2 to use native SQL commands for this target database since it exists on a separate server. The K2 service account does not have permissions on the target system to perform DDL operations.
      SmartObjects
      L.Generate SmartObjects for this Service InstanceUNCHECKEDYou will create the SmartObject after this step.
  3. Generate a SmartObject from the K2 Tutorial SQL Database service instance. Only select the [Finance].[ExpenseCategory] table.
    1. Next, you create a SmartObject from the K2 Tutorial SQL Database service instance. Creating a SmartObject exposes the properties and methods discovered in the data source and makes them available for use in views, forms, and workflows. This particular SmartObject provides the look-up values for the expense claim categories drop-down list.

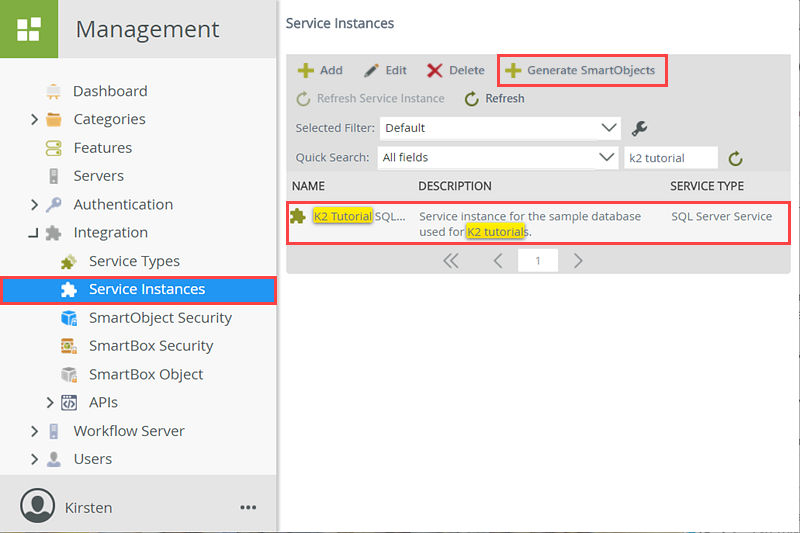

      In the K2 Management site, expand the Integration node (if it isn't already) and click Service Instances. Navigate to (or search for) the K2 Tutorial SQL Database service instance. Select the service instance and click the Generate SmartObjects button in the toolbar.
      Generate SmartObjects from a Service Instance

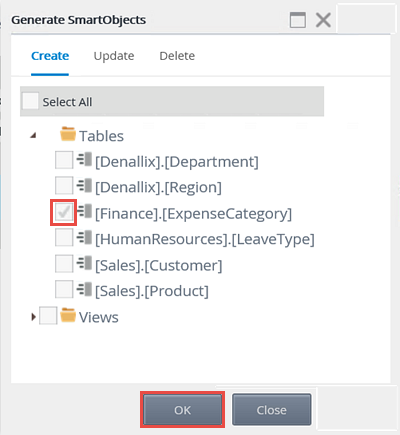

    2. On the Generate SmartObjects screen, expand the Tables node. (If the Tables and/or Views nodes are already checked, uncheck them first. You don't need to create SmartObjects from all the tables and views; you only select a single table for the SmartObject.) CHECK the [Finance].[ExpenseCategory] table and click OK.
  4. From the K2 Management site, execute the new SmartObject's list method and confirm expense category results are returned.
    1. Next, you test the SmartObject to confirm the connection settings from the service instance is valid.

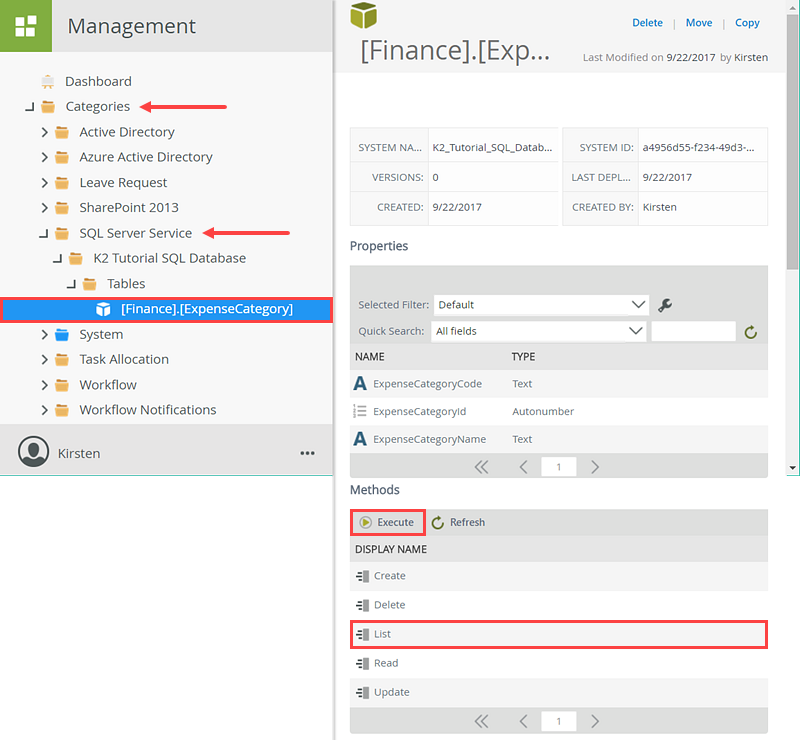

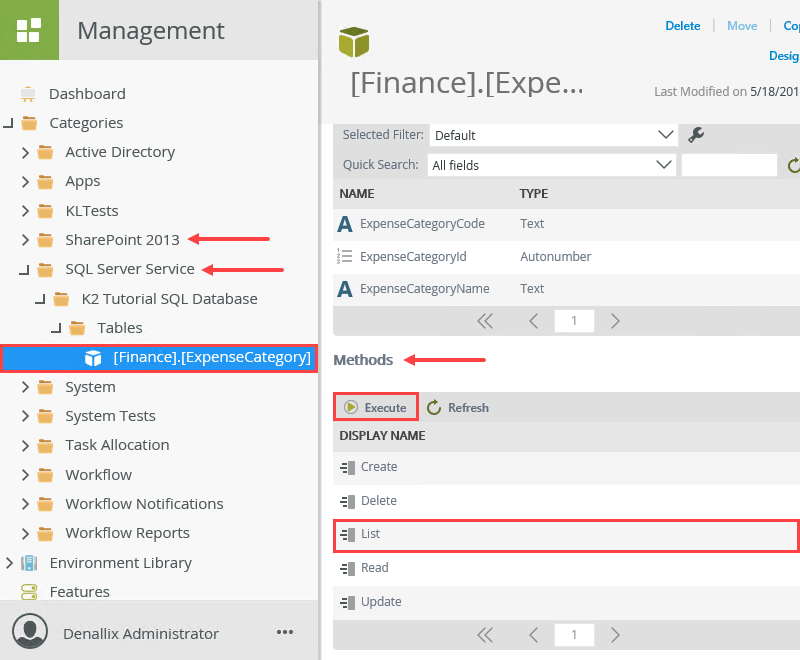

      From the Management menu, expand the Categories node. Expand the SQL Server Service > K2 Tutorial SQL Database > Tables nodes. Select the [Finance].[ExpenseCategory] SmartObject. The SmartObject details, properties, and methods open in the central pane. Scroll down to the Methods section. Select the List method and click Execute.
      Execute List Method

      2. The Execute SmartObject Method screen opens. Here, you can apply filters before executing the method. In some cases, such as read methods, you must provide input parameters before executing the method. For this test, you just want to confirm the connection, so you don't need any filters.

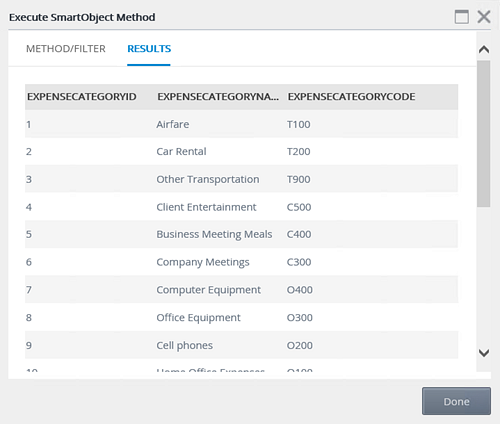

    2. Click the Execute button in the lower right corner of the screen. You see results displayed the same screen, which confirm the connection. This data source provides the drop-down list values for the expense categories. Click Done to close the screen.
  5. Create a second service instance using the Endpoints WebService service type. Use the table below as a guide for the service instance configuration.
    This web service is for tutorial purposes only. Do not use this web service for production environments. The web service used by this application also runs on Azure. This web service should be accessible through port 80 and unless your organization has strict firewall policies in place, it should be available for use anywhere. If you need to host the web service internally, you can download the source code for the web service from the following location: https://help.k2.com/files/8554. Contact a member of your application development team for help, if necessary.
     FieldValueNotes
    Service Instance
    A.Display NameK2 Tutorial Currency Web ServiceIf necessary, add your initials to the service instance name so that it is unique to your project.
    B.DescriptionService instance for the sample currency web service used for K2 tutorials.
    C.Service TypeEndpoints WebService
    Service Authentication
    D.Authentication ModeServiceAccountYou use the credentials of the K2 service account to connect to the target web service. When using the service account authentication mode, the service account must have the necessary permissions to interact with the data source. Be aware of this when registering a new service instance in your own environment.
    Service Keys
    There is only one service key value to set in this step (WebService URL).
    E.WebService URLhttp://k2learning.azurewebsites.net/ExchangeRates.asmxThis is the URL of the target web service you connect to.
    F.Generate SmartObjects for this Service InstanceUNCHECKEDYou manually create a SmartObject in a later step.
    1. Next, you add another service instance that points to a web service used for currency conversion.
      Open a new browser window and verify you can connect to the following web service:
      http://k2learning.azurewebsites.net/ExchangeRates.asmx

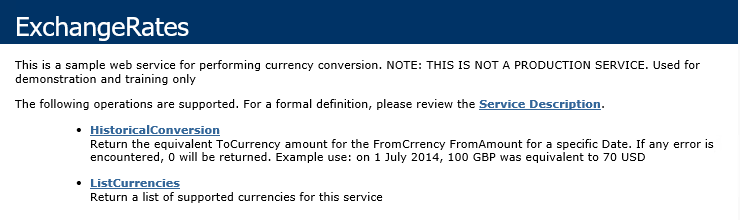

      You should see a screen similar to the image below.
      Test Web Service Page
      This web service is for tutorial purposes only. Do not use this web service for production environments. The web service used by this application also runs on Azure. This web service should be accessible through port 80 and unless your organization has strict firewall policies in place, it should be available for use anywhere. If you need to host the web service internally, you can download the source code for the web service from the following location: https://help.k2.com/files/8554. Contact a member of your application development team, if necessary.

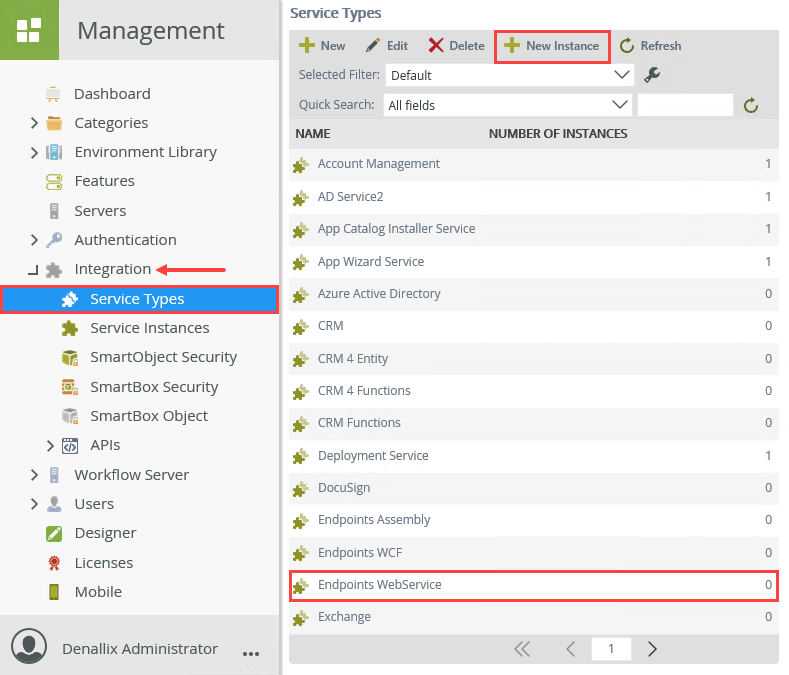

    2. Returning to the K2 Management site, expand the Integration node and click Service Types. Scroll down to (or search for) the Endpoints WebService. Select Endpoints WebService and click the New Instance button in the toolbar.
      Adding a New Service Instance

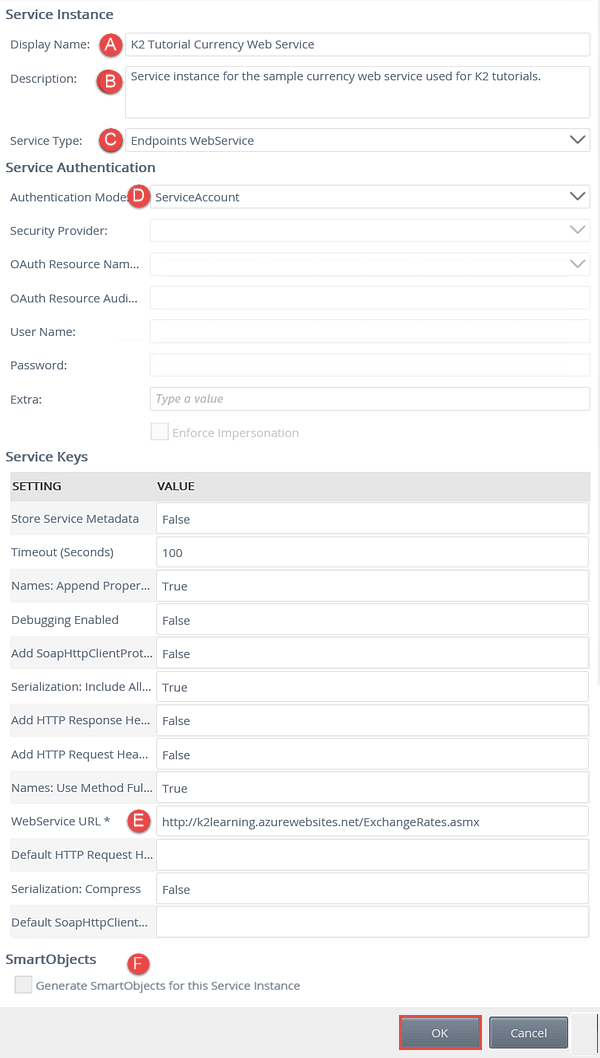

    3. Use the table below to configure the service instance. There is an image below the table to use as a reference, if needed. If a setting is not indicated in the table, assume the default value. Click OK to create the service instance. Click OK for the confirmation dialog.
       FieldValueNotes
      Service Instance
      A.Display NameK2 Tutorial Currency Web ServiceIf necessary, add your initials to the service instance name so that it is unique to your project.
      B.DescriptionService instance for the sample currency web service used for K2 tutorials.
      C.Service TypeEndpoints WebService
      Service Authentication
      D.Authentication ModeServiceAccountYou use the credentials of the K2 service account to connect to the target web service. When using the service account authentication mode, the service account must have the necessary permissions to interact with the data source. Be aware of this when registering a new service instance in your own environment.
      Service Keys
      There is only one service key value to set in this step (WebService URL).
      E.WebService URLhttp://k2learning.azurewebsites.net/ExchangeRates.asmxThis is the URL of the target web service you will connect to.
      F.Generate SmartObjects for this Service InstanceUNCHECKEDYou manually create a SmartObject in a later step.
    4. Still in the Integration node, click Service Instances. Confirm you can see both new service instances: K2 Tutorial Currency Web Service and K2 Tutorial SQL Database. Your external data connections are ready for use!
Review

In this step, you created two service instances for external data sources. The first data source is an Azure SQL database and the second data source is a web service. The SQL data source provides the drop-down list values for expense categories. The web service provides values for currency conversion and currency listings. You generated a SmartObject from the SQL Server service instance, selecting the single expense category table. For the currency SmartObject, you will create a new SmartObject from scratch using K2 Designer. In the next step, you generate application elements from the Expense Claim list.

Next Step: 4. Create the K2 Application Elements for the Expense Claim List
