Create Folder (Documents)
This content applies to legacy design tools (such as K2 Studio, K2 for Visual Studio, or the Silverlight-based K2 workflow design tool). If you have upgraded from K2 blackpearl 4.7 to K2 Five , these tools may still be available in your environment. These legacy tools may not be available in new installations of K2 Five . These legacy tools may also not be available, supported, or behave as described, in future updates or versions of K2. Please see the legacy component support policy for more information about support for these components.
This wizard is found in the SharePoint 2013 - Document Events node in K2 Studio and the K2 Designer for Visual Studio..
What does it do?
The Create Folder (Documents) event allows you to create a new folder in a SharePoint document library.
How is it used?
A business application may create folders to organize documents by client, project, or approval status.

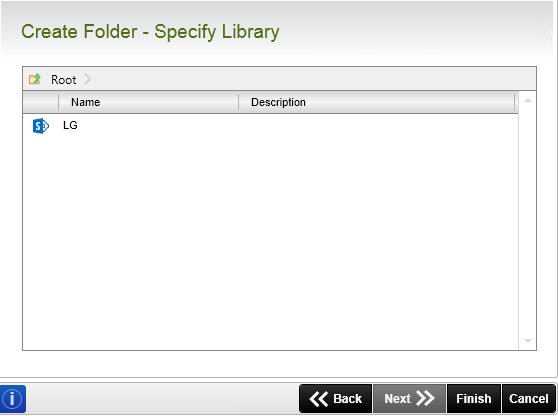

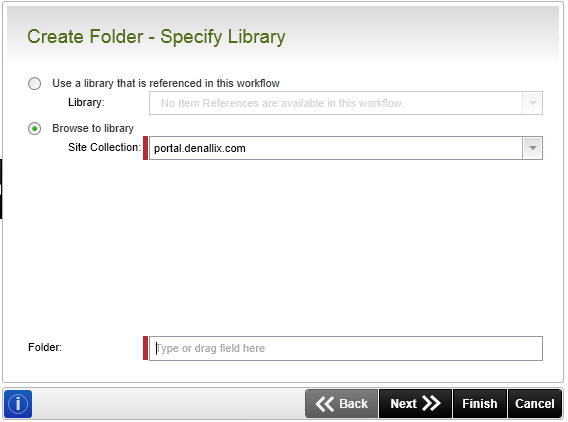

Specify Library
Select the SharePoint library where the folder should be created and specify the folder name.
| Field | Description | Sample Value |
|---|---|---|
| Use a library that is referenced in this workflow | Use this option if a reference was created earlier in this workflow. | Select the reference from the drop down list. |
| Browse to library | This property is populated with the default SharePoint Site Collection. | Choose a site collection from the available site collections that have the K2 for SharePoint app registered. If there is only one it is auto-selected. |
| Folder | Specify a name for the folder. | Type the value of the field, or drag a value from the Context Browser such as a pre-configured Data Field, Item Reference or a SmartObject Load method. Note that when a SmartObject Load method is used, an input property is required for the correct data to load. |
Specify Library (cont.)
