DocuSign - Create Envelope step

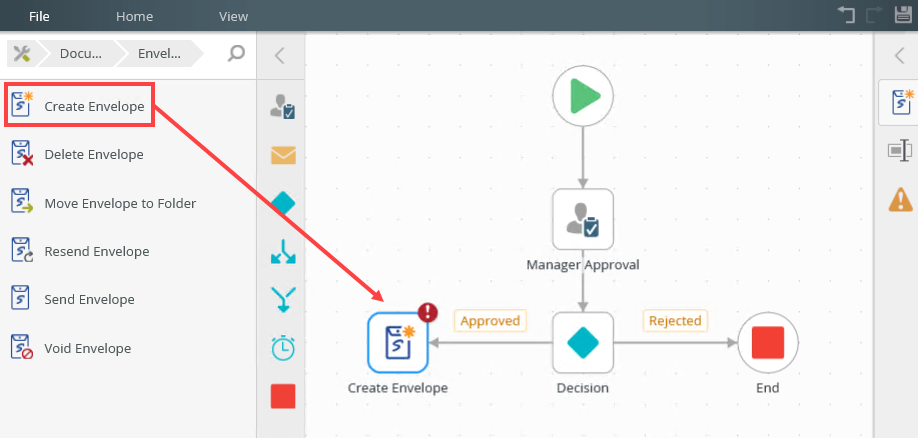

1. From the Toolbox click the DocuSign category, the Envelope category and then drag the Create Envelope step onto the canvas.

For more information on how to use the error console, see the Error Console topic.

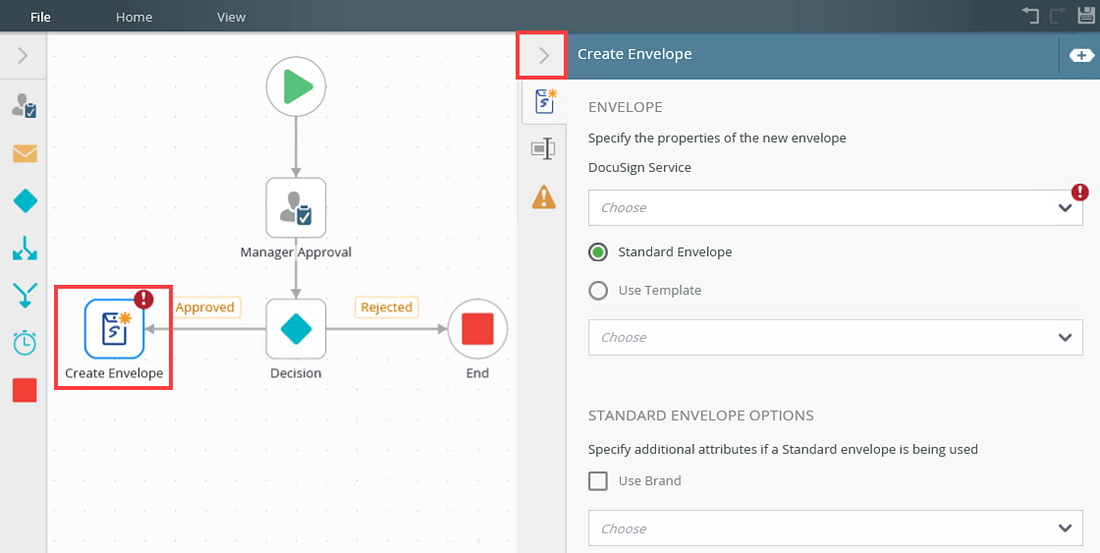

2. Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.

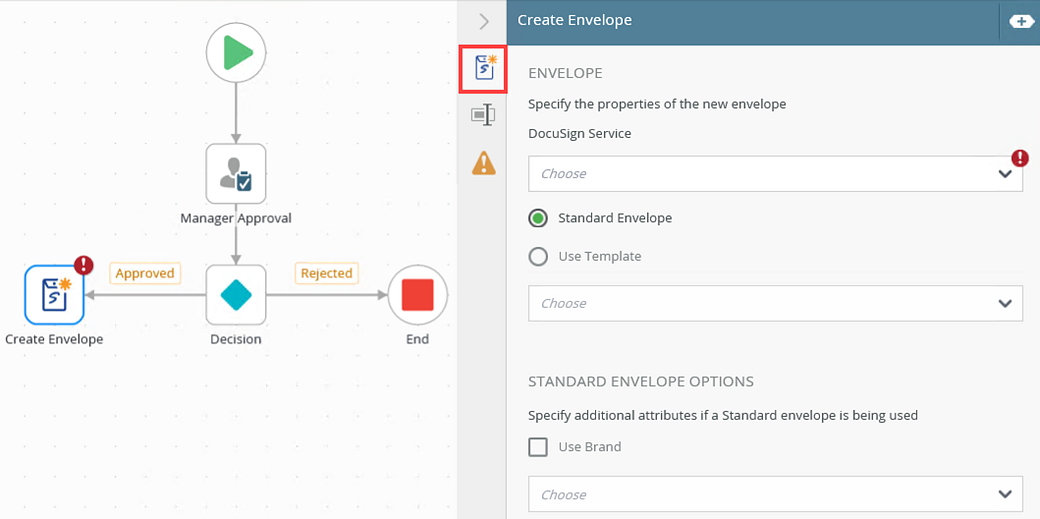

3. Select the Create Envelope tab. Use this tab to select the DocuSign service instance, envelope template, envelope options, and the notification and return property mappings.


The following table explains the options available on this tab:

Option	Explanation	How to Use
DocuSign Service	This is the service instance you registered to integrate with K2. You can register multiple service instances when needed, but only one is required. In the case where you have multiple service instances, and you have templates in another service instance, make sure the templates created in DocuSign are shared if you need them available for all service instances.	Select the service instance from the menu.
Standard Envelope	Allows you to create a standard DocuSign envelope.	Select the Standard Envelope radio button.
Use Template	Allows you to create a new envelope based on a template. This option is useful if you have templates defined for each business purpose.	Select the Use Template radio button. Select the template from the menu.
Standard Envelope Options
Use Brand	Allows you to use a specific brand created in DocuSign. Available brands are listed in the menu.	Select the brand from the menu.
Additional Options	A list of available DocuSign attributes are available when a Standard Envelope is used, and include: Allow Reassign Allow Recipient Recursion Authoritative Copy Enable Wet Sign Envelope Id Stamping Allow Mark-up Asynchronous Auto Navigation Enforce Signer Visibility Message Locked You can select one or multiple options. This is not required to create a new envelope.	Check the check boxes to select the options.
Subject	Use this field to add a subject to the message. Available for both Standard Envelope or Use Template option. This is a required field.	Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. When a SmartObject Load method property is used, an input property is required for the correct data to load.
Body	Use this field to add customize the body of the message. Available for both Standard Envelope or Use Template option. This is a required field.	Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.
Return Property Mappings	Return properties listed here are mapped to variables. This allows you to make use of these values in other steps in the workflow. Create a field and drag it from the Context Browser to the return property. The value of this property is stored in the variable for each workflow instance.	Select properties and supply return values. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. When a SmartObject Load method property is used, an input property is required for the correct data to load. Click Add to add additional property fields.

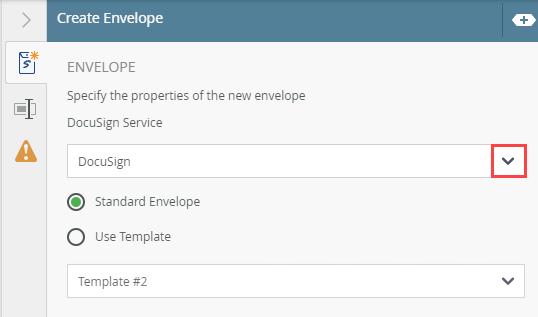

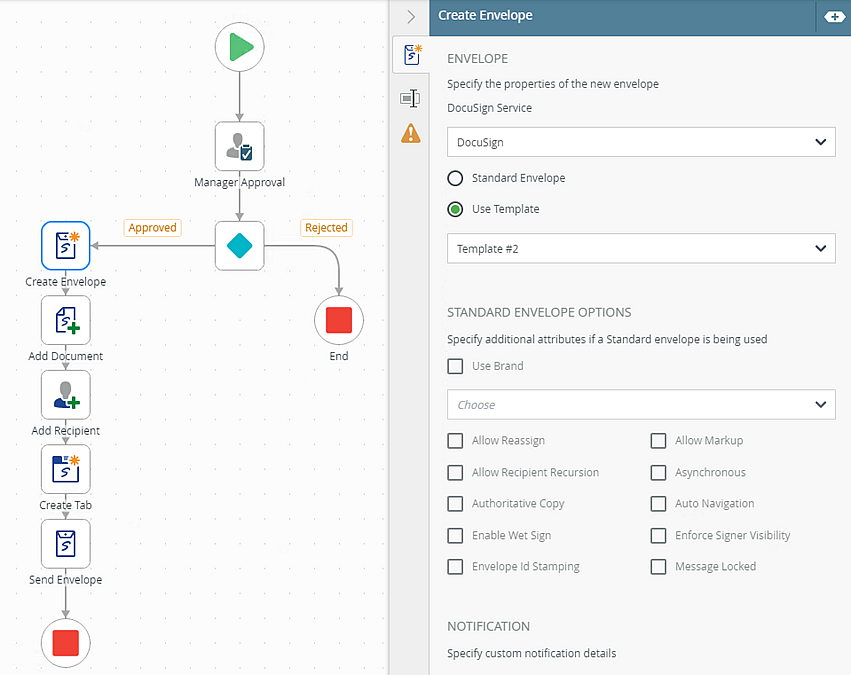

4. From the DocuSign Service menu, select the service instance. Select Standard Envelope or Use Template.

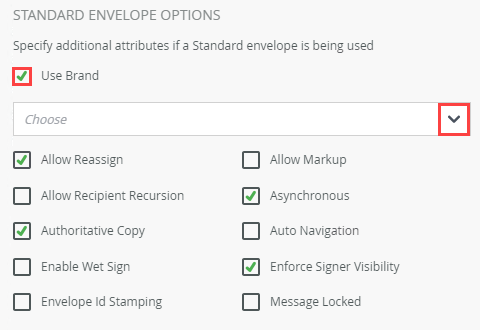

5. If you use a standard envelope, select additional attributes from the Standard Envelope Option section. Check the Use Brand check box to enable the menu. Select a brand from the menu and select one or more DocuSign attributes.

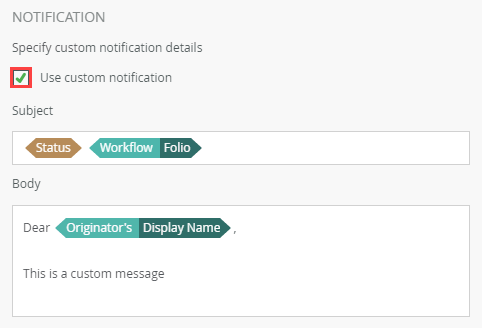

6. If you use a template, use the Notification section to customize the notification. Use the Subject and Body fields to customize the message. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

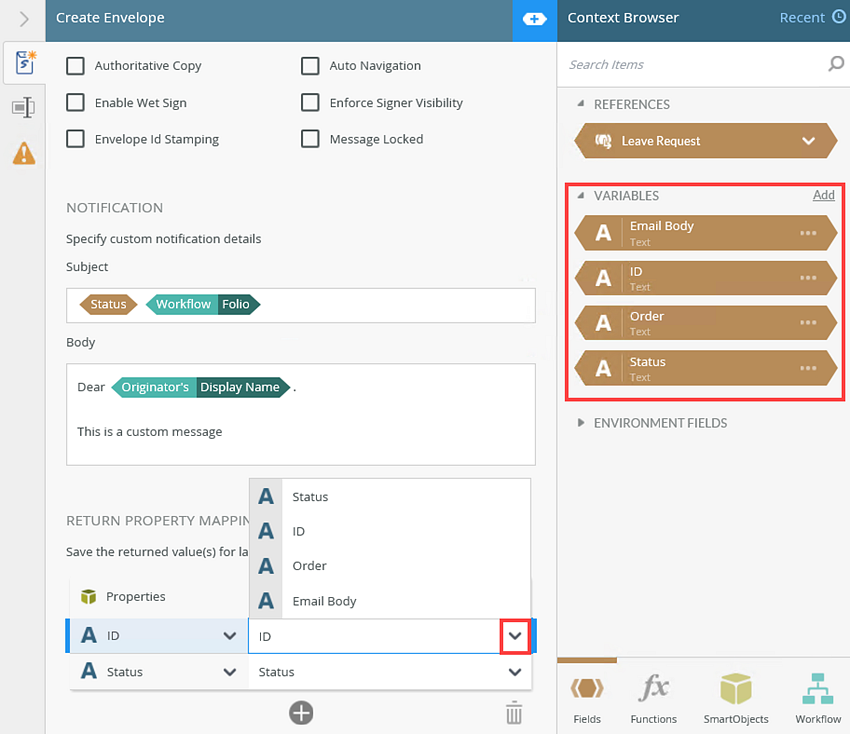

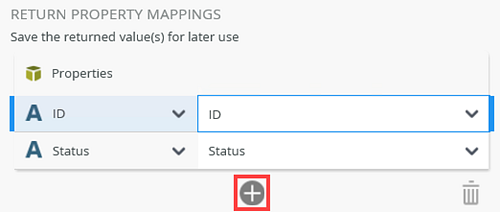

7. Configure the Return Property Mappings. Click Add to add properties. Select a value from the property menu.

8. To add additional properties, click Add.

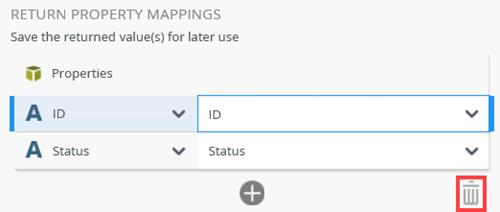

9. To delete properties, select them and click the Trash bin.

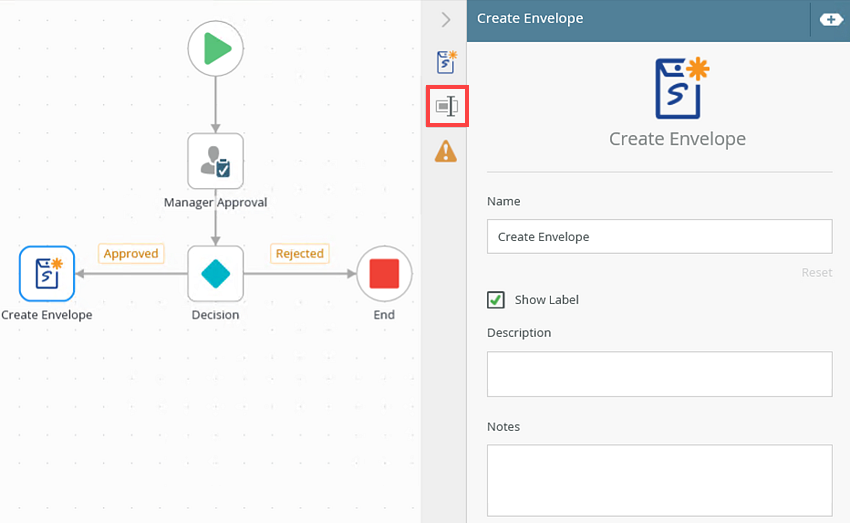

10. With the step selected, select the Properties tab.


The following table explains the options available on this tab:

Option	Explanation	How to Use
Title / Name	By default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.	Enter a value into the Title/Name field.
Reset link	Use the link to reset any changes to the title.	Click the Reset link to reset the Title/Name field to default value.
Show Label	Allows you to see the step label on the canvas. The label shows the value of the title.	Check the check box to display step label on the canvas.
Description	Allows you to add a detailed description for the step.	Enter a value into the Create Newfield.
Notes	Allows you to add additional notes for the step.	Enter a value into the Notes field.

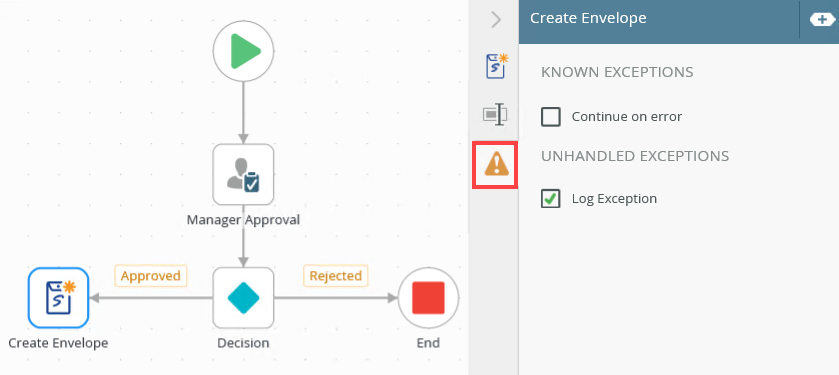

11. Click the Errors tab.


Different types of exceptions can occur on a step, such as:

Type	Description
Known exceptions	Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
Unhandled exceptions	Any unknown runtime exceptions.

The tab contains the following known exceptions:

Exception	Explanation	How to Use
Continue on error	If an error occurs when the step executes at runtime, this configuration specifies whether to continue to the next step in the workflow, or not.	Check the check box to continue the workflow even if an error occurs in the step. Uncheck the check box to stop workflow execution if an error occurs. In this case, the workflow will go into an Error state and an administrator will need to Retry the error before the workflow will resume.

The tab contains the following unhandled exception:

Exception	Explanation	How to Use
Log Exception	Logs the exception to the error log.	Check the box to log the exception.

12. Your changes are automatically saved.

When working with the Create Envelope step keep in mind the following consideration:

• The DocuSign Service Instance must be registered before using this wizard. For information on how to do this, see DocuSign feature activation.
• Use the Create Envelope step first, which is typically the starting point when building a workflow containing DocuSign steps
