Servers

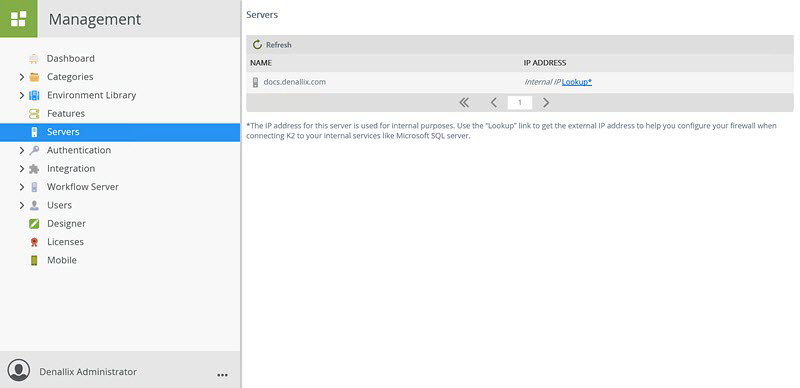

The Servers node lists the discovered K2 servers in the network, as well as allowing you to retrieve the external IP address of each server.

You can use the Lookup* option to retrieve the external/public IP addresses of a server. The IP address is often used to configure a firewall when connecting K2 to services on a separate network, for example when you want to connect to a Microsoft SQL server with the SQL Server service type, or if you need to set up inbound/outbound traffic rules to allow users or systems in a secured network to connect to the K2 server.

You can change the default provider used for the Lookup* option, by editing the ExternalIPLookupServiceURL field on the Environment Library node in K2 Management.

Discovery of K2 servers is performed using a discovery port (default port 49600, but this port number may differ depending on the configuration of your environment). If needed, you can disable the discovery port as described in the KB article KB001221: How to switch off the K2 server discovery feature.

Use the Refresh button to reload the list of servers.

Follow the steps below to use the Lookup* option.

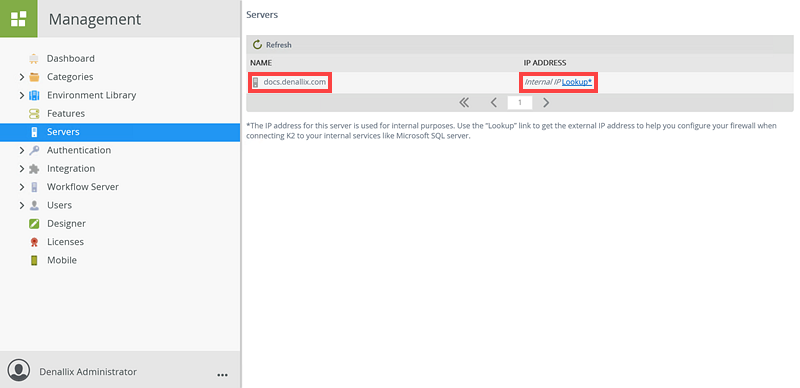

  1. Select a K2 Server and click Lookup*.

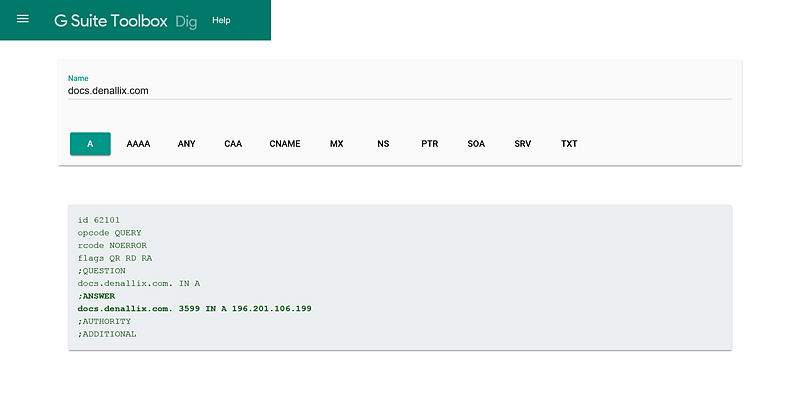

  2. A new tab opens in your browser displaying G Suite Toolbox Dig. This tool displays all external IP addresses connecting to the K2 Server. Use the IP addresses to configure your firewall when connecting K2 to your internal services such as Microsoft SQL server.

Follow the steps below to edit the Lookup* provider in K2 Management.

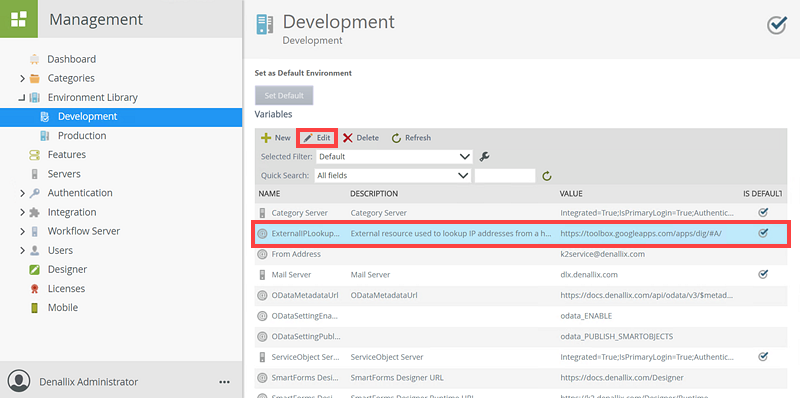

  1. Open K2 Management and navigate to the Environment Library node.
  2. Select the ExternalIPLookupServiceURL variable and click Edit.

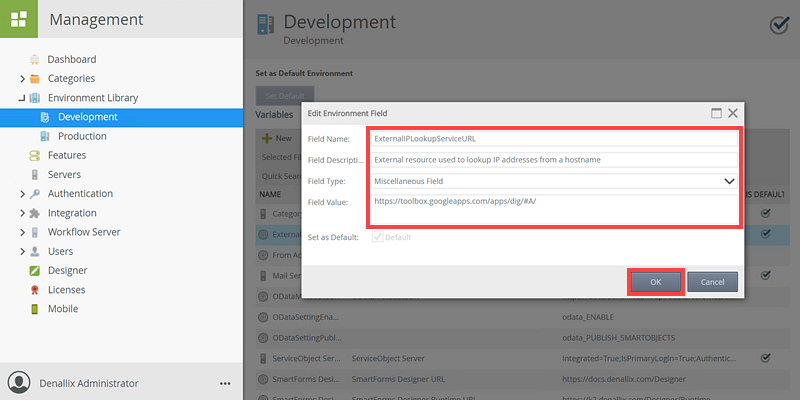

  3. On the Edit Environment Field page, edit the required fields and click OK.
