Set Folio Step

The purpose of a folio is to provide a unique label for each instance of a workflow. Use the Set Folio step to configure the folio value. This value is typically visible on your task list and various reports, and provides a helpful mechanism to identify different instances of the same workflow.

Use the Set Folio step in the following scenarios:

Provide a unique tag for each instance of a workflow
Use the value to make static text or dynamic values visible throughout the lifetime of a process instance
Use the Set Folio step to change the folio value at any point in the workflow. This can be useful to track changing values throughout the workflow lifecycle, such as when a time frame (such as a ship date) needs to be recalculated.

Drag the Set Folio step from the Basic category, Favorites bar, or the Recent category onto the canvas.

Example of a Set Folio step in a workflow

How to add a Set Folio step

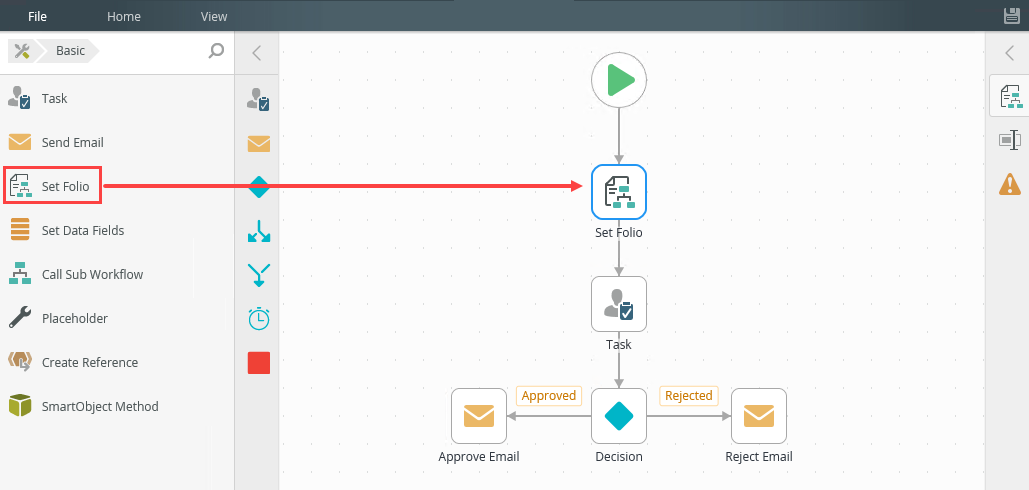

From the Toolbox click the Basic category, then drag the Set Folio step onto the canvas.

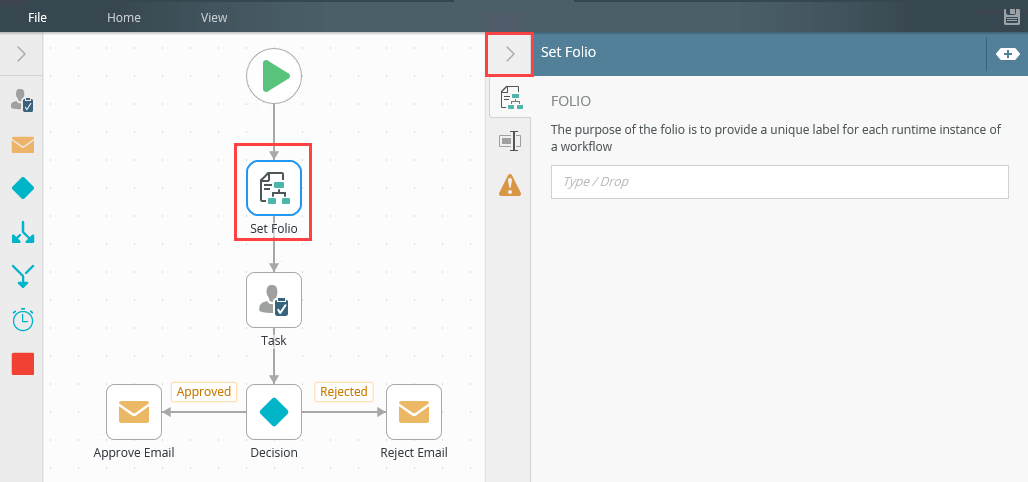

Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.

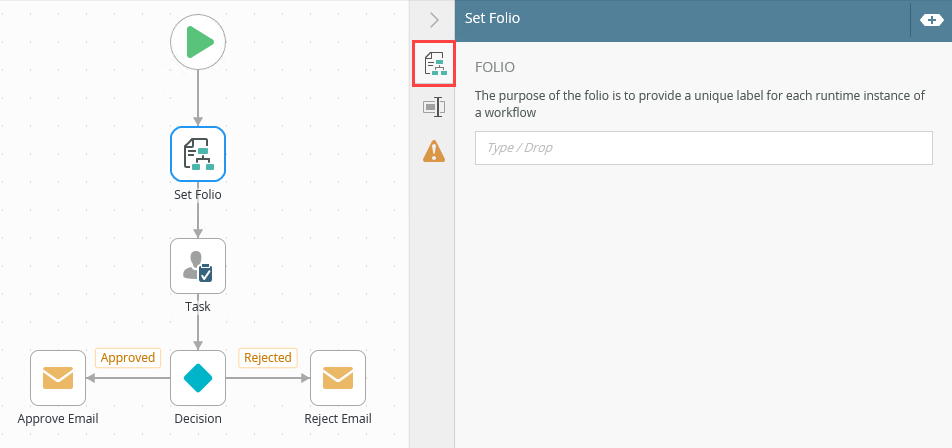

Select the Set Folio Detail tab. The value entered is used as a unique reference to a running workflow instance.

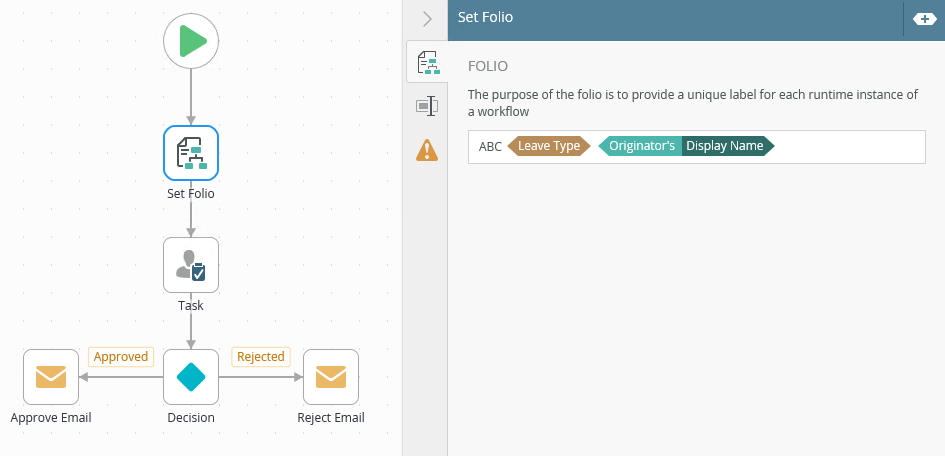

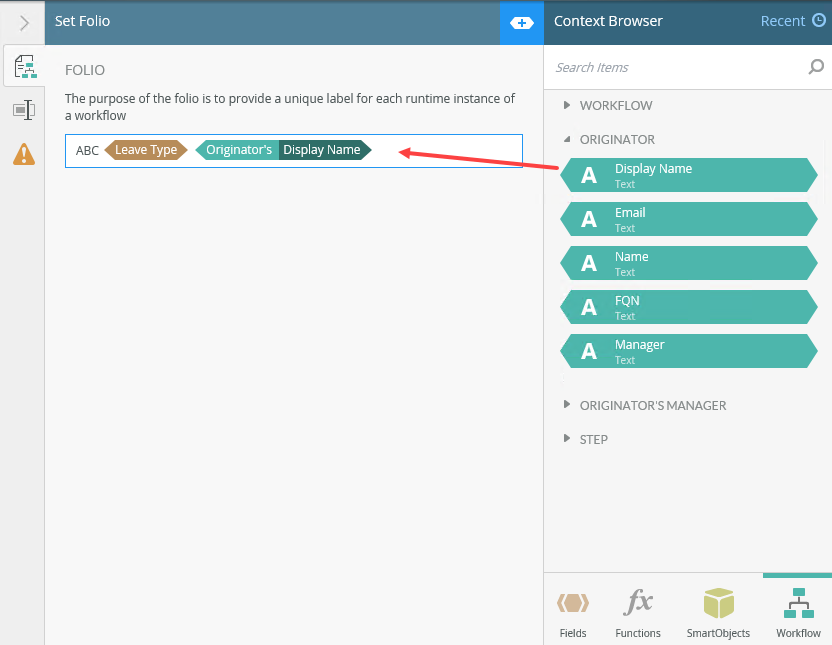

Customize the folio field with a combination of text and values. You can drag Functions, Fields, SmartObjects and Workflow related items from the Context Browser into this field.

For more information on how to use fields, functions, SmartObjects, and workflow context, see the Context Browser topic.

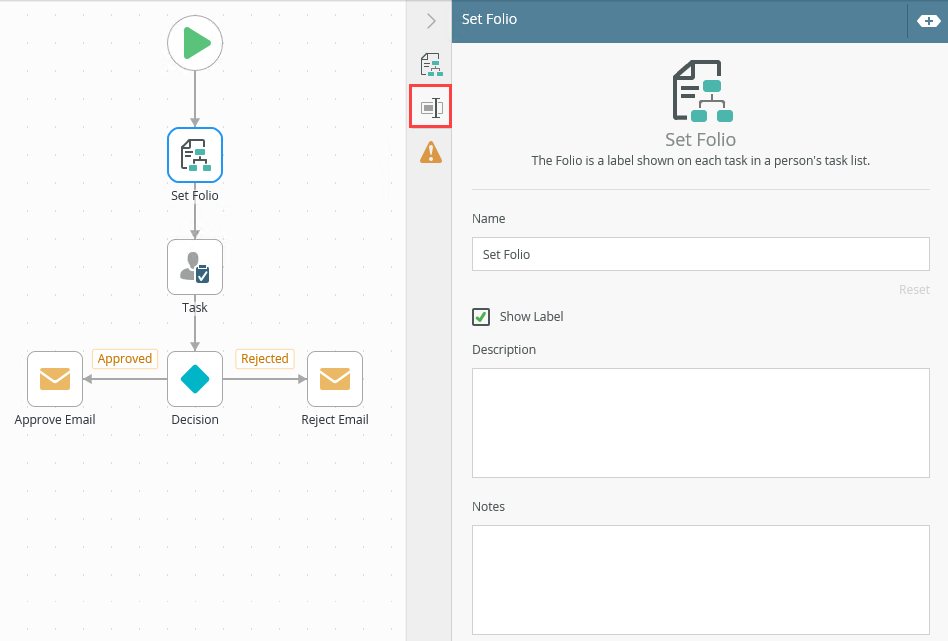

With the step selected, select the Properties tab.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Title / Name	By default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.	Enter a value into the Title field.
Reset link	Use the link to reset any changes to the title.	Click the Reset link to reset the Title field to default value.
Show Label	Allows you to see the step label on the canvas. The label shows the value of the title.	Check the check box to display step label on the canvas.
Description	Allows you to add a detailed description for the step.	Enter a value into the Description field.
Notes	Allows you to add additional notes for the step.	Enter a value into the Notes field.

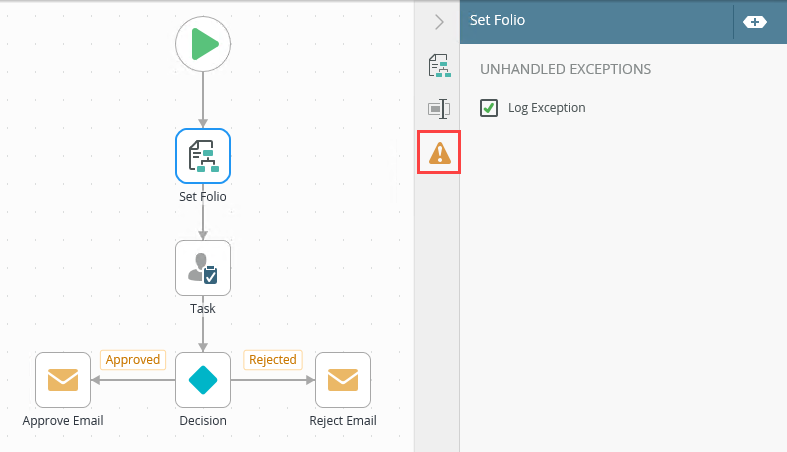

Click the Errors tab.

Different types of exceptions can occur on a step, such as:

Type	Description
Known exceptions	Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
Unhandled exceptions	Any unknown runtime exceptions.

The tab contains the following unhandled exception:

Exception	Explanation	How to Use
Log Exception	Logs the exception to the error log.	Check the box to log the exception.

Your changes are automatically saved.
