Start Step

The Start step is automatically added to a workflow and shows where the workflow starts. The Start step contains the logic for the workflow start rule. For more information on different ways to start a workflow, see the Starting a Workflow topic.

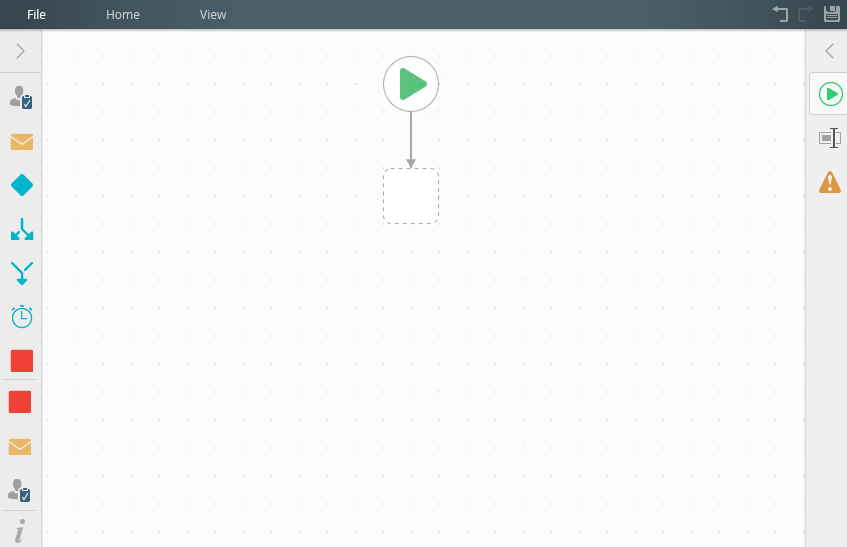

Example of the Start step in a workflow

  1. The Start step is automatically added onto the canvas.
  2. Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.
  3. With the Start step selected, click on the Start Events tab.

    4. From the Start Events tab, select how the Start step starts the workflow. The following table explains the available options:

    Option Explanation How to Use
    Start with a Form When submitting a form you can configure it to start a workflow. Click the Start with a Form link.
    Start with a SharePoint List Use this option to start the workflow by configuring a SharePoint event. Click the Start with a SharePoint List link.
  4. For detailed information on how to start a workflow with a form or with a SharePoint event, see the Start a Workflow with a Form and the Start a Workflow with a SharePoint Event topics.
  5. With the step selected, select the Properties tab.

    The following table explains the options available in this section:

    OptionExplanationHow to Use
    Process NameUse this option to change the workflow name.Enter value into the Process Name field.
    DescriptionUse this field to add a detailed description for the selected step. This field allows you to add multiple lines of text.Add a value into the Description field.
    PriorityUse this field to select the priority level for the selected step. You can select between Low, Medium, or High priority.Select the value from the Priority drop-down menu.
  6. Click the Errors tab.

    7. Different types of exceptions can occur on a step, such as:

    Type Description
    Known exceptions Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
    Unhandled exceptions Any unknown runtime exceptions.

    The tab contains the following unhandled exception:

    Exception Explanation How to Use
    Log Exception Logs the exception to the error log. Check the box to log the exception.

  7. Your changes are automatically saved.

When working with the Start step keep in mind the following considerations:

  • The start step can only have one outgoing line
  • You can not add an incoming line to the start step
  • The start step cannot be added to a multi-step
  • The start step cannot be made into a multi-step
  • The start step cannot be deleted
  • You can only have one start step per workflow
