Discard Document Checkout step

This step is not supported when using the Nintex Automation for SharePoint app.

Use the Discard Document Checkout step to discard a check out of a SharePoint document. You can, for example, use the Discard Document Checkout step in a business application to undo any changes made to a document if these changes are not approved.

Discarding the check out reverts the document to its previous state. Any changes to the document are lost.

To use the SharePoint steps in Workflow Designer, you must have SharePoint installed in your environment. To see the version of SharePoint that the product supports, view the Compatibility and Support Matrix.

Drag the Discard Document Checkout step from the SharePoint category, Favorites bar, or the Recent category onto the canvas.

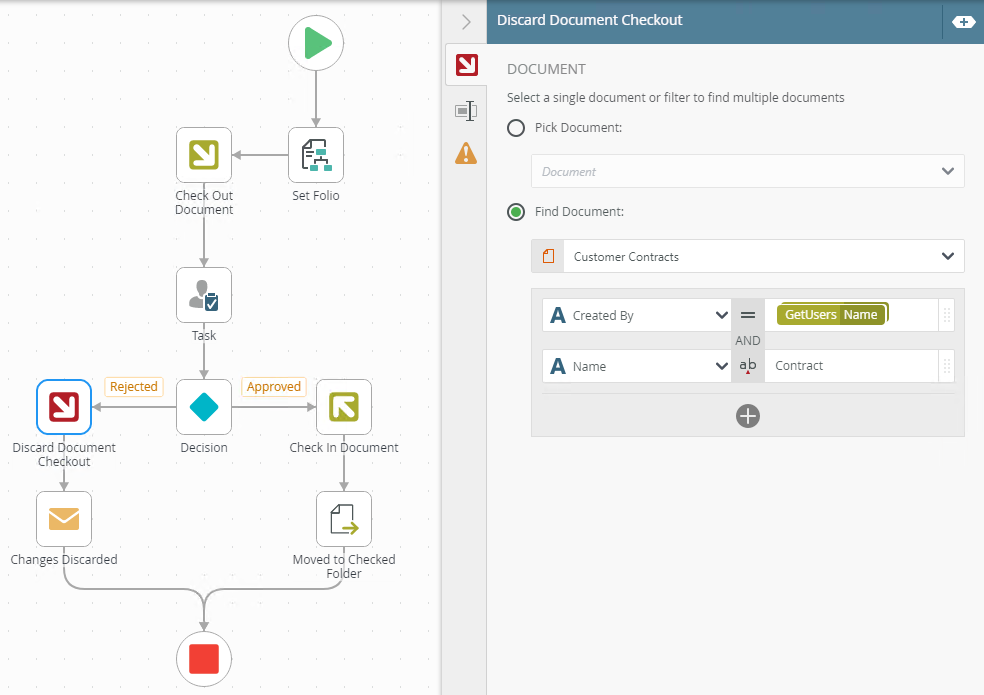

Example of a Discard Document Checkout step in a workflow

How to add a Discard Document Checkout step

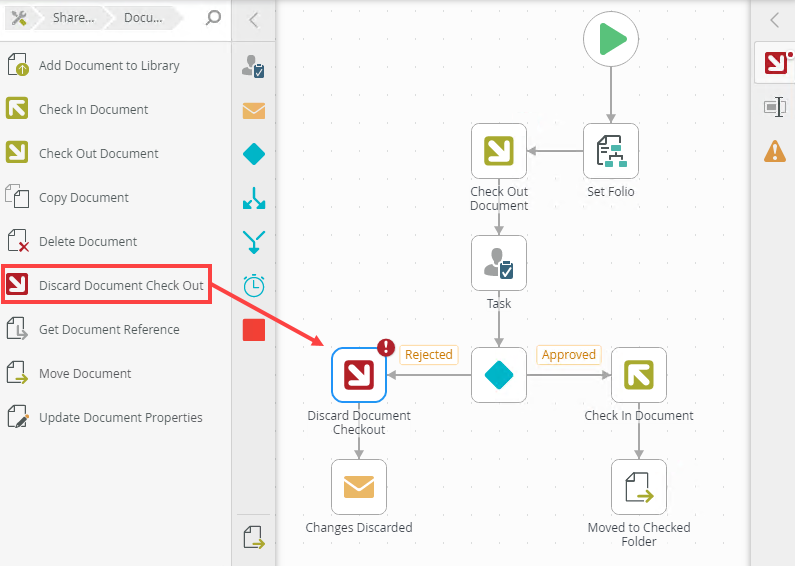

From the Toolbox click the SharePoint category, the Document category, and then drag the Discard Document Checkout step onto the canvas.

Error Console

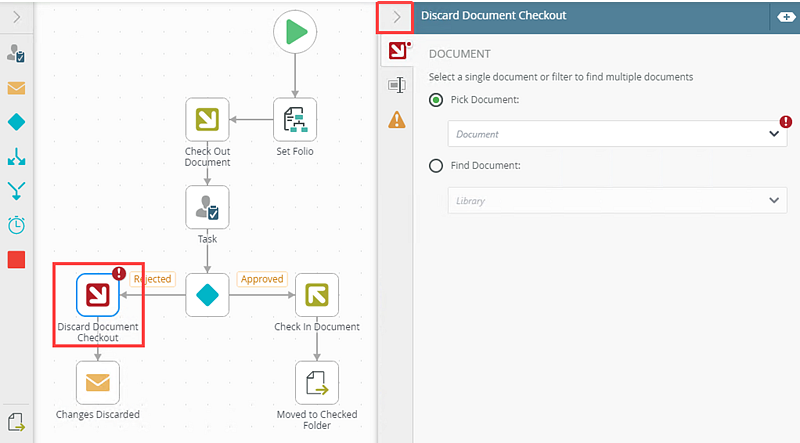

Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.

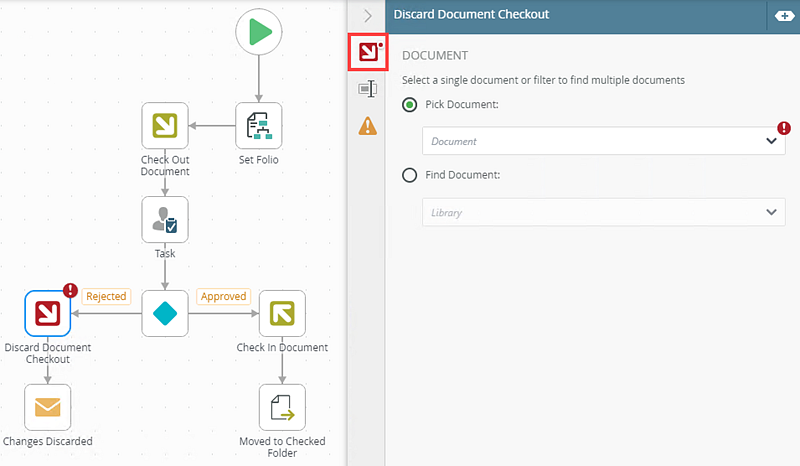

Select the Discard Document Checkout tab. Use this tab to configure the step's properties.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Pick Document	Use this to pick a referenced document. The menu contains a list of referenced documents in the workflow.	Select the Pick Document radio button to enable this option. Click the menu and select the reference name.
Find Document	Use this to browse to the library containing the desired document.	Click the Find Document radio button to enable this option. Click the menu and select Browse to browse to a specific one.
Filters	The filter allows you to specify parameters and filters to return data. Applying filters is optional. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains. Parameters are sometimes required - it depends on the SmartObject method selected. If the method has parameters, you probably need to provide values for those parameters to execute the method.	Click the Add Filter link to add filters. Select filter values from the drop-down menu. Click the operator button to select the operator. Click Add to add additional filter properties Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. To delete properties, select them and click the Trash bin.

Option

Explanation

How to Use

Pick Document

Use this to pick a referenced document. The menu contains a list of referenced documents in the workflow.

Select the Pick Document radio button to enable this option.

Click the menu and select the reference name.

Find Document

Use this to browse to the library containing the desired document.

Click the Find Document radio button to enable this option.

Click the menu and select Browse to browse to a specific one.

Filters

The filter allows you to specify parameters and filters to return data.

Applying filters is optional. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains.

Parameters are sometimes required - it depends on the SmartObject method selected. If the method has parameters, you probably need to provide values for those parameters to execute the method.

Click the Add Filter link to add filters.

Select filter values from the drop-down menu.

Click the operator button to select the operator.

Click Add to add additional filter properties

Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

To delete properties, select them and click the Trash bin.

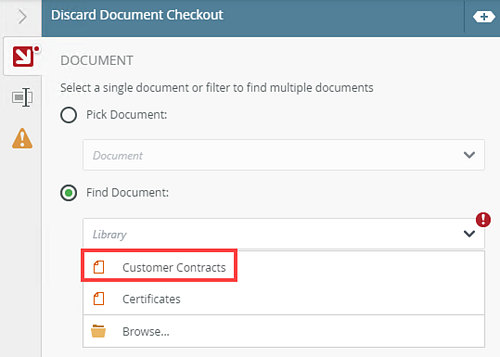

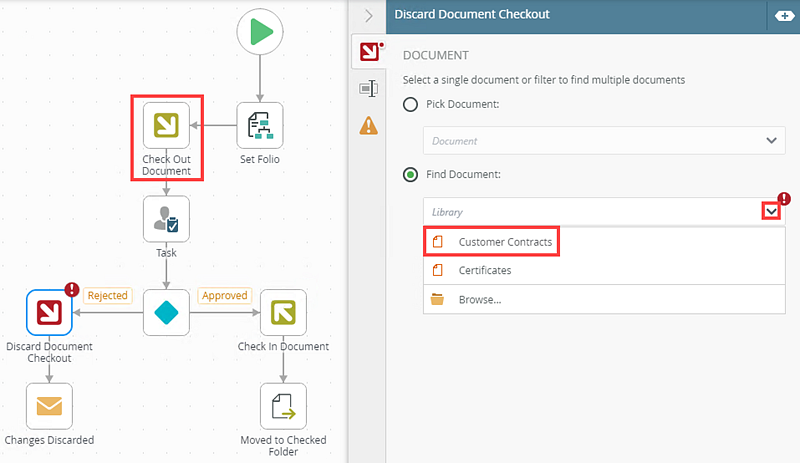

From the Document section, select either Pick Document (select a referenced document from the menu) or Find Document (browse to the document). In this example, select Find Document. From the menu select Browse and navigate to a location of the document to discard the check out on. Notice that the library selected in the Check Out Document step shows in the menu.
In this example, select the referenced document library and click OK.

For more information about the different browse states and errors, see the Browse States topic.

For more information on how to use the breadcrumb bar, see the How to use the Breadcrumb topic.

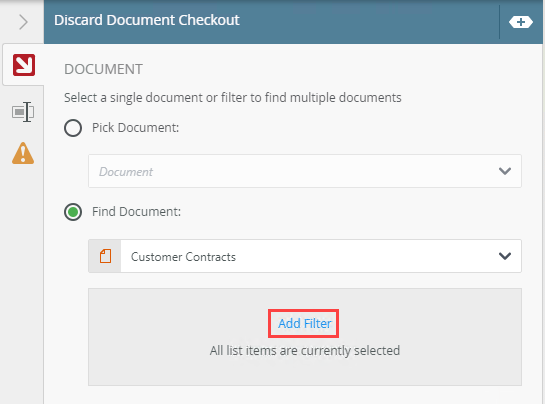

Click the Add Filter link to specify parameters and filters.

While applying filters is optional, it is generally used in order to specify exactly which documents should be affected by this action. Parameters depend on the SmartObject method and are sometimes required. The filter may have a positive impact on performance by limiting the number of records returned. When you create a filter, only records that match the filter criteria are returned.

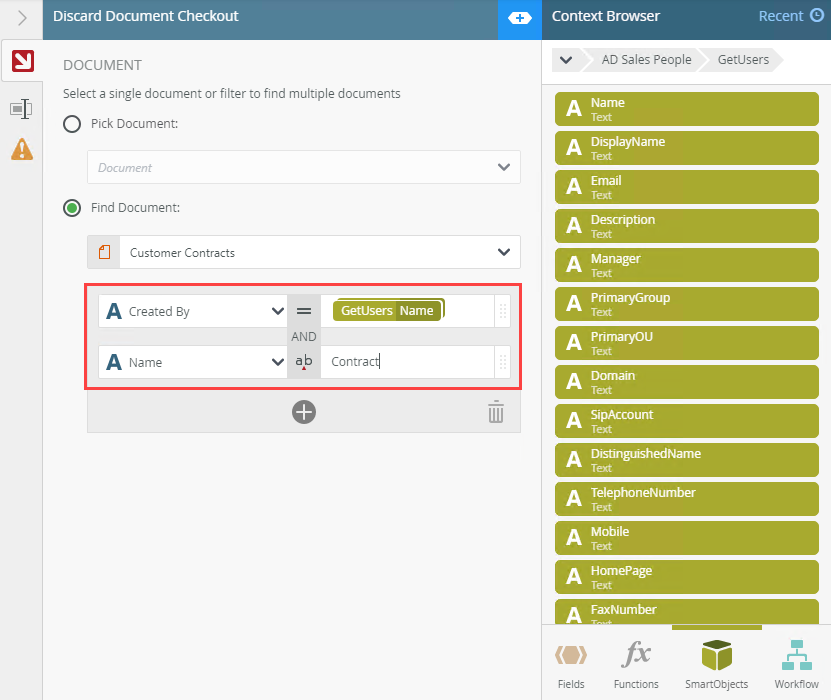

Select a property from the menu. Select an operator to define the filter. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

For more information on how to use Smartfields see the Smartfield Composer topic. Added filters can be grouped together to form parameters. To group parameters, click the AND button.

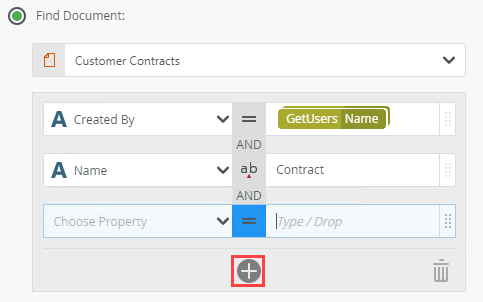

In the Filters section, click Add to add a property.
To delete properties, select them and click the Trash bin.

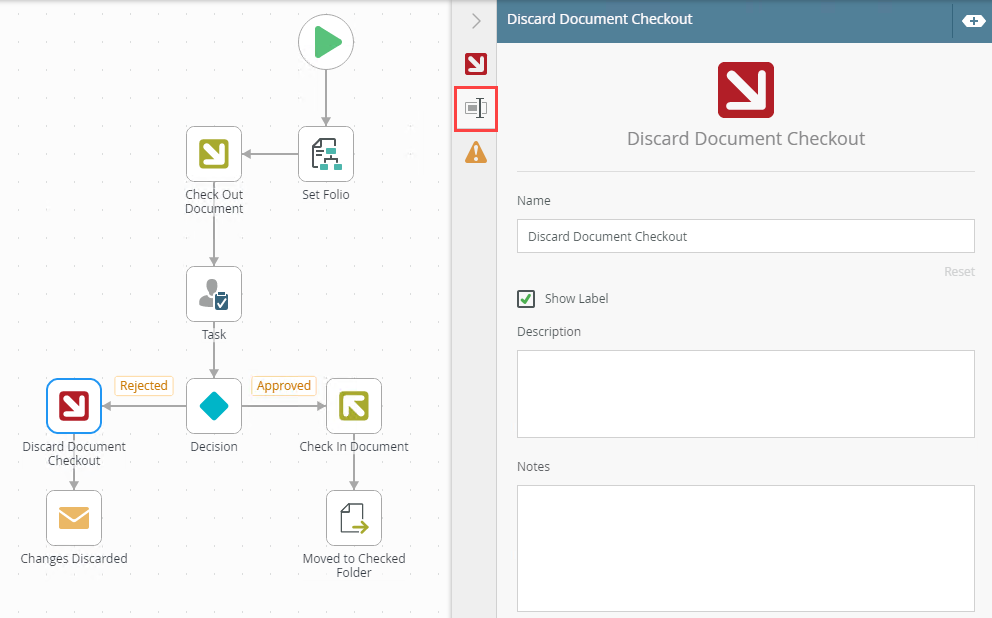

With the step selected, select the Properties tab.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Title / Name	By default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.	Enter a value into the Title/Name field.
Reset link	Use the link to reset any changes to the title.	Click the Reset link to reset the Title/Name field to default value.
Show Label	Allows you to see the step label on the canvas. The label shows the value of the title.	Check the check box to display step label on the canvas.
Description	Allows you to add a detailed description for the step.	Enter a value into the Create New field.
Notes	Allows you to add additional notes for the step.	Enter a value into the Notes field.

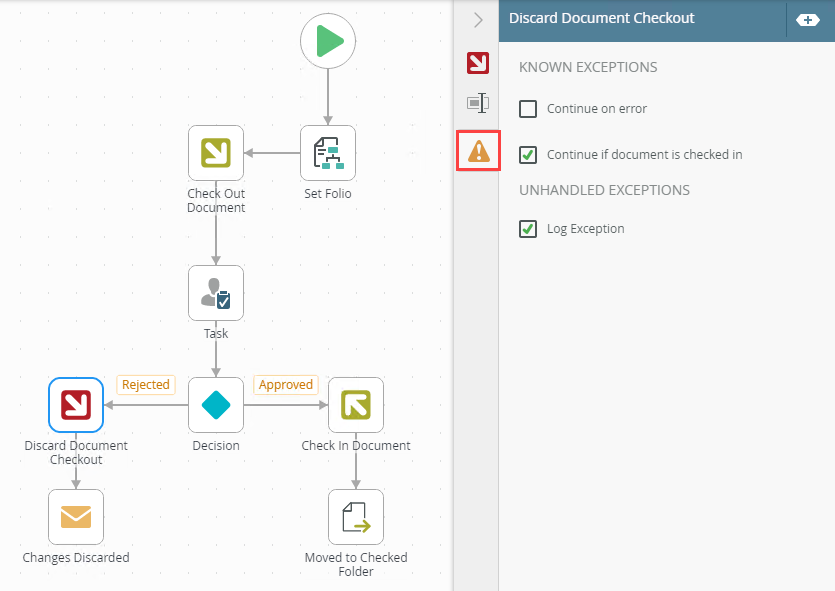

Click the Errors tab.

Different types of exceptions can occur on a step, such as:

Type	Description
Known exceptions	Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
Unhandled exceptions	Any unknown runtime exceptions.

The tab contains the following known exception:

Exception	Explanation	How to Use
Continue on error	On step execution and an error occurs, continue to the next step in the workflow.	Check the check box to continue the workflow.
Continue if document is checked in	On step execution and the added document is checked in, the following options are available: If the option is selected - the instance continues to the next step in the workflow. If the option is not selected - Runtime exception error occurs.	Check the check box to continue to the next step if document is checked out. Uncheck the check box causes Runtime exception error.

Exception

Explanation

How to Use

Continue on error

On step execution and an error occurs, continue to the next step in the workflow.

Check the check box to continue the workflow.

Continue if document is checked in

On step execution and the added document is checked in, the following options are available:

If the option is selected - the instance continues to the next step in the workflow.
If the option is not selected - Runtime exception error occurs.

Check the check box to continue to the next step if document is checked out.

Uncheck the check box causes Runtime exception error.

The tab contains the following unhandled exceptions:

Exception	Explanation
Log Exception	Logs the exception to the error log.
Force error when required SmartObject inputs are missing	Will forcefully throw an error if a SmartObject method has input missing.
Continue on error	Will force the workflow to continue running the SmartObject method, even if it runs into an error.

The exceptions in the table above is an example of those available in Workflow steps. The exceptions available depend on the Workflow step used in the design canvas.

Your changes are automatically saved.
