Check in Document step

This step is not supported when using the Nintex Automation for SharePoint app.

Use the Check in Document step to check in a document to SharePoint. You can, for example, use the Check in Document step in a business application to check in a document that has been checked out during an earlier step within your workflow. For more information on how to check out a document, see the Check Out Document step topic.

To use the SharePoint steps in Workflow Designer, you must have SharePoint installed in your environment. To see the version of SharePoint that the product supports, view the Compatibility and Support Matrix.

Drag the Check in Document step from the SharePoint category, Favorites bar, or the Recent category onto the canvas.

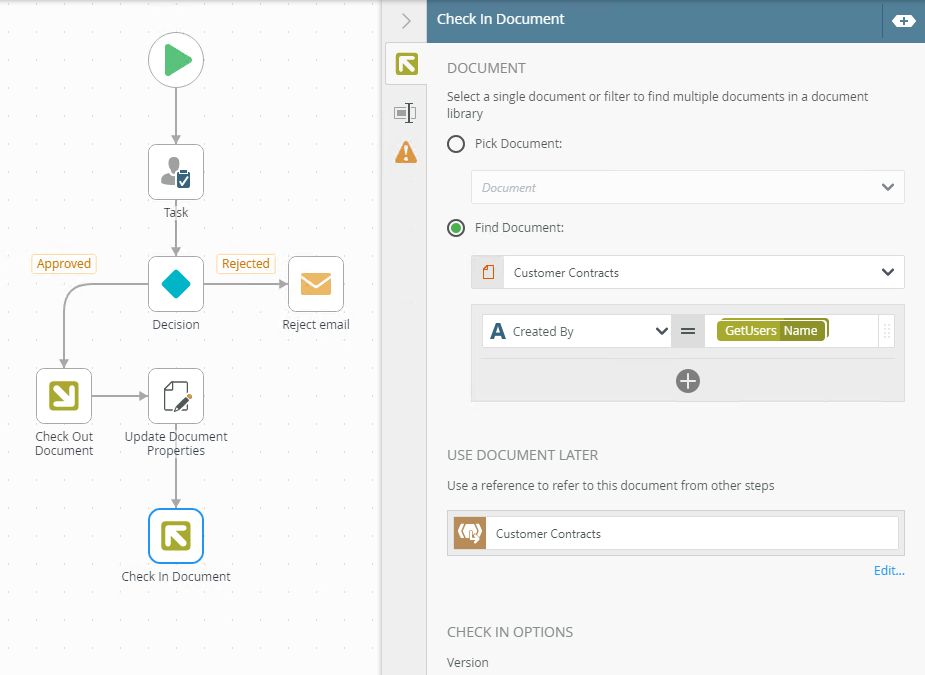

Example of a Check in Document step in a workflow

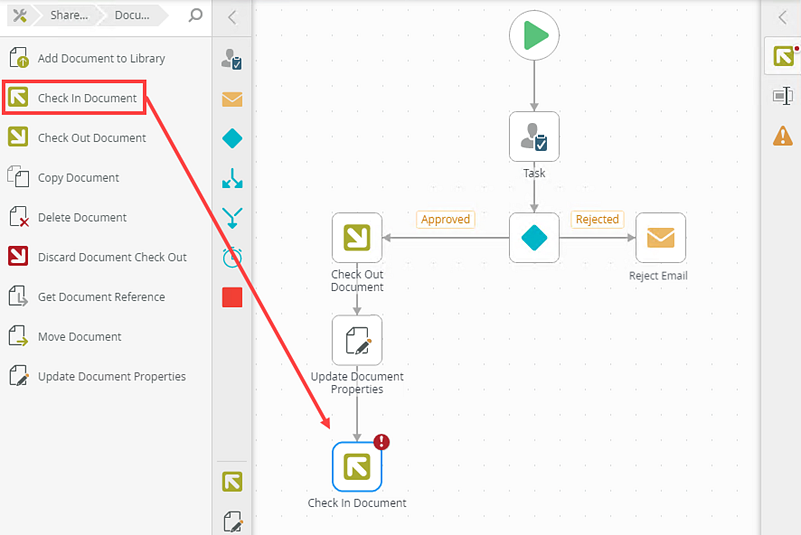

  1. From the Toolbox click the SharePoint category, the Document category, and then drag the Check in Document step onto the canvas.
    2. For more information on how to use the error console, see the Error Console topic.

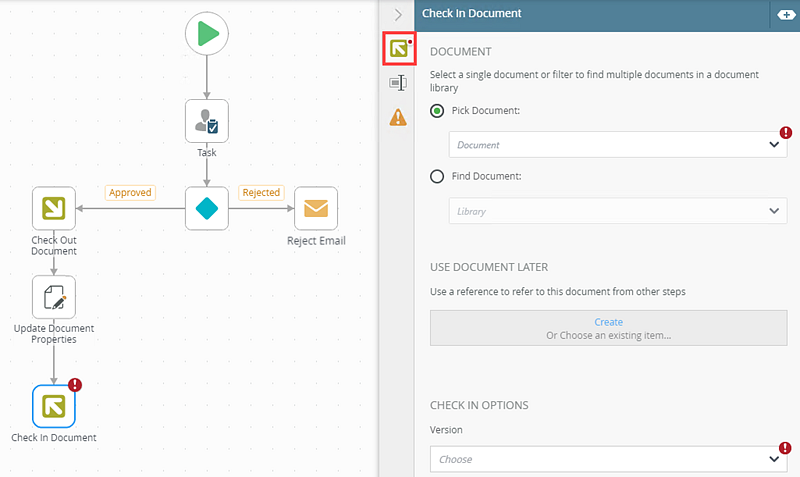

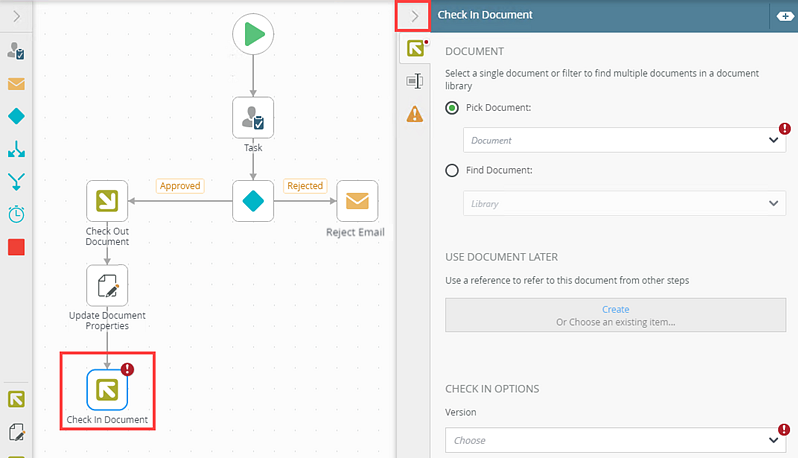

  2. Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.
  3. Select the Check in Document tab. Use this tab to configure the step's properties.

    4. The following table explains the options available on this tab:

    OptionExplanationHow to Use
    Pick Document

    Use this to pick a referenced document. The menu contains a list of referenced documents in the workflow.

    If you don't see items in the menu, you need to create a SharePoint referenced item using a SharePoint reference step within the workflow.

    Select the Pick Document radio button to enable this option.

    Click the menu and select the reference name.

    Find Document

    Use this to browse to the library containing the desired document.

    		Click the Find Document radio button to enable this option.

    Click the menu and select Browse to browse to a specific one.

    Filters

    The filter allows you to specify parameters and filters to return data.

    Applying filters is optional. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains.

    Parameters are sometimes required - it depends on the SmartObject method selected. If the method has parameters, you probably need to provide values for those parameters to execute the method.

    Click the Add Filter link to add filters.

    Select filter values from the drop-down menu.

    Click the operator button to select the operator.

    Click Add to add additional filter properties

    Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    To delete properties, select them and click the Trash bin.

    Use Document LaterUse this option to create a reference to the document that can be used in other steps within the workflow.

    Click the Create link to create a reference.

    Click the Edit link to edit the reference name. If you edited the reference name and want to reset it, click the Reset Name link.

    Check in Options
    Version

    Specify what document version should be checked in. Select one of the following options:

    • Minor Version
    • Major Version
    		Click the menu and select the version.
    Retain check out after checking inSelect this if the documents is to remain checked out to the current user. A version of the document is created and checked in to the library while the actual document remains checked out to the user for further editing.Check or uncheck the Retain check out after checking in check box.
    CommentsUse this to add a check in comment for the document. The check in comments shows what changes were made to the document.

    Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

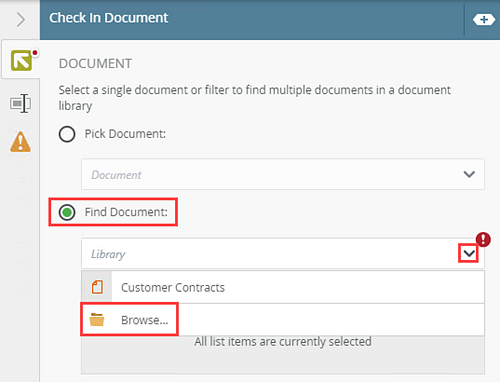

  4. From the Document section, select either Pick Document (select a referenced document from the menu) or Find Document (browse to the document). In this example, select Find Document. From the menu select Browse and navigate to a location of the document to check in.

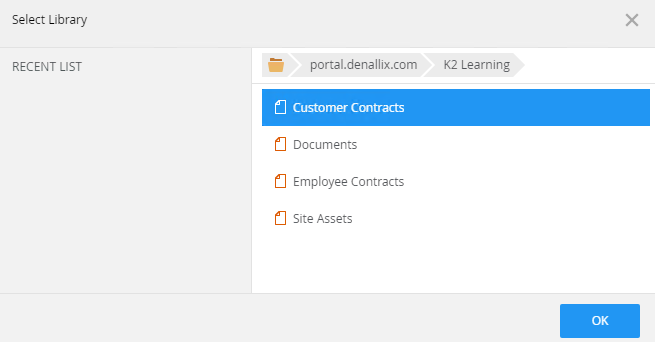

  5. Select the library and click OK.

    6. For more information about the different browse states and errors, see the Browse States topic.

    For more information on how to use the breadcrumb bar, see the How to use the Breadcrumb topic.

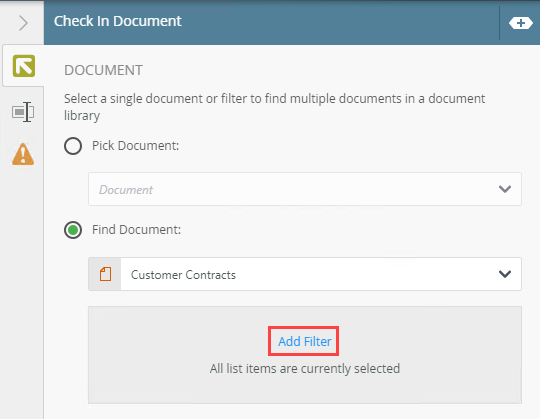

  6. Click the Add Filter link to specify parameters and filters.
    7. Applying filters is optional. Parameters depend on the SmartObject method and are sometimes required. The filter may have a positive impact on performance by limiting the number of records returned. When you create a filter, only records that match the filter criteria are returned. Applying filters is commonly used when the Find Document option is selected.

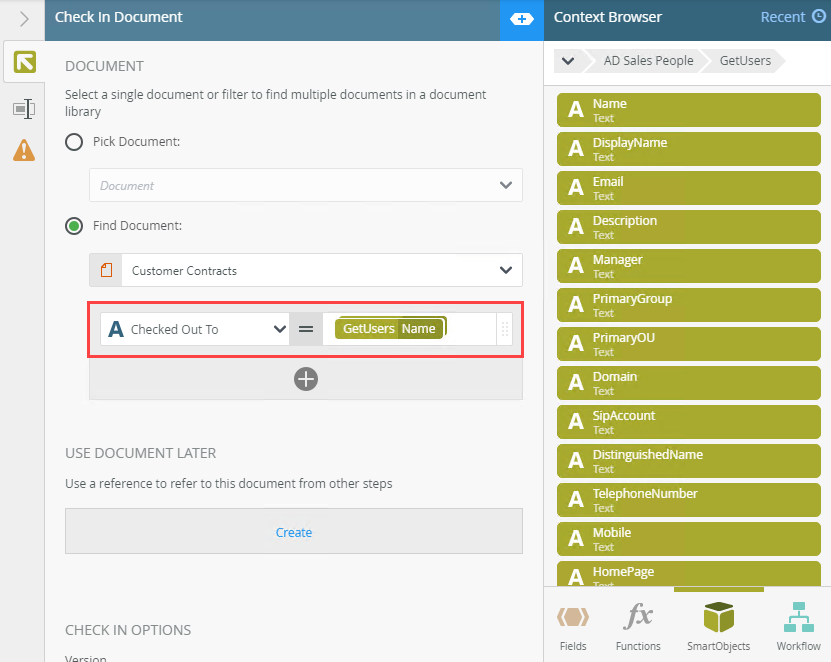

  7. Select a property from the menu. Select an operator to define the filter. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    8. For more information on how to use Smartfields see the Smartfield Composer topic. Added filters can be grouped together to form parameters. To group parameters, click the AND button.

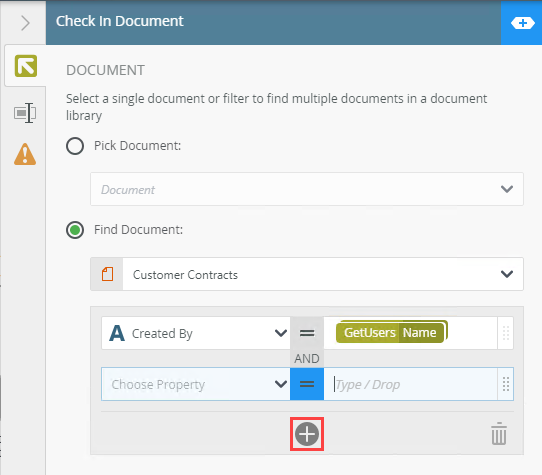

  8. In the Filters section, click Add to add a property.

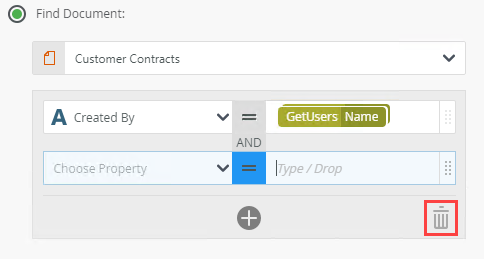

  9. To delete properties, select them and click the Trash bin.

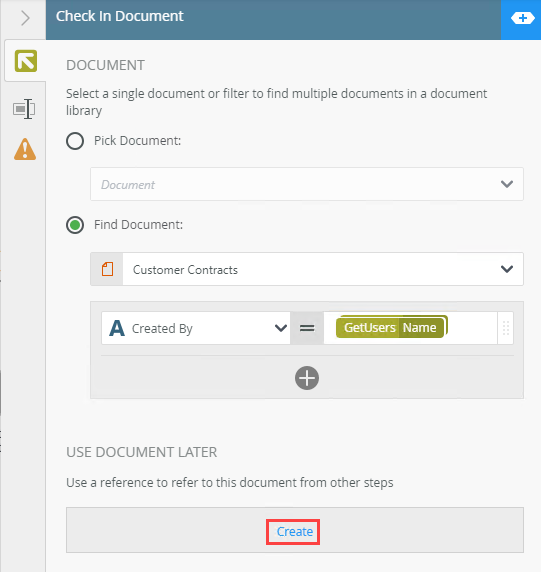

  10. To create a reference click Create. Reuse this reference in the current step or from another step in your workflow.

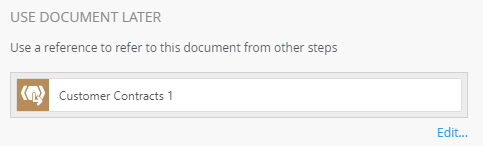

  11. To edit the auto-generated reference title, click Edit.

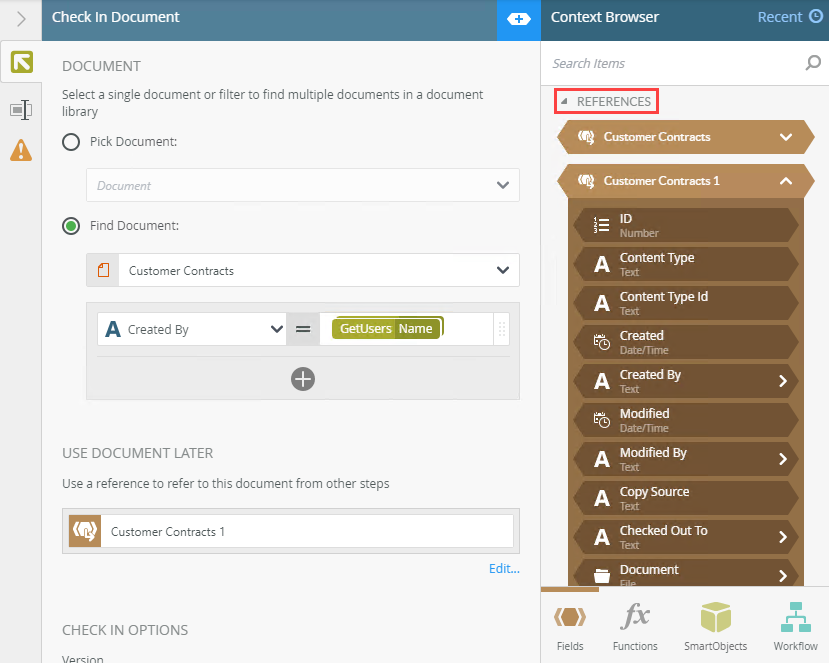

  12. To locate the added reference, expand the Context Browser, select Fields and then expand the Reference section.

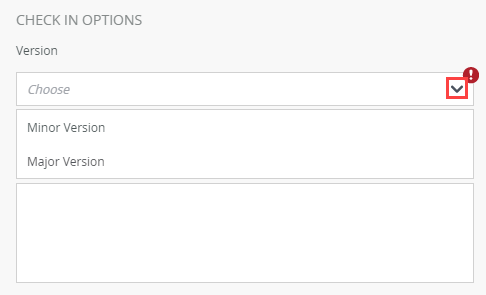

  13. From the Check in Options section select whether a minor or major version or the document should be checked in. Select an option from the Version menu. This selection is required.

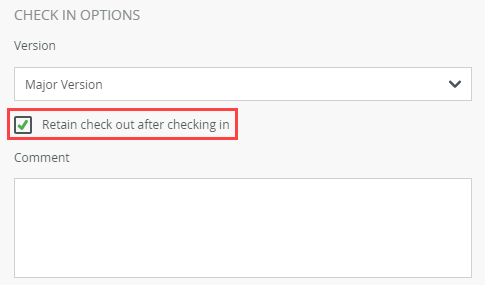

  14. Select whether to retain check out to the current user after checking in the document (checked by default).

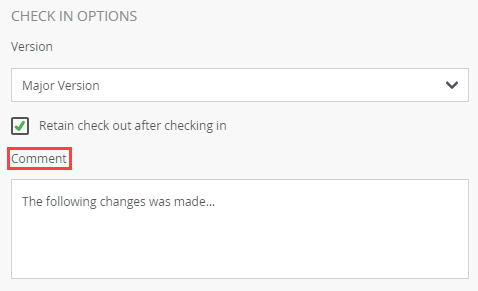

  15. Add a check in Comment for the document. This comment shows changes made to the document.

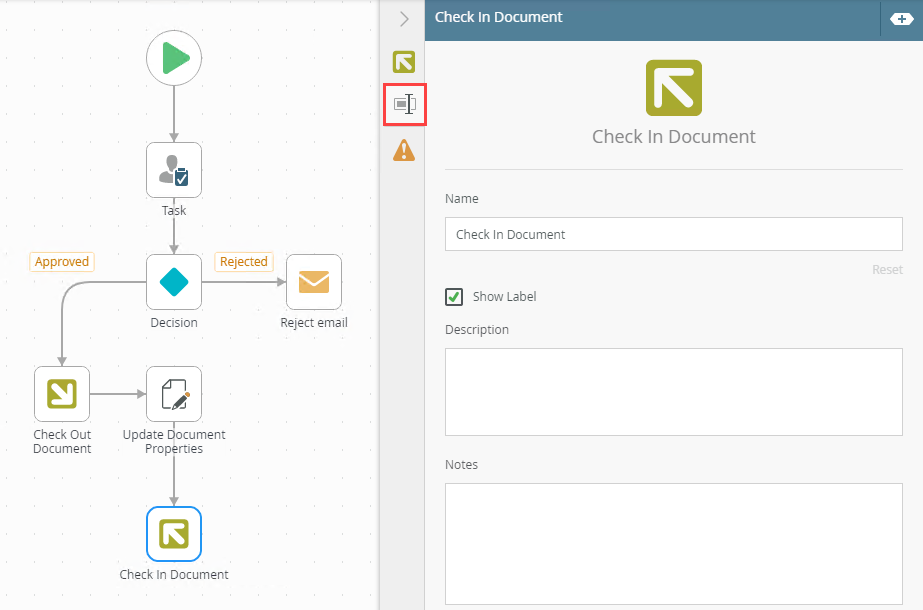

  16. With the step selected, select the Properties tab.

    17. The following table explains the options available on this tab:

    OptionExplanationHow to Use
    Title / NameBy default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.Enter a value into the Title/Name field.
    Reset linkUse the link to reset any changes to the title.Click the Reset link to reset the Title/Name field to default value.
    Show LabelAllows you to see the step label on the canvas. The label shows the value of the title.Check the check box to display step label on the canvas.
    DescriptionAllows you to add a detailed description for the step.Enter a value into the Create New field.
    NotesAllows you to add additional notes for the step.Enter a value into the Notes field.

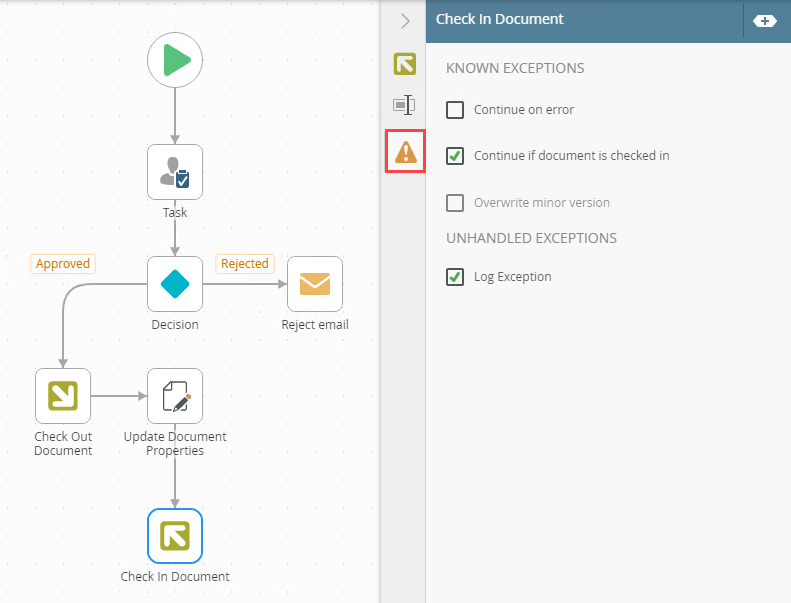

  17. Click the Errors tab.

    18. Different types of exceptions can occur on a step, such as:

    TypeDescription
    Known exceptionsAny SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
    Unhandled exceptionsAny unknown runtime exceptions.

    The tab contains the following Known exception/s:

    ExceptionExplanationHow to Use
    Continue on errorOn step execution and an error occurs, continue to the next step in the workflow.Check the check box to continue if an error occurs.

    Uncheck the check box to stop workflow execution if an error occurs.

    Continue if document is checked out

    On step execution and the added document is checked out (cannot be edited), the following options are available:

    • If the option is selected - the instance continues to the next step in the workflow.
    • If the option is not selected - Runtime exception error occurs.
    		Check the check box to continue to the next step if document is checked out.

    Uncheck the check box causes Runtime exception error.

    Overwrite minor versionOn step execution, overwrite the existing minor version when the document is checked in.Check the check box to overwrite the existing minor version.

    Uncheck the check box to not overwrite existing minor version.

    The tab contains the following unhandled exceptions:

    ExceptionExplanation
    Log ExceptionLogs the exception to the error log.
    Force error when required SmartObject inputs are missingWill forcefully throw an error if a SmartObject method has input missing.
    Continue on errorWill force the workflow to continue running the SmartObject method, even if it runs into an error.
    The exceptions in the table above is an example of those available in Workflow steps. The exceptions available depend on the Workflow step used in the design canvas.

  18. Your changes are automatically saved.
