Configure SSL

The information in this section provides details for ensuring that SSL is configured for the web site hosting K2 Services and its web.config. All steps assume a default K2 installation.

IIS settings

1. Start Internet Information Services (IIS) Manager
2. Navigate to {Server} > Sites > K2

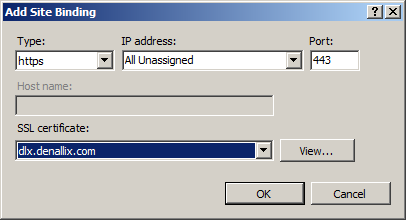

3. Select Bindings… and Add a binding for https selecting the appropriate SSL certificate

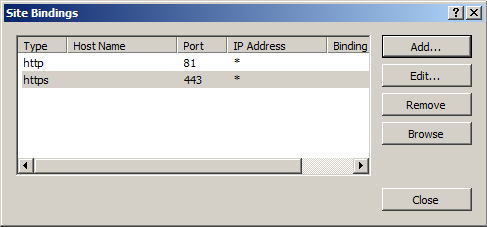

4. Select OK to see the Site Bindings

5. Close the Site Bindings dialog

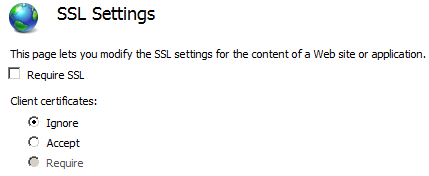

6. Select SSL Settings  and ensure the following
   • Require SSL: unchecked (default)
   • Client Certificates
     • Ignore: checked (default)

7. Navigate to {Server} > Sites > K2
8. Select Authentication and ensure the following
   • Windows Authentication: Enabled
   • Anonymous Authentication: Disabled
   • Basic Authentication: Disabled  NOTE: K2 implements Basic for you

   •

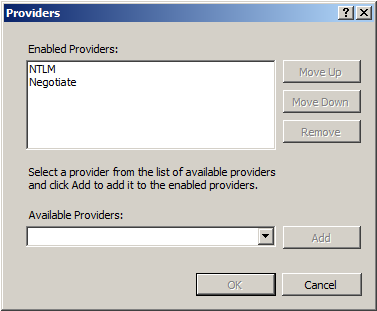

   • Highlight Windows Authentication and select Providers… and ensure the following:
   • Providers: NTLM; Negotiate

9. Navigate to {Server} > Sites > K2 > K2Services
10. Select SSL Settings  and ensure SSL is not enabled.
    1. Require SSL: unchecked (default)
    2. Client Certificates
       1. Ignore: checked (default)


11. Navigate to {Server} > Sites > K2 > K2Services

12. Select Authentication and ensure the following

    1. Windows Authentication: Enabled
    2. Anonymous Authentication: Enabled
    3. Basic Authentication: Disabled  NOTE: K2 implements Basic for you

13. Navigate to {Server} > Application Pools

14. Select K2 blackpearl and ensure the following:

    1. .NET Framework Version: 2.0

    2. Pipeline mode: Classic



Web.config Settings

1. Open C:\Program Files (x86)\K2 blackpearl\WebServices\K2Services\web.config
2. To support BASIC + HTTPS
   1. Set the requireSSL tag to True
      <configuration>
        <sourceCode.services>
          <basicAuthentication requireSSL="True" enabled="True" cachingEnabled="True" cachingDuration="15" defaultSecurityLabel="K2" />
        </sourceCode.services>
      </configuration>

   2. Set the service endpoints and base addresses for HTTPS
      <services>
        <service behaviorConfiguration="SourceCode.Services.RestBehavior" name="SourceCode.Services.SyncRest">
          <endpoint address="Task" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.SyncRestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.ITaskService" />
          <endpoint address="Identity" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.SyncRestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.IIdentityService" />
          <endpoint address="Core" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.SyncRestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.ICoreService" />
          <host>
            <baseAddresses>
              <add baseAddress="https://api.denallix.com:443/K2Services/WCF.svc" />
            </baseAddresses>
          </host>
        </service>
        <service behaviorConfiguration="SourceCode.Services.SoapBehavior" name="SourceCode.Services.SyncWcf">
          <endpoint address="Task" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.SyncWcfBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.ITaskService" />
          <endpoint address="Identity" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.SyncWcfBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.IIdentityService" />
          <endpoint address="Core" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.SyncWcfBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.ICoreService" />
          <host>
            <baseAddresses>
              <add baseAddress="https://api.denallix.com:443/K2Services/WCF.svc" />
            </baseAddresses>
          </host>
        </service>
      </services>



   3. Set the security mode to Transport for the endpoint bindings
   <bindings>
     <webHttpBinding>
       <binding name="SourceCode.Services.SyncRestBinding+HTTPS">
         <security mode="Transport">
           <transport clientCredentialType="None" />
         </security>
       </binding>
     </webHttpBinding>
     <basicHttpBinding>
       <binding name="SourceCode.Services.SyncWcfBinding+HTTPS">
         <security mode="Transport">
           <transport clientCredentialType="None" />
         </security>
       </binding>
     </basicHttpBinding>
   </bindings>

3. To support Windows + HTTPS
   1. Set the service endpoints for HTTPS <services>
        <service behaviorConfiguration="SourceCode.Services.RestBehavior" name="SourceCode.Services.Rest">
          <endpoint address="Process" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.RestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.IProcessNavigationService" />
          <endpoint address="Worklist" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.RestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.IWorklistNavigationService" />
          <endpoint address="Identity" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.RestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.IIdentityService" />
          <endpoint address="Core" behaviorConfiguration="SourceCode.Services.RestBehavior" binding="webHttpBinding" bindingConfiguration="SourceCode.Services.RestBinding+HTTPS" contract="SourceCode.Services.ServiceContracts.ICoreService" />
          <host>
            <baseAddresses>
              <add baseAddress="https://api.denallix.com:443/K2Services/WCF.svc" />
            </baseAddresses>
          </host>
        </service>
        <service behaviorConfiguration="SourceCode.Services.SoapBehavior" name="SourceCode.Services.Wcf">
          <endpoint address="Process" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.WcfBinding+HTTP" contract="SourceCode.Services.ServiceContracts.IProcessService" />
          <endpoint address="Worklist" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.WcfBinding+HTTP" contract="SourceCode.Services.ServiceContracts.IWorklistService" />
          <endpoint address="Identity" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.WcfBinding+HTTP" contract="SourceCode.Services.ServiceContracts.IIdentityService" />
          <endpoint address="Core" behaviorConfiguration="SourceCode.Services.SoapBehavior" binding="basicHttpBinding" bindingConfiguration="SourceCode.Services.WcfBinding+HTTP" contract="SourceCode.Services.ServiceContracts.ICoreService" />
          <host>
            <baseAddresses>
              <add baseAddress="https://api.denallix.com:443/K2Services/WCF.svc" />
            </baseAddresses>
          </host>
        </service>
      </services>

2. Set the security mode to Transport for the endpoint bindings
   <bindings>
     <webHttpBinding>
       <binding name="SourceCode.Services.RestBinding+HTTPS">
         <security mode="Transport">
           <transport clientCredentialType="Windows" />
         </security>
       </binding>
     </webHttpBinding>
     <basicHttpBinding>
       <binding name="SourceCode.Services.WcfBinding+HTTPS">
         <security mode="Transport">
           <transport clientCredentialType="Windows" />
         </security>
       </binding>
     </basicHttpBinding>
   </bindings>
