Schedules

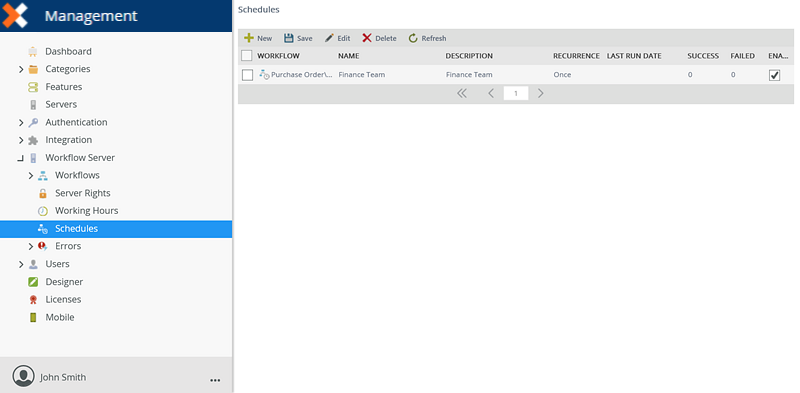

The Schedules node allows you to create and edit schedules that will automatically start an instance of a workflow at a particular date in the future, or some type of recurring pattern (e.g. once a week). For example, you may have an Audit workflow that needs to start automatically once a month. Setting up a schedule for this workflow to start automatically means that you do not have to remember to start the workflow manually each month.

From the Schedules node, you can Add, Save, Edit, Delete or Refresh Workflow Schedules.

Field Name Description
New Click New to create a new Schedule.
Save Click Save to save all Schedules.
Edit Click Edit to edit a Schedule.
Delete Click Delete to remove a Schedule.
Refresh Click Refresh to refresh the list of Schedules.
Workflow Displays the workflow associated to the Schedule.
If the workflow associated to the Schedule fails, errors will surface in the Errors section of the Workflow Server node and Errors tab in the Process Details page of the workflow.
Name Displays the name of the Schedule.
Description Displays the description of the Schedule.
Recurrence Displays the recurrence of the Schedule, such as once, daily, weekly, monthly, yearly and interval.
Last Run Date Displays the last date and time the Schedule was run. This field is timezone aware and adjusts according to the timezone your browser is using.
Success Displays a count of how many times the Schedule ran successfully.
Failed Displays a count of how many times the Schedule failed. When a Schedule fails, use the HostServer logs in the following location to troubleshoot your failed Schedules: "%ProgramFiles%\ K2\ Host Server\ Bin".
Enabled Enables the Schedule. When selecting the Enabled check box. The user account who created the Schedule is used to start the Schedule.
When you create a Schedule, you need start rights on the workflow in order for the workflow associated to the Schedule to start. When a Schedule fails, use the HostServer logs in the following location to troubleshoot your failed Schedules: "%ProgramFiles%\ K2\ Host Server\ Bin".You can create a custom user account to start schedules for you, ensure the custom user account has start rights on the associated workflow.
You must recreate a schedule when you deploy a new version of the workflow when item references or data fields are changed, otherwise, the schedule won't start the workflow as expected.

Follow these steps to add a workflow schedule:

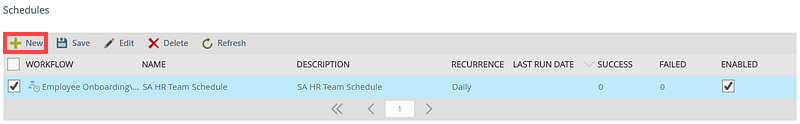

  1. Click New from the Schedules view.

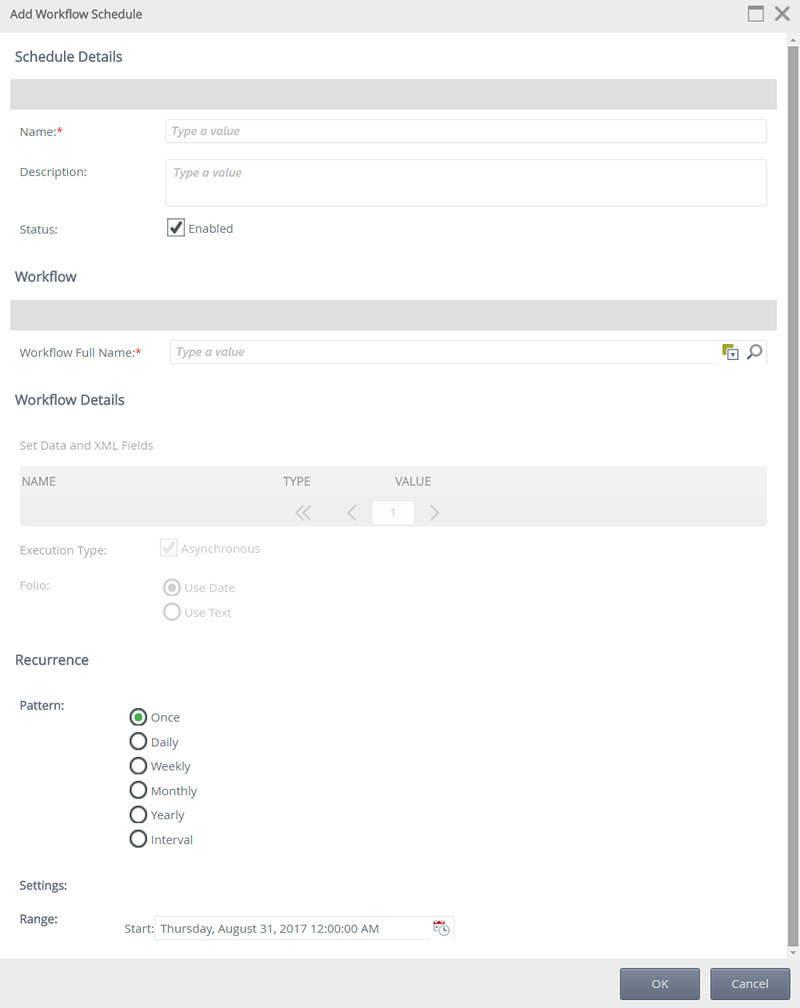

  2. The Add Workflow Schedule view opens. Enter values for the new schedule. Use the image and table below as a guideline for the schedule configuration.
    3. Field Name Description
    Name The name for the schedule being created. Type a value in the field provided.
    Description Describe the schedule being created. Type a value in the field provided.
    Status Use to set the status for this schedule. The Enabled check box is selected by default. Deselect the Enabled check box to disable the Schedule, which will prevent the schedule from running.
    Workflow Full Name Specify the workflow associated with the schedule. Type the name of the workflow and click Resolve. You can also use the Search to search for a workflow.
    If you do not have view rights on the workflow you want to associate to the Schedule, the workflow will not surface when searching for it.
    Search

    Click the Search to search for the workflow associated with the schedule. Enter a value in the Find field on the Search view and click Search. All workflows containing the value will return. Select a workflow and click OK.

    If you do not have view rights on the workflow you want to associate to the Schedule, the workflow will not surface when searching for it.
    Set Data and XML Fields The Data and XML fields defined for the selected workflow will be listed here. You can set values for these fields by editing the values in the Value column.
    Execution Type By default the Execution Type is set to Asynchronous (which means the workflow will be started and the start command returns immediately). Un-check the check box if you want the workflow to start Synchronously, meaning that the start command will wait for the first wait-state in the workflow to be reached (e.g. a client event or Start rule) before the start command returns.
    Folio The workflow Folio is set to use the Date by default. Click Use Text radio button if you want to enter a text value for the Folio and type a value in the Folio text box.
    Pattern You must select a Pattern to indicate when the workflow will be started. Select the radio button for the Pattern you want to use for this Schedule. The Settings section below the pattern will change depending on the Pattern selection made.
    Settings The Settings section depends on the Pattern selection made and will be different for each available Pattern. Configure the Settings according to the recurrence Pattern selected. This will determine how often and when the workflow should be started.
    Range Use the Range options to determine the start and end date range for the schedule. This field is timezone aware and adjusts to the timezone your browser is using. For example, if you are in a GMT+2 timezone and you select to start a workflow at 8:00 AM, it will start at 8:00 AM in your timezone (8:00 AM GMT + 2). If another person in a different timezone views the schedule, the range and last run date values are adjusted for that timezone.
    OK Button Click OK when the schedule configuration is complete to save the changes.
    Cancel Button Click Cancel if you do not want to create the schedule. Click OK on the confirmation message. This will take you back to the Schedules view and the schedule will not be created.
  3. Click OK to finish the configuration of the new schedule.

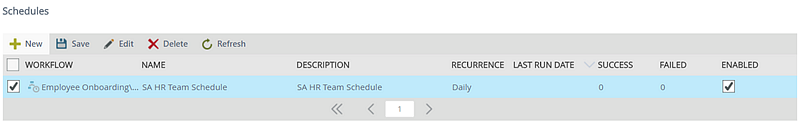

  4. The schedule will be listed in the Schedules view and provides information such as the last run date, number of successful instances and number of failed instances.

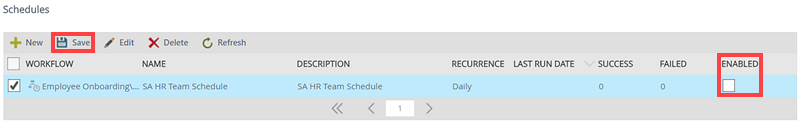

The Save button is used when changes were made to the Enabled check box of a schedule. After checking or un-checking the check box, click Save to update the schedule with the new status.

Follow these steps to edit a schedule:

  1. Select the schedule you want to edit.

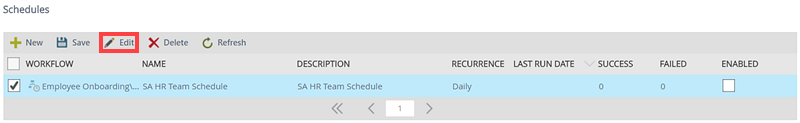

  2. The Edit button becomes available. Click Edit.
  3. The Edit Workflow Schedule view opens. Change the values that requires editing. Use the table provided in the add section as a guideline for configuring the schedule.
    When editing a Schedule, the Schedule count (Success or Failed) does not reset and continues from its last occurrence.
  4. Click OK to save the changes made to the schedule.

Follow these steps to delete a Schedule:

  1. Select the schedule you want to delete by clicking the check box in front of the schedule. (You can also click the check box next to Workflow if you want select all the schedules at once.)

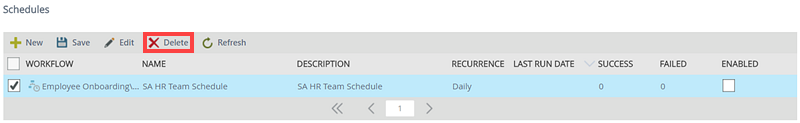

  2. The Delete button becomes available. Click Delete.
  3. Click OK on the confirmation message.

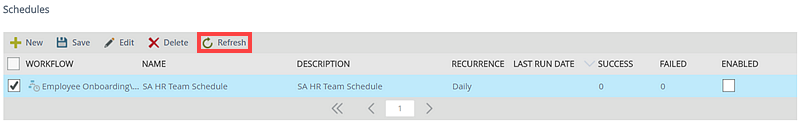

Use the Refresh button to refresh the list of Schedules. After clicking Refresh, Schedules created by other users will be added to the list.

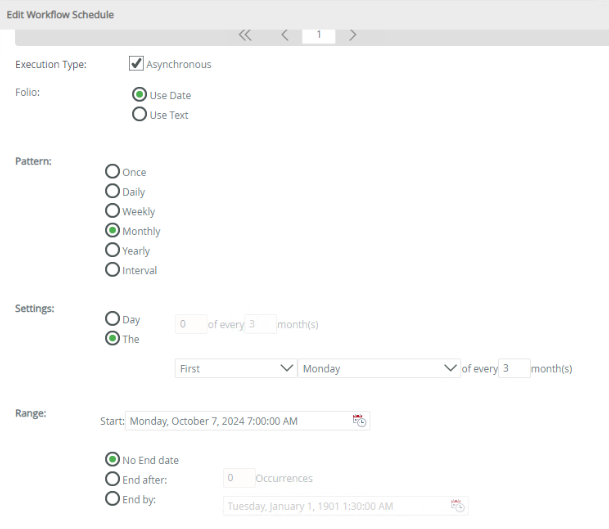

  • When you edit a schedule, it calculates the next occurrence based on your current date and time. In the example below, the first occurrence of this schedule is set to the first Monday of the following month. If your current date and time is in July when editing the schedule, the first schedule will run on the first Monday in August and from that point onwards, the scheduler continues to calculate recurring events every three months.
