Exporting from the Discovery Console

Nintex Process Discovery lets you export actionable information in an immediately usable format. This chapter will examine the quick steps for generating Process Discovery files and reports.

Downloading Files from Nintex Process Discovery

How to download a file of a selected process and its variants

Exports are available to download from:

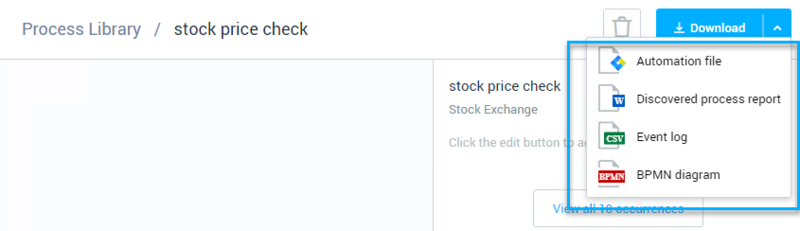

Process Library > select a process > click Download:

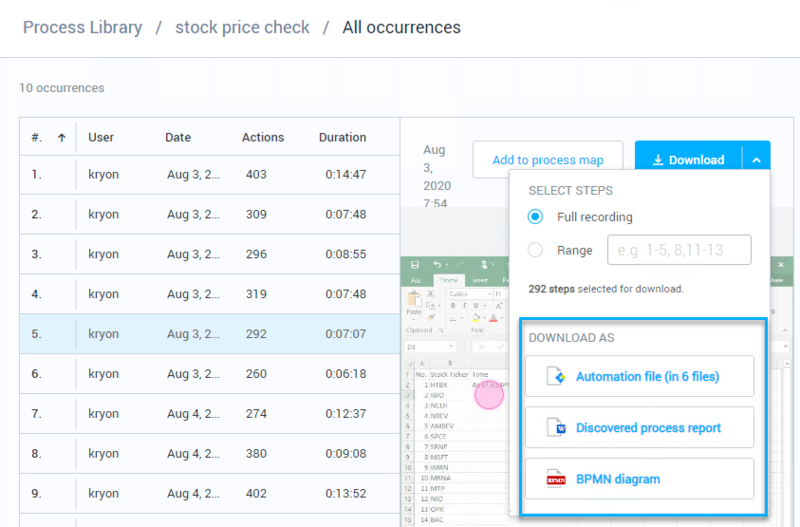

Process Library > select a process > click View all occurrences > Select an occurrence > click Download:

Types of Files Available for Download

File type	Description
Automation file	Exporting a process as an automated wizard file. This file is used for direct import into NintexRobotic Process Automation Studio for RPA development and implementation. A file named `pd-export.PD` will be created and automatically downloaded to your internet browser's default download folder. Save this file to an easily accessible location, and you'll be ready to import it to Nintex Studio.
Discovered process report	You can download a selected process and its variants into an editable MS Word document called the Discovered Process Report (DPR). This editable MS Word document records each step of the selected process and its variants. You can review the process, visualize all variants, add in-depth knowledge, and send it to the RPA developers for automation along with its corresponding automated wizard files.
Event log	For selected processes and variants to work with a Process Mining Tool if utilized. You can easily combine Nintex Process Discovery with Process Mining techniques by downloading an Event Log (in csv format) to apply to an external process mining tool. The Event Log file contains information from every recorded occurrence ("case") of the process and its selected variants. Each milestone action ("activity") is represented by a row in the Event Log. For reference, see Configuring the Event Log File Structure
BPMN diagram	A Business Process Model and Notation diagram to provide a graphical notation for specifying business processes.

You can also download all or a selected part of a recording from the Process Occurrence page. See Downloading all or part of an occurrence.

Organizing your exported automation as you export processes and variants:

Rename each exported file with a relevant name
Organize your exported automations into folders – one folder for each end-to-end business process to be automated
Transfer your organized folders to the Automation Developer(s) for upload to Nintex Studio and additional development

Importing an Automation to Nintex Studio

To import a process you downloaded from Nintex Process Discovery to Nintex Studio:

Open Nintex Studio
Create a new wizard in the Catalog
Open the wizard in the Wizard Editor

Creating, opening, and editing wizards
For detailed instructions and information about creating, opening, and editing wizards, see the Nintex Studio User Guide (Creating Wizards).

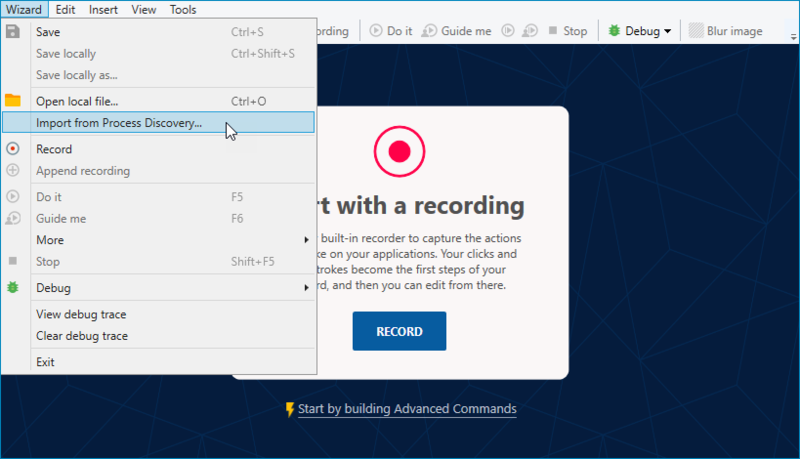

From the menu bar, click Wizard, then Import from Nintex Process Discovery
Navigate to the location in which you saved the exported *.PD file, select it, and click the button

The import will begin. When complete, the process downloaded from Nintex Process Discovery will populate the open wizard in the Wizard Editor.

Define those applications!
If you attempt to import a process that contains applications and/or websites that are not yet defined in Nintex Process Discovery Admin, you will receive a warning.

If you choose to import the process, you will be able to view it (and even edit it), but you will not be able to run it or save it as a wizard. So you won't be able to save any changes you have made.
To enable a complete import, ask your organization to add the necessary apps and/or websites. Then import the process again.

Event Log Structure

To learn how to download an event log, see Downloading Files fromNintex Process Discovery .

Column name	Type	Definition
case-id	Number	All rows of the same process instance have the same case ID
activity	Number	Algo action ID. Same ID number appearing for different occurrences represents the same user action.
activity description	Text	[app name] > [window title] > [action description*]
start	Date time	Start time of activity `yyyy-MM-dd HH:mm:ss`
end	Date time	End time of activity `yyyy-MM-dd HH:mm:ss`
process-ref	URL	Link to the process page in PD console
User	String	Name of recorded user (or the hashed name if user-hashing is enabled)
activity-type	String	Click Keyboard
app-name	String	App name as appears in Console
window-name	String	Window title / URL if available
window-id	Number	Window cluster ID
window-title	String	Window caption
web-page-url	String	For web pages only - page URL

*Action descriptions include: Click , Press [keys]

Event log csv format:

By default, the Event Log's file structure uses comma-separated values. Some process mining tools require semicolon delimiters instead. You can change the delimiter used, see the Configuring the Event Log File structure section in the Installation and Upgrade Guide, Nintex Process Discovery 22.3.
