Controls

You can use controls on views and forms to display or capture data, and to interact with the view or form, such as executing a rule when a control is clicked. Use controls to perform actions such as add attachments, type text, select an item from a drop-down list or display a URL. You can also use button controls to execute rules that you create in the Rule Designer. For example when you click a button, then open another view or form, save data to one or more SmartObjects, or save a screenshot to PDF.

When you generate a view, you have the option to automatically bind controls to SmartObject properties, and different controls are used for each data type. You can also bind controls to capture or display data from another, non-primary SmartObject, for example a drop-down list control that shows a list of Regions. You can change the control type, set its properties at design time and at runtime, configure validation patterns and expressions, and respond to control events by using rules. You can also apply formatting and styling, such as decimal formatting and a bold font to controls. There are over 40 controls available in the Toolbox as shown in the table below, grouped by category.

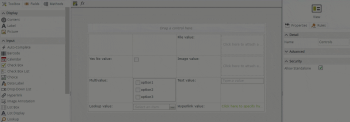

The animation below is an example of a view with different types of controls, and it also shows how to drag and drop controls to a view and then configure controls:

The following categories are used to group the available controls:

• Display: Controls that you can use for displaying data, such as labels and pictures.
• Input: The category with the most controls, you use these to capture data in your form.
• Action: Controls to action the form, such as buttons and timers.
• Attachment: Controls you can use to upload or display files
• Layout: Use the table control for the layout of your view
• Export: Generate a PDF snapshot of the view or form
• Information: Use the Location Services control to capture GPS location data on supported devices.
• Reports: Use controls to create reports using workflow data.
• Worklist: An interactive control containing work items for the current user, allowing you to see and action tasks.

List of Controls

The following is a complete list of the controls available.

Category	Control	Description	View	Form
Display	Content	An iFrame (Inline Frame) used to embed another view or form, or to display a URL	Y	Y
Display	Label	Used to display text	Y	Y
Display	Picture	Used to display an image	Y	Y
Input	AutoComplete	Provides suggestions while you type	Y
Input	Barcode	Allows you to capture barcodes in a form when using the Workspace (Mobile) app (on supported devices)	Y	Y
Input	Calendar	Allows you to specify a date using a calendar	Y	Y
Input	Check Box	Allows you to set true/false, yes/no, on/off options	Y	Y
Input	Check Box List	A check box group for choosing multiple items from a list of related options	Y
Input	Choice	Allows you to select a value from a drop down list of values, which can be static of from a SmartObject list	Y
Input	Data Label	A label typically bound to a SmartObject property that you can apply validation to in order to capture a single value	Y	Y
Input	Drop-Down List	Allows you to select a single item from a drop-down list	Y
Input	Hyperlink	Displays an HTML link to a URL that opens in the default browser	Y	Y
Input	Image Annotation	Allows you to annotate images using the Workspace (Mobile) app	Y	Y
Input	List Box	A single column multi-select control, allows you to select one or more items from a list	Y
Input	List Display	Displays and allows you to choose from a list, typically used for displaying data from an associated SmartObject	Y
Input	Lookup	Displays and allows you to choose from a lookup list based on SmartObject data	Y
Input	Multi-Select	A two column control that allows you to select from a list of available items, with selected items on the right	Y
Input	Picker	A searchable drop-down that also provides resolution of data, such as a list of users	Y
Input	Radio Button	A single option button that you can use by itself or when part of a radio button group control to provide a list of options.	Y	Y
Input	Radio Button Group	Used to group radio button controls to form a list of options. Not visible at runtime	Y	Y
Input	Radio Button List	Provides a pre-configured option button list with a border	Y
Input	Rating	Allows you to rate from one to five stars	Y	Y
Input	Rich Text	Allows you to insert formatted text and graphics.	Y	Y
Input	SharePoint Hyperlink	Allows you to insert a link to a URL, specify the link text, and test the link.	Y	Y
Input	Slider	Allows you to select from a range of values by moving a thumb control along a track. At design time you specify minimum and maximum values	Y	Y
Input	Text Area	A multi-line text box	Y	Y
Input	Text Box	A single line text box	Y	Y
Input	Tree	Allows you to display a hierarchical list of information.	Y
Action	Button	Allows you to click to take an action configured at design time using rules	Y	Y
Action	Toolbar Button	Adds a button to the toolbar in the view, and can include an icon	Y
Action	Timer	Allows you to execute a rule after a configurable period of time	Y	Y
Attachment	File Attachment	Allows you to attach a file and displays a progress bar during upload	Y
Attachment	Image Attachment	Allows you to attach an image and displays a progress bar during upload	Y
Layout	Table	Use a table to control the layout of labels and controls	Y	Y
Export	Save as PDF	Generate a PDF snapshot of the view or form	Y	Y
Worklist	Worklist	An interactive control containing work items for the current user, allowing you to see and action tasks.	Y	Y
Information	Location Services	Allows you to capture location and time information from GPS on mobile devices when using the Workspace (Mobile) app	Y	Y
Reports	Activity Instances Chart	Graphic display of workflow activities based on configurable filter criteria, displayed as an aggregated view of the activity.	Y	Y
Reports	Activity Instances Grid	Lists all activity instances of a workflow based on configurable filter criteria, displayed as a list with detailed information, sorting, and paging.	Y	Y
Reports	Report Header	An dashboard control allowing you to view different types of workflow reports. Contains common properties used to filter other charts or grids on the view.	Y	Y
Reports	User Performance Chart	Graphic display of users who have participated activity based on configurable filter criteria, and displayed as an aggregated view of instances per user.	Y	Y
Reports	User Performance Grid	Lists users who have participated in the activity based on configurable filter criteria, and includes activity data.	Y	Y
Reports	Workflow Data Grid	Lists all data fields of a workflow instance based on configurable filter criteria.	Y	Y
Reports	Workflow Duration Chart	Graphic display of the average duration of workflow instances over time, based on configurable filter criteria.	Y	Y
Reports	Workflow Instances Chart	Graphic display of workflows based on configurable filter criteria.	Y	Y
Reports	Workflow Instances Grid	Lists all workflow instances based on configurable filter criteria. The data is displayed as detailed information related to a workflow instance or instances.	Y	Y
Reports	Workflow References Grid	Lists all workflow item references of a workflow instance based on configurable filter criteria. Allows you to expand the references to view detailed information.	Y	Y

Important Considerations

• See the Control Bindings topic for information on binding and unbinding controls.
• When you configure a form for anonymous access, you cannot upload or download files with the File Attachment, Image Attachment and Picture controls. You should carefully consider and evaluate the impact of allowing file uploads and downloads with anonymous access forms, since doing so may be considered a security vulnerability. User credentials and authentication are not required for anonymous access forms and therefore any files uploaded or downloaded with such forms can be performed by anyone that can access the form, without having to provide credentials.
  To allow file uploads and downloads for anonymous access forms you can add the following configuration settings to the web.config files of the SmartForms websites. Find the websites here:
  [Install Directory]\K2\K2 smartforms Designer
  [Install Directory]\K2\K2 smartforms Runtime
  Add the following setting to the <appSettings> section of the configuration files listed above:
  <add key="Forms.Controls.File.AllowAnonymousAccess" value="true" /> (Applies to the File Attachment and Image attachment controls)
  <add key="Forms.Controls.Image.AllowAnonymousAccess" value="true" /> (Applies to the Picture control)
  You must set the values to true to allow the controls to function when you access them through anonymous access forms. If you do not add this setting or if you set it to false, the controls do not work on anonymous access forms, namely errors occur when uploading or downloading files, and image thumbnails may not display. This configuration applies to the entire site and all anonymous access forms. It is not possible to configure security for the File Attachment, Image, and Picker controls for individual anonymous forms.
• When you use a validation pattern on a control, you must add a rule to execute the validation. See the Validation and Views topic for more information.
• You can apply formatting and conditional formatting to all controls except the Table control. When you apply a style to a control, the display value of that control changes to the specific format specified. When you apply a conditional style to a control, the styling applies when a certain condition validates to True. You can also apply themes to forms.
• You can use style profiles to add color to your controls, views, and forms.
