Get Selection Element State

Determine whether a check box, radio button, or similar selector in a scanned document is selected (checked) by searching for it next to a specified word (the "label word").

This command can be used only within an OCR: Documents container.

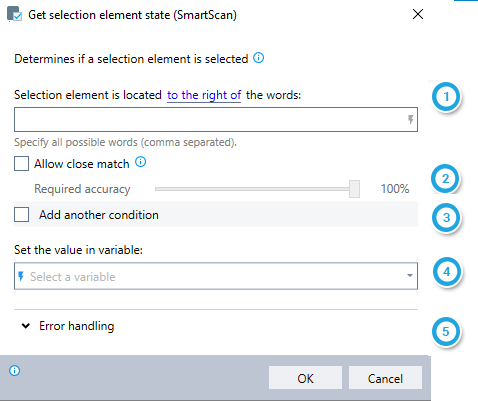

  1. Choose where the relevant selection element appears in relation to the label word (to the right, to the left, above, or below); and

    Enter all possible label words (separated by commas).

  2. Indicate whether you wish to allow close matching of the label word(s); and

    the level of accuracy required for the close match to be accepted.

  3. (Optional) Enter a second condition for determining the location of the label word.

  4. Enter the name of the variable into which to place the result (will be TRUE if the element is selected or FALSE if unselected).

  5. Instruct the wizard how to handle any errors encountered. Read more about error handling.
