WCF

The WCF Service Type enables you to call methods from Windows Communication Foundation (WCF) endpoints by exposing these methods as SmartObjects. The broker utilizes serialization and deserialization to work with complex .NET types, and all method calls are considered stateless

Querying and submitting data using an Endpoint Service Type can be a complex issue. It requires a good understanding of data and how it is returned from the service call. It also requires understanding the serialization and deserialization methods that are intrinsic to the .NET Framework.

The main methods that are used with the endpoint services are Serialization and Deserialization. Simply put, these methods are used to send and store complex data. To Serialize the results of a service call means to represent it in a state that can be transferred and/or stored, such as in a database. To Deserialize that data is to turn it back into a state that can be consumed. These methods, while based on the .NET Framework for the purposes of the K2 Endpoint Service Type, represent a device-independent, cross-platform method of representing complex, relational data.

Service Authentication

The following Authentication Modes may be used with the WCF Service Type:

  • Impersonate
  • OAuth
  • ServiceAccount
  • Single Single-on
  • Static

Service Keys (Service Instance Configuration Settings)

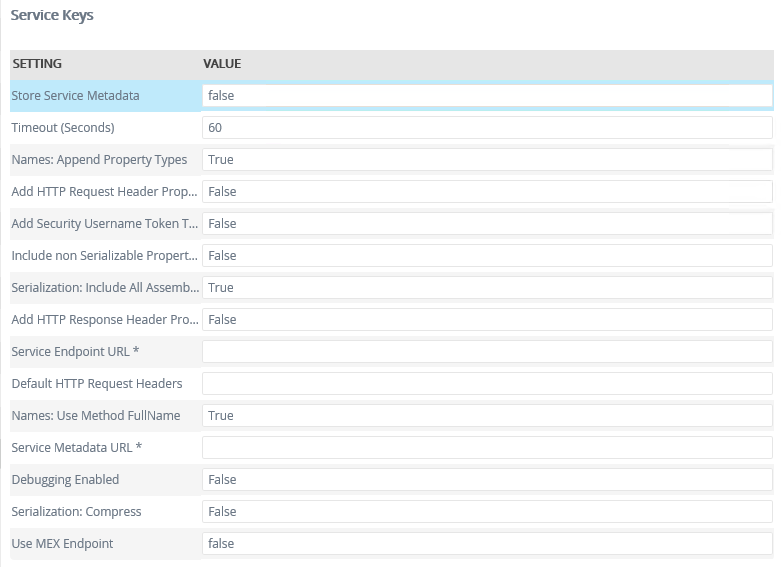

Key Can be modified Data Type Sample Value Notes
Store Service Metadata Yes True/False False

Sets the ability to store the service metadata of the WCF service. Default value: False. If this is set to true service metadata will be stored.

For more information about using this field, see KB001602 Endpoint WCF Service / SmartObject fails when setting 'HTTPGetEnabled' to False.

Timout (Seconds) Yes Number 120
(Default value: 60)
Sets the Timout value for the Web Endpoint service.
Debugging Enabled Yes True/False False Displays stack trace information in dialog and error information. Default value: False..
Names: Append Property Types Yes True/False True Includes the property type in parentheses after the complex property name. Default value: True.
Add HTTP Request Header Property To Methods Yes True/False True Adds an optional property to each method to allow you to send HTTP Request Headers to the service.
Names: Use Method FullName Yes True/False True Uses the full name of the method including the property names and types. Default value: True.
Include non Serialized Properties Yes True/False False
(Default value: False)
If the value of this Key is set to True it will add non-Serializable properties on the Serialize method Input values.
Serialization: Compress Yes True/False False Compress the serialization data for complex types. Default value: False.
Serialization: Include All Assembly Types Yes True/False True Includes all available serialization objects regardless of usage in public methods. Default value: True.
Add HTTP Response Header Property To Methods Yes True/False True Adds an optional property to each method to allow for a list of HTTP Response headers to be returned from the service.
Service Endpoint URL Yes
(required)
Text http://localhost/servicemodelsamples /service.svc

The URL to the service endpoint, typically the .svc address.

If a service endpoint has multiple service bindings, such as the K2 Service WCF endpoint shown below, you must provide a service endpoint URL to a specific binding and register one service instance per binding. When you create your SmartObjects you can group them in the same category.

Default Http Request Headers Yes Text {"$type":"SourceCode.SmartObjects. Services.Endpoints.Common.HttpHeader, SourceCode.SmartObjects.Services. Endpoints.Common, Version=4.0.0.0, Culture=neutral, PublicKeyToken=null","Name": "nameExample","Value":"valueExample"} (sample) Used to supply default HTTP headers that should be added onto every HTTP request. This key is a name/value pair that is serialized using the HttpHeader system type as shown below in The HttpHeader Type section. An example of an HttpHeader value might be an additional authentication name/value pair required by the service.
Service Metadata URL Yes
(required)
Text http://localhost/servicemodelsamples /service.svc/mex The URL to the service description (WSDL/MEX) for the Web Service. WSDL/MEX will automatically be appended if not found in the URL.
Use MEX Endpoint Yes True/False False The service description is provided as MEX instead of WSDL. Default value: False.

Service Objects

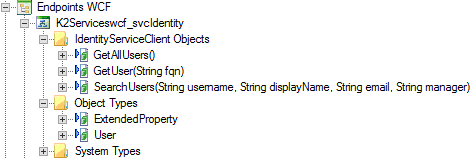

When generating SmartObjects for an Endpoint Service Instance, some standard categories of SmartObjects are created; for example, the Object Types, and System Types. These define the data types used. Other SmartObjects may be generated depending on what the Endpoint exposes.

SmartObjects

K2 does not automatically create SmartObjects for the Service Objects in this service. SmartObjects can be automatically created by selecting the Generate SmartObjects for this Service Instance check box when creating a new Service Instance. Designers can use the SmartObject design tools to build advanced SmartObjects that leverage the Service Objects in this service. It is recommended to use the SmartObject design tools to create SmartObjects rather than generating SmartObjects, since this allows better control over the naming, behavior and design of the SmartObject and its methods and properties.

Considerations

  • When working with EndPoint SmartObjects, an understanding of serialization and deserialization is essential. See Working with EndPoint SmartObjects for more information.
  • For troubleshooting tips, please see Troubleshooting the EndPoint Service Types
  • Changing WCF behavior, such as the maxReceivedMessageSize to address errors such as "The maximum message size quota for incoming messages has been exceeded” is accomplished by editing the K2HostServer.exe.Config file. (This particular error is common when many records are returned by the service)
  • For more information about what is supported by the WCF service, see the Client Configuration topic on MSDN (http://msdn.microsoft.com/en-us/library/ms731745(v=vs.100).aspx). Make sure to use the right version of the article for the same .NET framework version that the K2 server is configured to run under.
