Mathematical
This content applies to legacy design tools (such as K2 Studio, K2 for Visual Studio, or the Silverlight-based K2 workflow design tool). If you have upgraded from K2 blackpearl 4.7 to K2 Five , these tools may still be available in your environment. These legacy tools may not be available in new installations of K2 Five . These legacy tools may also not be available, supported, or behave as described, in future updates or versions of K2. Please see the legacy component support policy for more information about support for these components.
Mathematical functions perform calculations, usually based on input values, and returns a number.

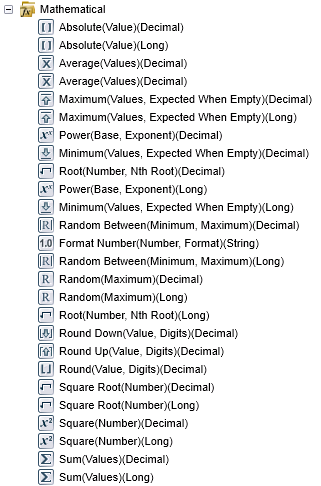

An item is selected and then added to the canvas or K2 field part by clicking the Add button or by dragging it to the right place.
| Functions | Description | Example |
|---|---|---|
| Absolute - Decimal | Gets the absolute (positive) value of a number. | Input Value: -1.1 Result: 1.1 |
| Absolute - Long | Gets the absolute value of a number. | Input Value: -2 Result: 2 |
| Average - List of Decimal | Calculates the average of a collection of values. | Input Values: { 1.1, 2.2, 3.3 } Result: 2.2 |
| Average - List of Long | Calculates the average of a collection of values. | Input Values: { 1, 2, 3 } Result: 2 |
| Format Number - Decimal String | Formats a number to a text representation using a specified numeric format specified. | Number: 0.111 Format: "C" Result: "$ 0.11" |
| Maximum - List of Decimal | Gets the maximum value of a list of values. | Values: { 1.1, 2.2, 3.3 } Expected When Empty: 0 Result: 3.3 |
| Maximum - List of Long | Gets the maximum value of a list of values. | Values: { 1, 2, 3 } Expected When Empty: 0 Result: 3 |
| Minimum - List of Decimal | Gets the minimum value of a set of values. | Values: { 1.1, 2.2, 3.3 } Expected When Empty: 0 Result: 1.1 |
| Minimum - List of Long | Gets the minimum value of a set of values. | Values: { 1, 2, 3 } Expected When Empty: 0 Result: 1 |
| Power - Decimal | Gets one value raised to the power of another. | Base: 1.1 Power: 1.1 Result: 1.11053424105458 |
| Power - Long | Gets one value raised to the power of another. | Base: 2 Power: 2 Result: 4 |
| Random - Decimal | Gets a random number less than or equal to a specified maximum value. | Maximum: 1.2 Result: 0.5810660167974728 |
| Random - Long | Gets a random number less than or equal to a specified maximum value. | Maximum: 2 Result: 1 |
| Random Between - Decimal | Gets a random number between two specified values. | Minimum: 0.0 Maximum: 1.2 Result: 0.5810660167974728 |
| Random Between - Long | Gets a random number between two specified values. | Minimum: 0 Maximum: 2 Result: 1 |
| Root - Decimal | Gets the positive nth root of a positive number. | Number: 32.0 Nth Root: 5.0 Result: 2.0 |
| Root - Long | Gets the positive nth root of a positive number. | Number: 100 Nth Root: 2 Result: 10 |
| Round - Decimal | Rounds a number up or down to a value with a specified precision. | Value: 1.111 Digits: 1 Result: 1.1 |
| Round Down - Decimal | Rounds a value down. | Value: 1.15 Digits: 1 Result: 1.1 |
| Round Up - Decimal | Rounds a value up. | Value: 1.15 Digits: 1 Result: 1.2 |
| Square - Long | Gets the square of a number. | Number: 2 Result: 4 |
| Square - Decimal | Gets the square of a number. | Number: 1.1 Result: 1.21 |
| Square Root - Decimal | Gets the square root of a number. | Number: 1.1 Result: 1.04880884817015 |
| Square Root - Long | Gets the square root of a number. | Number: 100 Result: 10 |
| Sum - List of Decimal | Gets the sum of a set of values. | Values: { 1.1, 2.2, 3.3 } Result: 6.6 |
| Sum - List of Long | Gets the sum of a set of values. | Values: { 1, 2, 3 } Result: 6 |

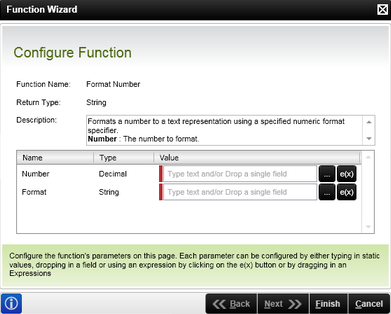

The Function wizard content varies according to the function:
