Files

This content applies to legacy design tools (such as K2 Studio, K2 for Visual Studio, or the Silverlight-based K2 workflow design tool). If you have upgraded from K2 blackpearl 4.7 to K2 Five, these tools may still be available in your environment. These legacy tools may not be available in new installations of K2 Five. These legacy tools may also not be available, supported, or behave as described, in future updates or versions of K2. Please see the legacy component support policy for more information about support for these components.

The Files inline functions allow you to get information about files, including the content, from various sources.

Select the applicable function and add it to a wizard or K2 field part by clicking the Add button or by dragging it to the right place. After adding the function, the wizard for the function opens.

The return type for all Files inline functions is an XML string. The functions return an XML structure containing the file name and the file contents, similar to the following:

<files>
	<file encoding="Base64">
		<name>Leave Policy.docx</name>
		<content>JVBERi0xLjSNCiWys7S1...</content>
	</file>
</files>

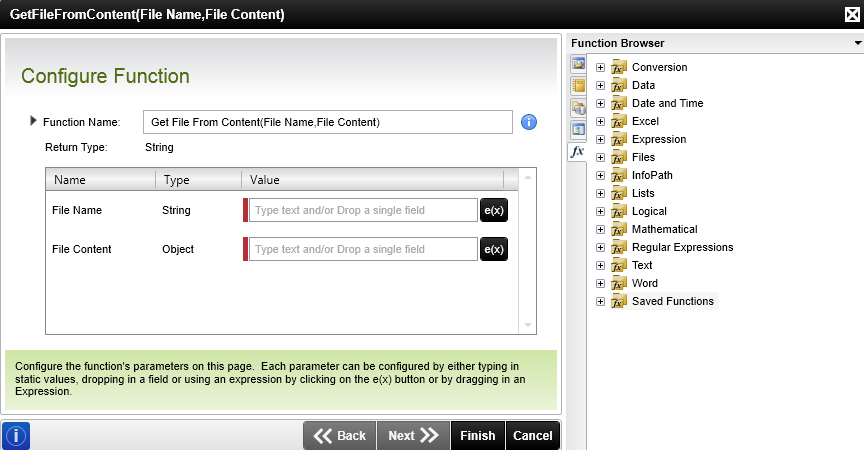

Get File From Content (Filename, Content) (String)

Function Description Example
Get File From Content Gets a file from data fields, expressions, base64-encoded data and other items containing the file’s content, and allows you to specify a file name. File Name: The name of the file to return.
Content: The contents of the file to return passed any object. For example, input text, a combination of expressions or an object from the context browser.
Result: The content of the file as an XML string

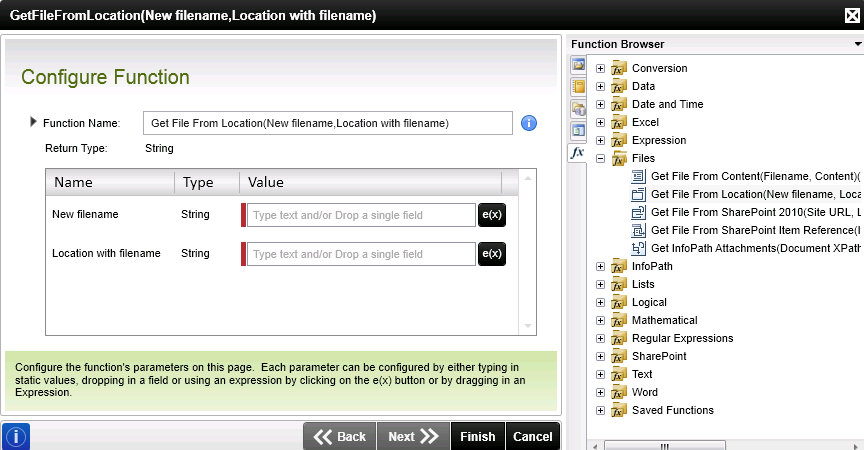

Get File From Location (Filename, Location ) (String)

Function Description Example
Get File From Location Gets a file from a file location which must be accessible at runtime, and allows you to specify a file name. Note that you cannot use a local path on the K2 server or an HTTP/HTTPS-based file, but rather UNC-based files. New filename: The name of the file to be used in the destination.
Location with filename: The location and name of the file to be returned. Specify the full path to the file to avoid errors.
Result: The content of the file as an XML string

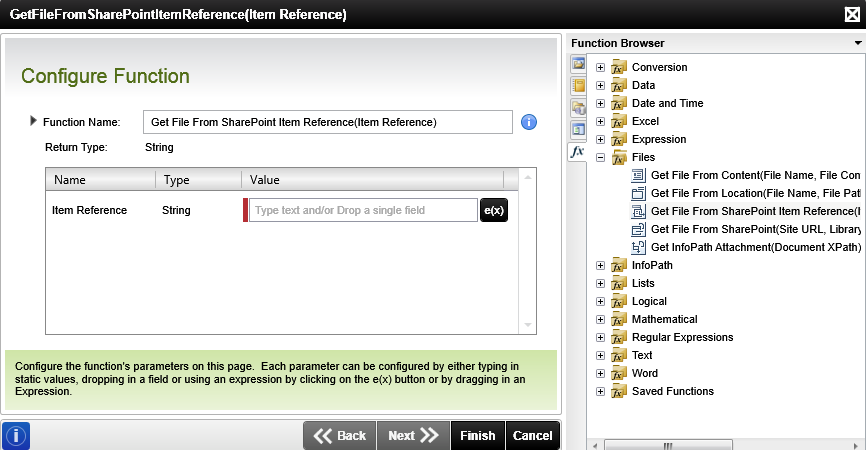

Get File From SharePoint Item Reference (Item Reference) (String)

Function Description Example
Get File From SharePoint Item Reference (SharePoint 2010) Gets a file from a SharePoint 2010 Item Reference containing one or more documents. Item Reference: The reference containing the information necessary to resolve the files at runtime.
Result: The content of the file as an XML string.

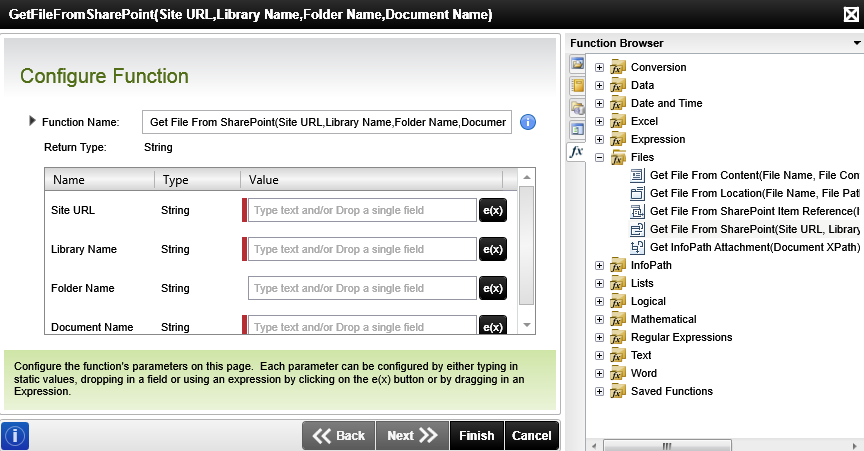

Get File From SharePoint 2010 (Site URL, Library Name, Folder Name, Document Name) (String)

Function Description Example
Get File From SharePoint 2010 Gets a file from a SharePoint 2010 document library. Site URL: The SharePoint site containing the document library.
Library Name: The name of the document library.
Folder Name: The name of the document library folder.
Document Name: The name of the document.
Result: The content of the file as an XML string

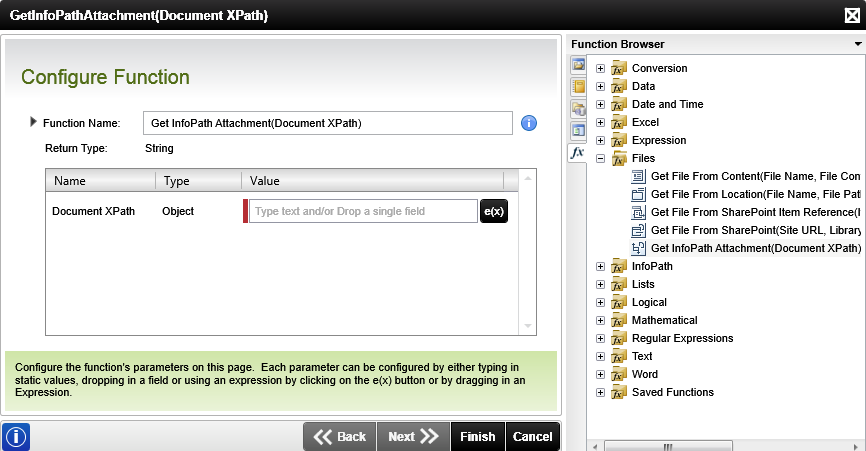

Get InfoPath 2010 Attachments (Document XPath) (String)

Function Description Example
Get InfoPath Attachments (InfoPath 2010) Gets all documents contained in an InfoPath 2010 attachment field node. Document XPath: The XPath of the node containing the attachments of the InfoPath form.
Result: The content of the file as an XML string

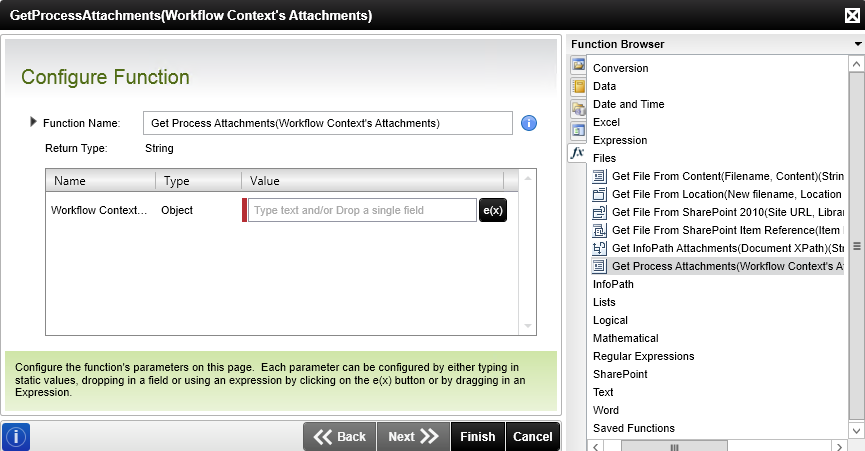

Get Process Attachments (String)

Function Description Example
Get Process Attachments Gets all process attachments. Workflow Context's Attachment: Attachments are available from Process Instances of workflows that have Attachments enabled . For more information see How to use the Workflow Attachment and Workflow Comment SmartObjects
Result: The content of the file as an XML string
