Navigate the Ribbon

The Ribbon contains tools and commands that you use to create workflows in the K2 Workflow Designer. These commands are located within the following tabs on the ribbon:

You can find the Redo, Undo, and Save buttons on the right side of the ribbon.

Get to Know the Ribbon

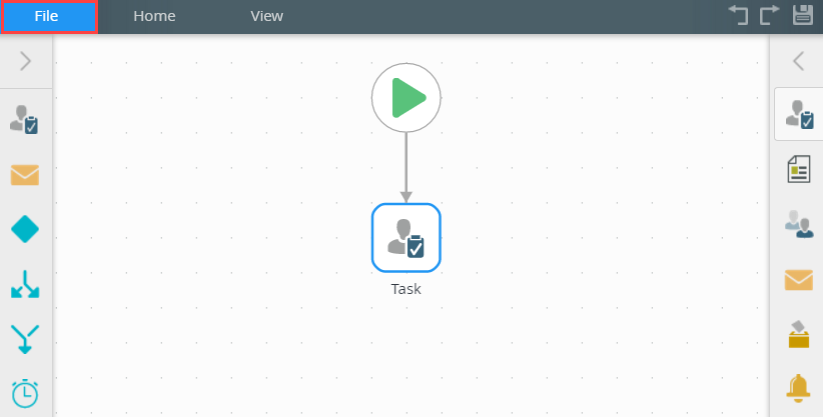

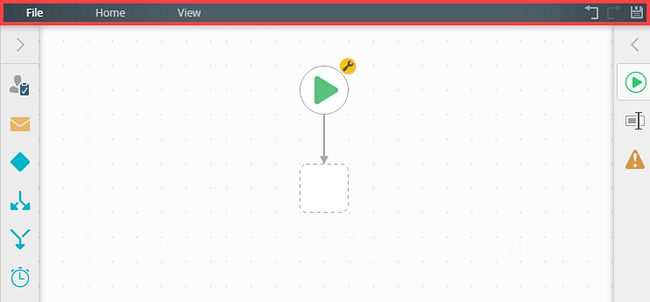

Use the following image to identify the ribbon.

The Redo, Undo, and Save buttons are located on the right side of the ribbon, just beneath your name.

As you build a workflow, the K2 Workflow Designer automatically saves your workflow in the background. When the K2 Workflow Designer saves your work, the Save button animates until your workflow is saved. You can also click on the Save button to save changes. Remember that your workflow is not available for use until you deploy it.

The designer keeps track of every step or action you perform. You can click on the Undo button to remove the last step you added or action you performed. To reapply what was undone, click the Redo button.

  1. From the K2 Workflow Designer ribbon select the File tab.

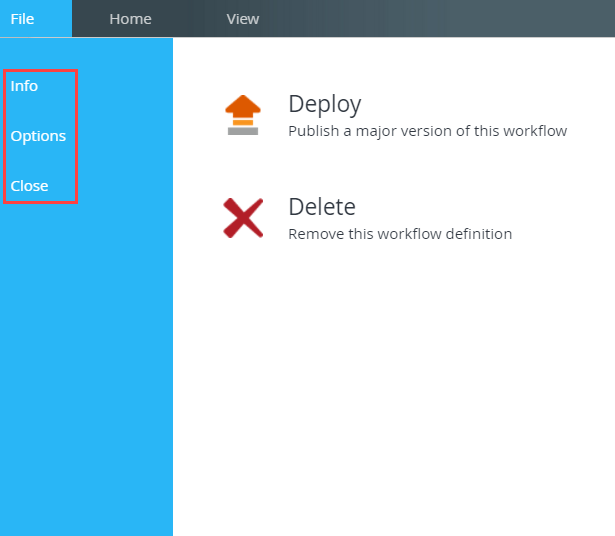

  2. The File tab contains three sections - Info, Options, and Close.

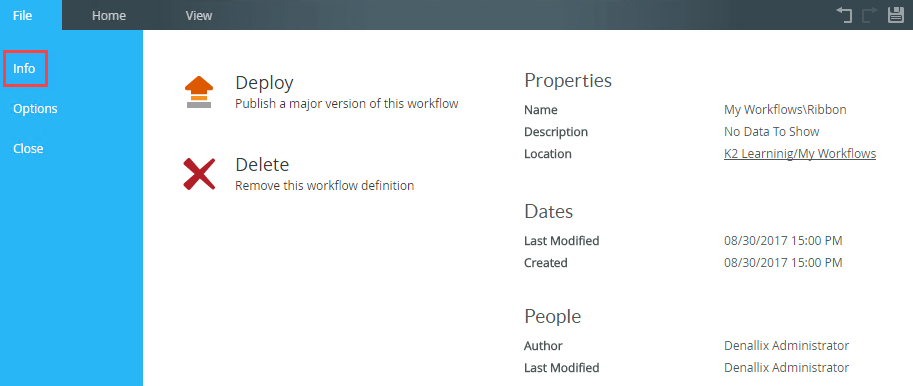

  3. The Info menu is selected by default.

    4. The following table explains the available options:

    Option Description
    Deploy Click Deploy to deploy your new or updated workflow to the K2 server.
    Delete Click Delete to delete this workflow instance from the database. This only deletes saved and draft workflow definitions. Deployed workflows are not deleted and new instances of the deployed workflow can still be started.

    Properties

    The Properties section displays general detail for the workflow, such as:

    • Name
    • Description
    • Location - use the Location link to access the category where the workflow is saved.
    • Last Modified date
    • Create date
    • Author name
    • Last Modified by name
    Dates The Date section shows the Last Modified and Created date of the selected workflow.
    People The People section shows who authored person and who last modified the workflow.

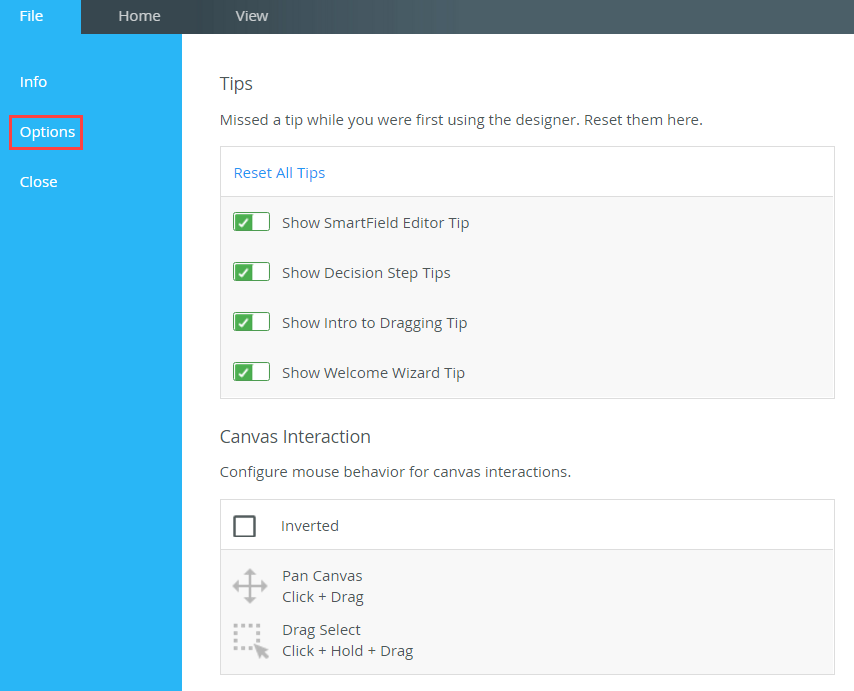

  4. On the Options section you can enable or disable tips and configure mouse behavior for the canvas.

    5. The following table explains the available options:

    Option Description
    Tips

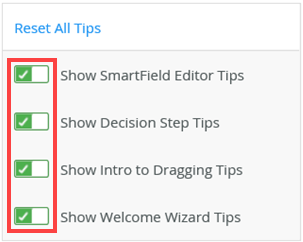

    Use the sliders to enable or disable any of the following tips:
    • SmartField Editor Tips
    • Decision Step Tips
    • Intro to Dragging Tips
    • Show Welcome Wizard Tips
    By default, all of the tips are enabled.

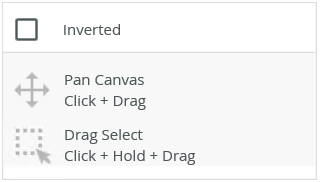

    Canvas Interaction

    Use this section to enable inverted default behavior on the canvas. By default this check box is not checked.

    Default options:

    • Pan Canvas - to pan the canvas, you click and drag
    • Drag Select - to select multiple steps you click, hold and then drag the steps.

    Inverted options:

    • Pan Canvas - to pan the canvas you click, hold and then drag
    • Drag Select - to select multiple steps, you click and drag
    Form more information see the Canvas Interaction topic.
  5. Clicking Close automatically saves and closes the K2 Workflow Designer, and then returns you to the K2 Designer.
  1. From the K2 Workflow Designer ribbon select the Home tab.

    2. The following table explains the available options:

    Option Description
    Paste Allows you to paste a copied item onto the canvas. (Shortcut Ctrl + V )
    Cut Allows you to remove the selected item from the canvas. (Shortcut Ctrl + X)
    Copy Allows you to copy a selected item on the canvas. (Shortcut Ctrl + C)

    Select All

    		Allows you to select all items on the canvas (Shortcut Ctrl + A)
    Rename Allows you to change a step label.

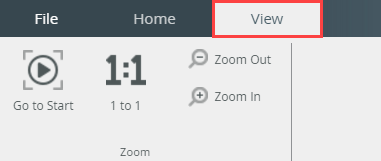

  1. From the K2 Workflow Designer select the View tab.

    2. The following table explains the available options:

    Option Description
    Go to Start Click this option to go to and select the Start step.
    1:1 Click this option to display your workflow in a 1 to 1 ratio. This is helpful when the canvas view has been zoomed in or out.
    Zoom In Click this option to zoom in the canvas.

    Zoom Out

    		Click this option to zoom out the canvas.
    You can also zoom in and out by pressing and holding the Ctrl button and using the scroll wheel on your mouse.
