Workflow Duration Chart Control

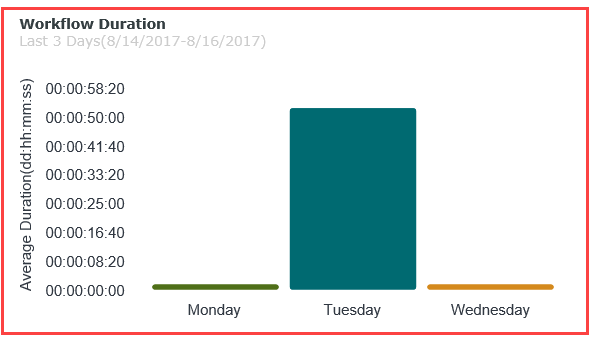

The Workflow Duration Chart control displays a graphic representation of the average duration and count of workflow instances over time, displayed as an aggregated view of the workflow. You can select to display data according to duration or instance count. You can use the chart to:


  1. Create a view.

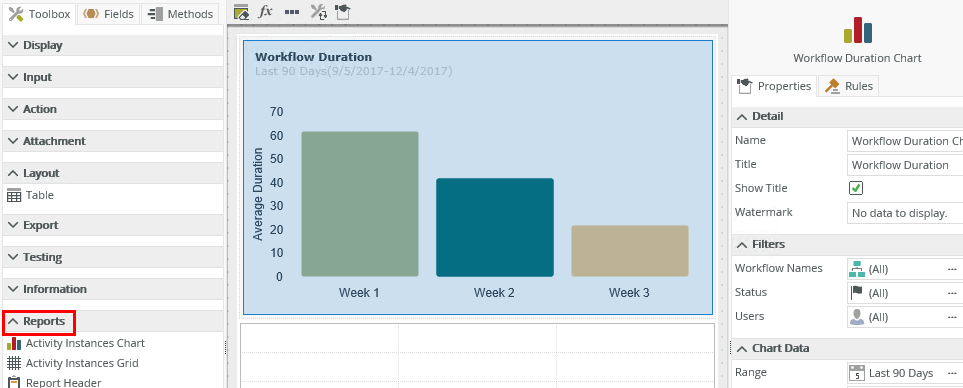

  2. Drag the control onto the canvas. You can find the control in the Reports section of the Toolbox.
  3. Configure the properties of the control to display the data you want in the chart.
  4. Run the view.

You can find the control in the Reports section of the Toolbox.

Property Description Can be set in runtime using rules?
Detail
Name A unique identifier for the control. This property is required and defaults to the name of the control. No
Title The title to display for the control. Yes, see Control Properties Actions for more information.
Show Title Shows or hides the title. Yes, see Control Properties Actions for more information.
Watermark Specify the text to display if no data is available. Yes, see Control Properties Actions for more information.
Filters
Workflow Names This is the workflow on which you want to filter the data. If you select All, all workflow instances are shown. Click the ellipsis to use the Workflows Picker. You can add more than one workflow to the list. The default setting is All. Yes, see Control Properties Actions for more information.
Status You can select specific statuses of the workflow instance you want to filter. Click the ellipsis to use the Status Picker. The default setting is All. Yes, see Control Properties Actions for more information.
Users Select users who participate in a workflow instance. Click the ellipsis to use the Users Picker. Yes, see Control Properties Actions for more information.
Chart Data
Range The date range to use to filter the data. The data returned typically executes according to the date on which a workflow instance is started. Select a date range from the predefined drop-down list to filter. Click the ellipsis to use the Date Range Picker. Yes, see Control Properties Actions for more information.
Group By The time period to use. Yes, see Control Properties Actions for more information.
Display Value This shows how the data is aggregated in the chart. You can select to show the data in duration (how long the workflow instance took to complete) or instance count (the amount of instances per workflow). Yes, see Control Properties Actions for more information.
Workflow Display You can display the workflow as stacked, clustered or aggregated
  • Stacked - Displays on top of each other
  • Clustered - Displays next to each other
  • Aggregated - Displays as the total aggregated value for all workflows you add in the filter
 Yes, see Control Properties Actions for more information.
Show Label Shows the labels of each workflow on the chart. Yes, see Control Properties Actions for more information.
Data
Participation The participation type to use to filter the data. Use this type with the Users filter to refine the filter:
  • I've started - Users who started a workflow instance
  • I've participated in - Users who participated in a workflow instance
  • All - All users who started or participated in a workflow instance
Yes, see Control Properties Actions for more information.
Display
Chart Type You can display the chart as a Column, Pie or Bar chart
Column - Displays values as sets of vertical columns that are grouped by category
Pie - Is a circular chart divided into sectors. Each sector shows the relative size of each value
Bar - Is a chart using rectangular bars with lengths proportional to the values they represent		 Yes, see Control Properties Actions for more information.
Show Grid Lines Select this option to display grid lines. Yes, see Control Properties Actions for more information.
Full Spread Includes date values with 0 instance count and 0 duration. Yes, see Control Properties Actions for more information.
24-hour Clock

Select this option if you want to use a 24-hour clock. For example 20:00 (24-hour clock) vs 08:00PM (12-hour clock).

Yes, see Control Properties Actions for more information.
Label Angle The angle at which you can rotate labels to display more effectively when the chart contains more than a few workflows. The default setting is 0. Type a rotation angle, such as 45. Yes, see Control Properties Actions for more information.
Select Effect The following effects determines how the control renders when you click an item in the chart:
Pie:
Fade: The selected item is rendered with an opacity of 100%. All other items are reduced to about 50% (faded out).
Explode and Fade: The selected item is exploded. The opacity of all other items are reduced to about 50%.
Explode: The selected item is exploded and has 100% opacity.
No Effect: All items are rendered with an opacity of 100%.
Column:
Fade: The selected item is rendered with an opacity of 100%. All other items are reduced to about 50% and faded out
Explode and Fade: The selected item has an opacity of 100%. All other items are reduced to about 50% (faded out).
Explode: All items are rendered with an opacity of 100%.
No Effect: All items are rendered with an opacity of 100%.
Bar:
Fade: The selected item is rendered with an opacity of 100%. All other items are reduced to about 50% and faded out.
Explode and Fade: The selected item has an opacity of 100%. All other items are reduced to about 50% (faded out)
Explode: All items are rendered with an opacity of 100%.
No Effect: All items are rendered with an opacity of 100%.		 Yes, see Control Properties Actions for more information.
Transition Effect Applies the Effect Yes, see Control Properties Actions for more information.
General
Height Adjusts the height of the control. You can enter any whole number or pixel value (maximum of 32767px). When set to zero, it's sized to fit the content of the page. Yes, see Control Properties Actions for more information.
Width Adjusts the width of the control. You can enter any whole percentage up to 100%, whole number, or pixel value (maximum of 32767px). Yes, see Control Properties Actions for more information.
Visible Shows or hides the control. Yes, see Control Properties Actions for more information.
Enabled Enables or disables the control. If the control is disabled, you cannot interact with the control. Yes, see Control Properties Actions for more information.
Read-Only Shows the control as read-only. Yes, see Control Properties Actions for more information.
Styles Opens the Style Builder allowing you to specify style features like format, font, borders, padding and margins. See the Style Builder topic for more information on styling options. No
Conditional Styles Opens the Conditional Formatting page. You can design styles that apply only when certain conditions are met. See the Conditional Styles section for more information. Click the ellipsis to open the Conditional Formatting page. No

Report controls interact with each other through rules. When you bind properties between different controls, you can use the data to populate properties or set values. See the following points for using rules with control properties:

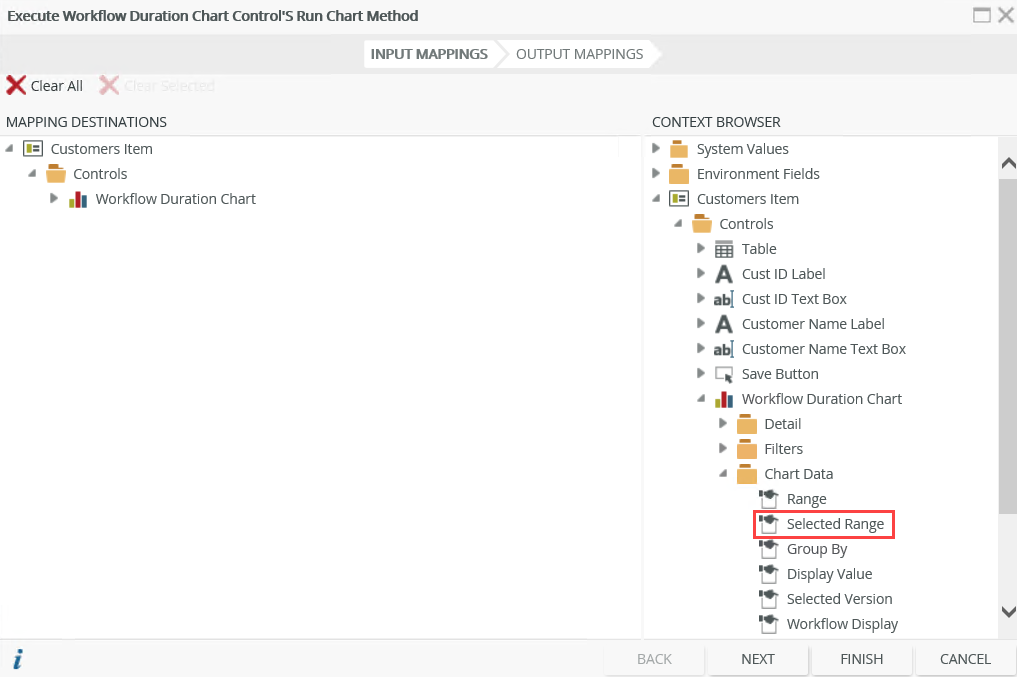

  • You can use the following property in the context browser when you use rules for mapping to other controls. This property is in addition to those mentioned in the Properties section of this topic, but is only available for interaction with rules:
    Selected Range - The range of the column you select. This property returns the start and end dates that you can use in other controls

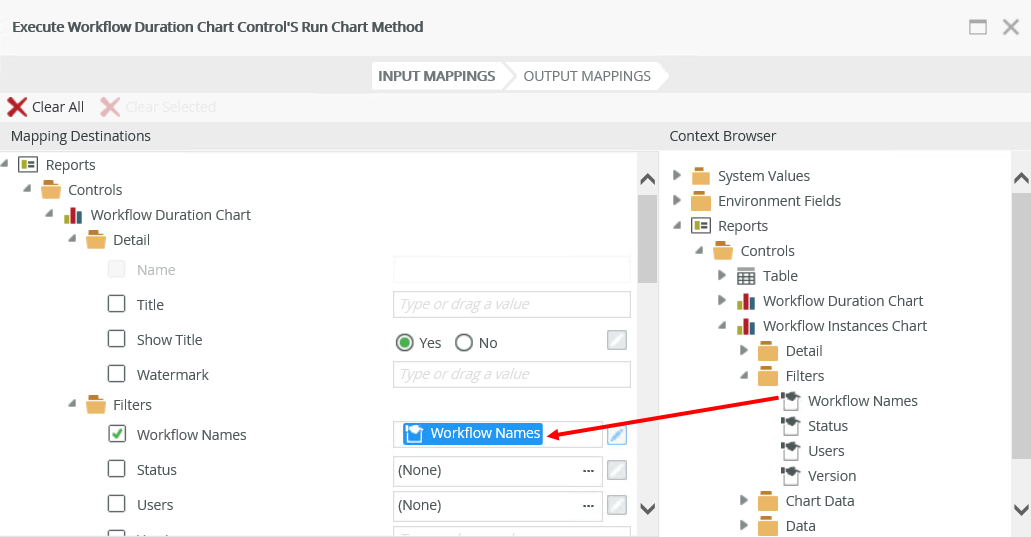

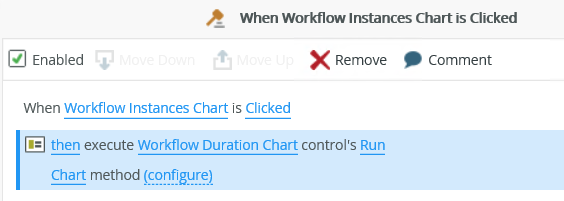

  • You can configure a rule to open the Workflow Duration Chart when you click a record in a Workflow Instances Chart. To do this, configure the following rule:

The following events and methods are available on the control:
Rule Events:

  • When [control] is Changed: This event executes when the control is set to a new value that is different from the previous value. You can use this event to trigger actions when the control is changed, for example execute the Run method.
  • When [control] is Clicked: You can execute a rule condition or action when the control is clicked, for example populate another control.
  • When [control] is Populated: This event executes each time the control is loaded. You can execute a rule condition or action when the control is loaded, for example execute the Run method of another report control.

Control Methods:

  • Execute a control's Clear method: Clears the workflow data from the control. You can use this method to, for example, clear the workflow data and then execute a Run method using rule mappings of a different workflow.
  • Execute a control's Run method: Gets the data from the database, applies configuration and rule settings, and then displays a graphic representation of the average duration and count of workflow instances over time.

Security on the Report controls ensures that the data is seen by only those who are authorized. Permissions are based on the process rights assigned to the process in Management Site:

  • Admin or View permissions: You can access the Report controls.
  • View Participate permissions: You can view the Report controls from the point where you are part of the workflow.
  • When you use the control together with the Save as PDF control, and you configure a percentage for the width of the control, a pixel width is calculated and used instead. When using the chart with the Save as PDF control, set the width of the control in pixels.
  • When you use custom themes, be sure to specify the CSS classes for the elements.
  • You can use reporting controls to access the data of workflows created in any workflow designer, including the K2 Designer and K2 Designer for SharePoint.
  • Certain combination configurations can impact performance, for example when you use a range of 90 days, grouped by hours, and you select the Full Spread option. This configuration is (90 days * 24 hours ) = 2160 columns that the chart renders. You can limit the range or deselect the Full Spread option if you experience performance issues.--
  • +
