Text Box Control

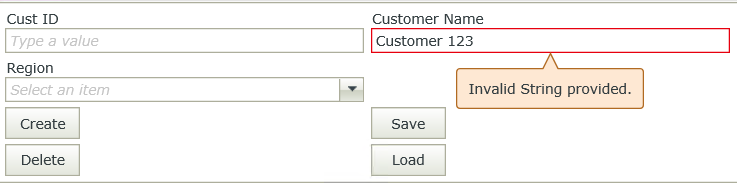

The Text Box control allows you to enter a single line of text. You can use patterns to validate values that people type into the control.

  1. Create a view.

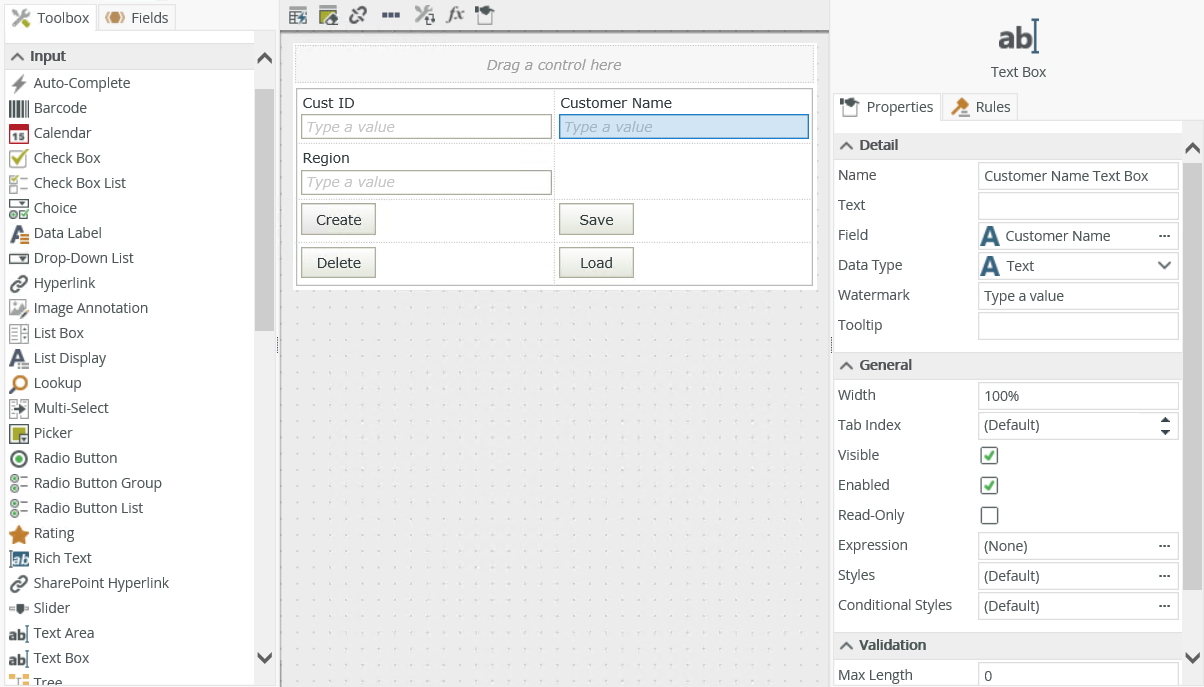

  2. Drag the control onto the canvas. You can find the control in the Input section of the Toolbox.
  3. Configure a validation pattern if necessary.
  4. Configure the rest of the properties as necessary.
  5. Run the view.

You can find the web.config files in the following locations:
"%ProgramFiles%\K2\K2 smartforms Designer\web.config"
"%ProgramFiles%\K2\K2 smartforms Runtime\web.config"

When you use Internet Explorer as your web browser and you configure a When [control] is Changed rule event, you can use the Enter key to execute the event. To do this, add the following to both web.config files in the appSettings node:

<add key="Forms.Controls.TextBox.EnterKeyRaisesOnChange" value="true" />


If the key entry is enabled in the Web.config file and you use an Editable List view, the Enter key does not commit the changes in the row but rather executes the When [control] is Changed rule event when the text box has focus.

You can find the control in the Input section of the Toolbox.

Properties Description Can be set in runtime using rules?
Detail
Name A unique identifier for the control. This property is required and defaults to the name of the control. No
Text Specify text to use when displaying the control at runtime, for example johndoe@companyname.com if an email address is required. Yes, see Control Properties Actions for more information.
Field The field bound to the control. See the Binding Fields to Controls section for more information on how to use it. No
Data Type A drop-down list containing the types of values that the control can accept. No
Watermark Specify the text to display when the control is empty. Yes, see Control Properties Actions for more information.
Tooltip The value to display when you hover over the control. Yes, see Control Properties Actions for more information.
General
Width Adjusts the width of the control. You can enter any whole percentage up to 100%, whole number or pixel value to a maximum of 32767px. Type the dimension. Yes, see Control Properties Actions for more information.
Tab Index Defines a sequence that users follow when they use the Tab key to navigate through a page at runtime. Yes, see Control Properties Actions for more information.
Visible Shows or hides the control. Yes, see Control Properties Actions for more information.
Enabled Enables or disables the control. If the control is disabled, you won't be able to use it. Yes, see Control Properties Actions for more information.
Read-Only Shows the control as read-only. Yes, see Control Properties Actions for more information.
Expression Opens the Expression Builder to configure expressions to populate the control with dynamically calculated values. Yes, see Control Properties Actions for more information.
Styles Opens the Style Builder allowing you to specify style features like format, font, borders, padding and margins. See the Style Builder topic for more information on styling options. No
Conditional Styles Opens the Conditional Formatting page. You can design styles that apply only when certain conditions are met. See the Conditional Styles section for more information. Click the ellipsis to open the Conditional Formatting page. No
Max Length The maximum number of characters that the control can accept. Type any value between 0 and 1000. Yes, see Control Properties Actions for more information.
Pattern Patterns are regular expressions that you can use to enforce validation on the control. Click the ellipsis next to Pattern to configure a validation. No
Message Specify the message to display if the content of the control does not adhere to the pattern. No

The control interacts with other controls through rules. When you bind properties between different controls, you can use the data to populate properties or set values. Use the following examples for when to use the control with other controls through rules:

  • Set a control’s properties: You can configure the settable properties of the control with this action
  • Show/Hide: The Visible property allows you to show or hide the control through rules
  • Enable/Disable: The Enabled property allows you to enable or disable the control through rules
  • Data Transfer: You can transfer data from items listed in the context browser to the control
  • Set Focus: You can use the Focus control method in the Rule Designer to set focus to the control in runtime
