Form - Parameters Tab

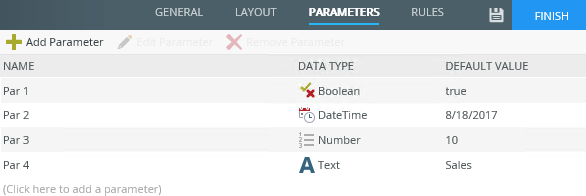

Use the Parameters tab to configure parameters of the form. This is an optional step when you create a form, and allows you to use parameters to pass data from a form to another form, view, subform or workflow. You can update form parameters using rules and you can use them like a variable to store values for later use. Form parameters can be Boolean, DateTime, Number, or Text. Parameters can have a default value and you can set the value of a parameter using rules. Parameter values can also be used in the expression builder.

Feature Description How to use it
Name A unique name for the parameter (see Considerations) Type the name of the parameter
Data Type

The data type of the parameter. It is important to choose the correct data type, especially if you need to use the value from a parameter as a SmartObject mapping. The following types are available:

 Select the data type from the drop down list
Default Value The default value used when you run the form with parameters. Validation is performed on the input values according to the data type you use, for example if you use Number as mentioned above, you cannot enter text in runtime Type a value if a default value should be used (optional)

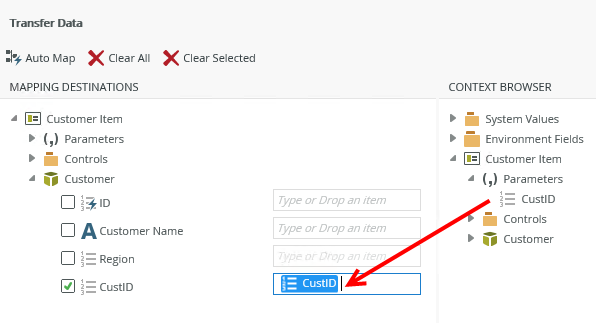

Another mechanism you can use to set the value of a parameter is the Transfer Data action in a rule. Parameters are listed in the Context Browser so that you can use their values in rule actions. You can also drag values (such as system and environmental values, as well as context of the view or form) from the Context Browser into the parameters Mapping Destinations.
For an example on how to use rules to set view parameters, see the following KB article:KB001359 - How to use View Parameters to transfer data to a subview

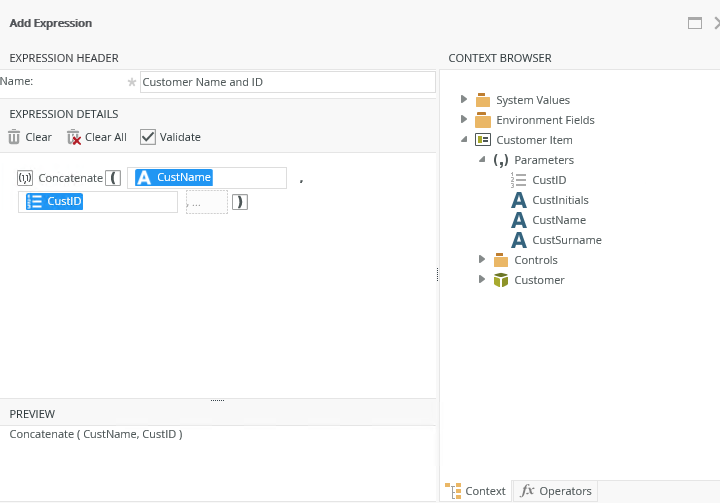

You can use parameter values from the Context Browser while using the expression builder. In this case, the Concatenate expression is used to make a single value out of two parameters.

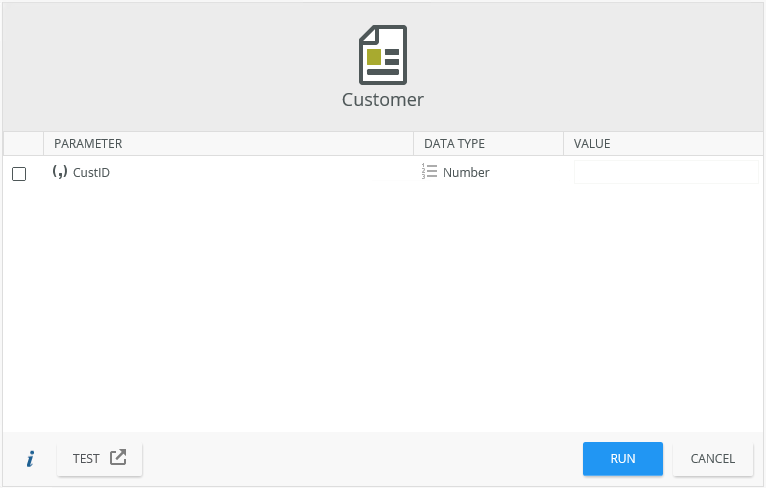

When you click the Finish button in the top right corner, the properties page opens. You can set parameters before running the form by selecting Run with Parameters. Specify test values for the parameters and then run the form. You can also open the form by clicking the URL.

  • Boolean values default to False and cannot be blank (null). Values accepted are:
    • 1 or 0
    • true or false
    • yes or no
  • The following HTML values are not allowed in Name of a parameter:
    • <
    • >
    • &
    • "
    • '
  • When you select to Run with Parameters and you have used parameters of type Number or Boolean, you must specify a value.
  • When you use the DateTime parameter, you cannot type a value and must pick it using the Calendar control.
  • Double-click a parameter to edit it.
  • When a view parameter has same name and type as a form parameter, the view parameter inherits the value of the form parameter.
