Workflow Reporting

The Workflow Reporting Service Type provides the data used to generate workflow reports. A service instance of this service type is registered automatically when you install the product. You do not normally need to register another instance unless you want to target a different K2 database to retrieve the reporting data, for example if you have archived data to another database.

Service Authentication

The following Authentication Modes may be used with the Service Type:

  • Impersonate
  • ServiceAccount
  • Single Single-on
  • Static
When connecting to on-premises systems from your environment, you must use static credentials. See KB002939: Connecting to On-Premises Data from K2 Cloud for more information about how to do this for supported systems.

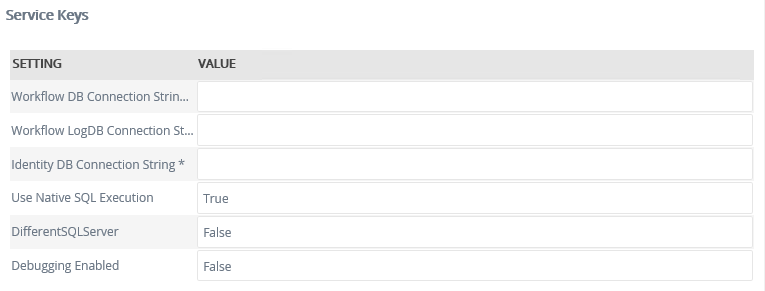

Service Keys (Service Instance Configuration Settings)

Key Can be modified Data Type Sample Value Notes
Workflow DB Connection String Yes Text Data Source=[SqlServerName];Initial Catalog=K2;integrated security=sspi;Pooling=True

SQL connection string to the K2 database.

This property contains sensitive information. You can enter and see your values when you first configure this value. The value will be masked when the service instance is updated.
Workflow LogDB Connection String Yes Text server=[SqlServerName];database=K2; uid=sa;pwd=k2pass;pooling=true; enlist=false;Min Pool Size=5

SQL connection string to the K2 database.

This property contains sensitive information. You can enter and see your values when you first configure this value. The value will be masked when the service instance is updated.
Identity DB Connection String Yes Text Data Source=[SqlServerName];Initial Catalog=K2;integrated security=sspi;Pooling=True

SQL connection string to the K2 database.

This property contains sensitive information. You can enter and see your values when you first configure this value. The value will be masked when the service instance is updated.
Use Native SQL Execution Yes True/ False True Usually set to True to improve performance.
DifferentSQLServer Yes True/ False False Usually set to False unless the targeted database is on a different server than the primary K2 database.
DebuggingEnabled Yes True/ False False If True, more debugging information is provided, but this can affect performance.

Service Objects

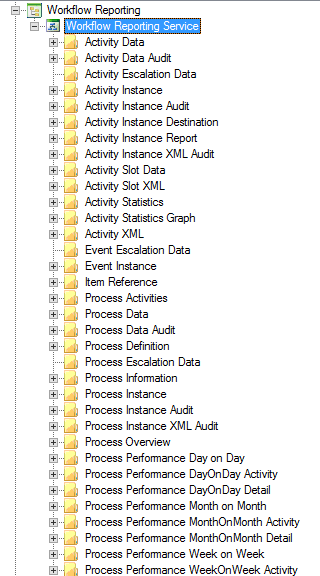

The Workflow Reporting Service Instance exposes Service Objects that are categorized based on the type of reporting data returned by the Service Object.

SmartObjects

The product automatically generates SmartObjects for these Service Objects. SmartObjects can be automatically created by selecting the Generate SmartObjects for this Service Instance check box when creating a new Service Instance. Designers can use the SmartObject design tools to build advanced SmartObjects that leverage the Service Objects in this service. It is recommended to use the SmartObject design tools to create SmartObjects rather than generating SmartObjects, since this allows better control over the naming, behavior and design of the SmartObject and its methods and properties.
