SQL Reporting Service
The SQL Reporting Service Service Type exposes the Export methods for reports published to a SQL Server Reporting Services (SSRS) server, as SmartObject methods. This is commonly used to export SSRS reports as .pdf, image, or Excel files, and then attach the resulting file to an e-mail or upload it to a SharePoint library.
Service Authentication
The following Authentication Modes may be used with the Service Type:
- Impersonate
- ServiceAccount
- Single Single-on
- Static

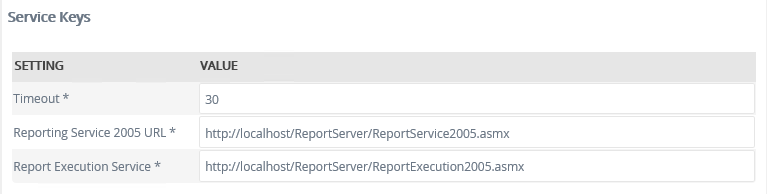

Service Keys (Service Instance Configuration Settings)
| Key | Can be modified | Data Type | Sample Value | Notes |
|---|---|---|---|---|
| Timeout | Yes | Number | 30 | Seconds to wait before a service method times out. |
| Reporting Service 2005 URL | Yes | Text | http://localhost/ReportServer/ReportService2005.asmx | Enter the Reporting Service URL. |
| Report Execution Service | Yes | Text | http://localhost/ReportServer/ReportExecution2005.asmx |
Enter the Reporting Execution Service URL. |
Service Objects

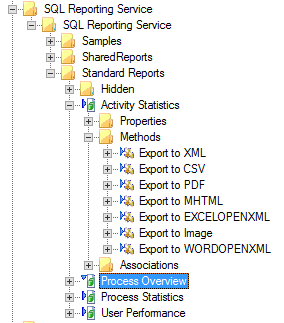

The SQL Reporting Service Instance typically exposes multiple Service Objects for the reports discovered in the targeted SSRS server, grouping the reports into Categories that reflect the Folder structure on the SSRS server.
SmartObjects
SmartObjects are automatically created when selecting the Generate SmartObjects for this Service Instance check box when creating a new Service Instance. Designers may use the available Service Objects in this service to create advanced SmartObjects using the available K2 SmartObject design tools. It is recommended to use the K2 Design tools to create SmartObjects rather than generating SmartObjects, since this allows better control over the naming, behavior and design of the SmartObject and its methods and properties.
Considerations
- A Service Instance must be configured for each SSRS site that you want to expose reports from.
- The account used to run the reports at runtime will require the appropriate permissions in the SSRS server to execute the report.
