Exchange Metadata
The Exchange Metadata Service Type allows the K2 server to discover Exchange servers, groups and mailbox databases.
An instance this Service Broker is configured during the K2 installation process if Exchange integration information is entered in the relevant installer screens. This service is an internal-only service and you would not normally need to register additional Service Instances. This service instance is not called directly by Exchange event wizards, but is used by the other Exchange Service Types.
Service Authentication
The following Authentication Modes may be used with the Service Type:
- Impersonate
- ServiceAccount
- Single Single-on
- Static

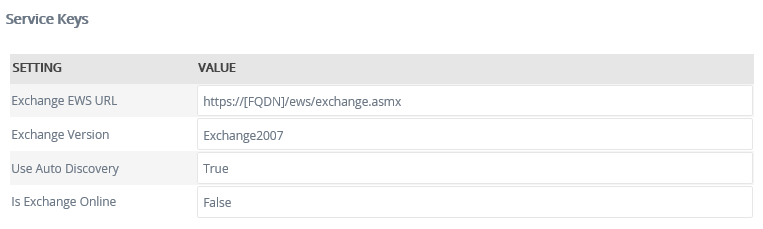

Service Keys (Service Instance Configuration Settings)
| Key | Can be modified | Data Type | Sample Value | Notes |
|---|---|---|---|---|
| Exchange EWS URL | Yes | Text | http://dlx.denallix.com/EWS/Exchange.asmx | The URL of the Exchange Web Services. |
| Exchange Version | Yes | Text | Exchange2010 | The version of Microsoft Exchange that has been configured for use with the K2 Server |
| Use Auto Discovery | Yes | True/False | True | |
| Is Exchange Online | Yes | True/False | False | Set this value to True if you are targeting an Exchange Online environment. |
Service Objects
The Exchange Metadata service creates the Exchange Metadata service object, which other Exchange services use. This service instance is not called directly by Exchange event wizards.
Considerations
- The default Service Instance of this service is used internally by the K2 environment. Do not modify or delete the existing service instance. You can create a new instance or use the methods from the existing instance
