.NET Framework in K2 for Visual Studio

K2 for Visual Studio - .NET Framework in K2 for Visual Studio

K2 for Visual Studio is able to build Workflow processes targeting .NET Framework 3.5, .NET Framework 4.0 as well as .NET Framework 4.5. When utilizing this functionality in the new K2 for Visual Studio it is important to take note of how K2 blackpearl targets these .NET Frameworks.

Note that as of K2 blackpearl 4.6.5, K2 for Visual Studio will use the .NET 4.0 Target Framework by default.

The table below illustrates which processes are able to function on which target framework to better decide which target framework to use when designing K2 workflow processes.

.NET 3.5 Target Framework	.NET 4.0 Target Framework	.NET 4.5 Target Framework
Visual Studio	Visual Studio	Visual Studio
K2 Studio	K2 Studio	K2 Studio
K2 Designer for SharePoint

Important Considerations:

Existing and new projects in K2 Designer for Visual Studio will be able to use the .NET 4.0 Target Framework.

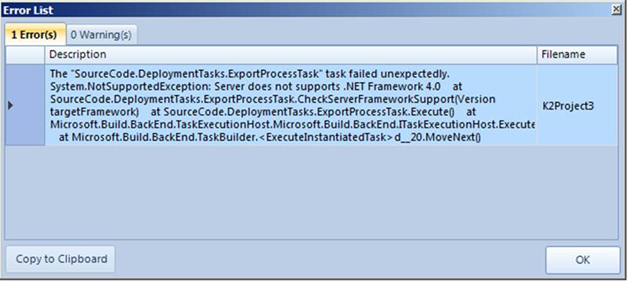

Deploying a .NET 4.0 Framework process to a K2 Server that has not been updated will result in errors, as in the image below:
It is however possible to deploy .NET Framework 3.5 processes to a K2 Server that has been updated (Targeting .NET Framework 4).

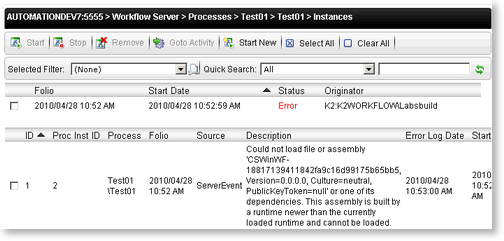

The following errors will be displayed if the deployed project executes on a server but does not support the server runtime:
Wizards using Workflow (WF) currently only supports .NET Framework 3 or 3.5
The K2 Default Server Event (Code) wizard will use .NET Framework 3.5 or 4.0 depending on the Target Framework selected.

Selecting the .NET Target Framework:

To select the target framework for a new K2 for Visual Studio project perform the following steps:

	Choose to create a new K2 for Visual Studio project

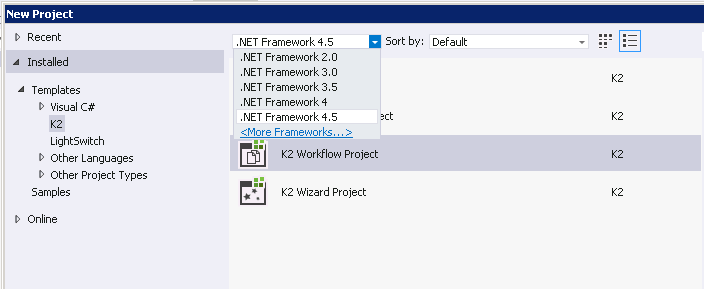

	On the New Project configuration screen select the relevant .NET Framework as displayed below.

Changing the Targeted .NET Framework of an existing K2 Project:

To select the target framework for a new K2 for Visual Studio 2012 project perform the following steps:

Open the existing K2 Project.

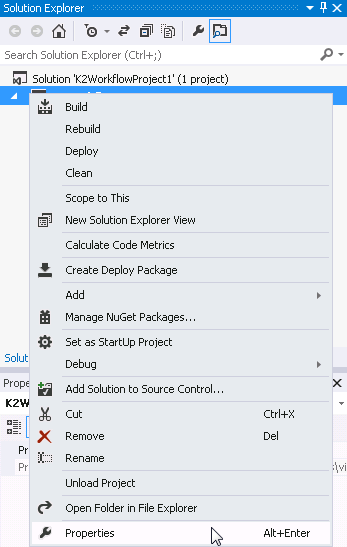

In Solution Explorer, right click on the Project Node and select Properties

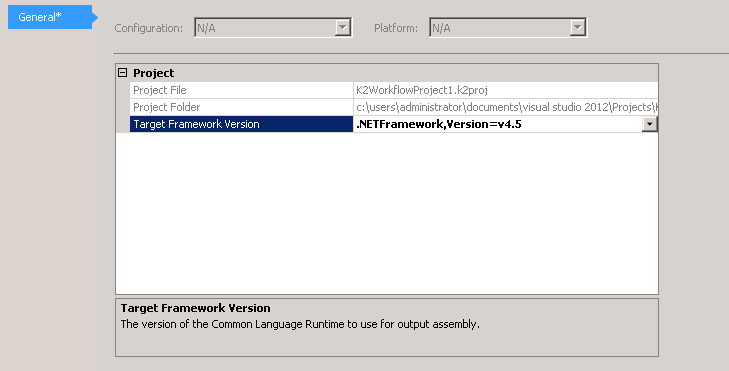

The following screen will be displayed. In older versions of Microsoft Visual Studio the interface will differ.

Change the Target Framework Version to the required Targeted .NET Framework. Save the changes.

Ensure to select either 3.5 or 4.0. Selecting any other version might cause the Project to not compile or Deploy

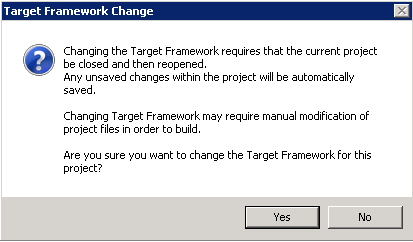

The following message will be displayed. Select Yes. The project will reload, Build the project and correct any errors in order to build successfully.

Configuring the K2 HostServer to run .NET Framework 4.0:

To ensure that workflow processes are able to deployed successfully when using the .NET Framework 4.0 in K2 for Visual Studio 2012 it is critical that the K2 Server be updated to run .NET Framework 4.0. The installer will update the K2 HostServer automatically from the 4.6.5 release.

Console Applications

An error may occur when starting a process instance via a console application created for .NET Framework 4 when referencing the SourceCode.Workflow.Client assembly where the assembly runtime version is v2.0.50727.

Error Example

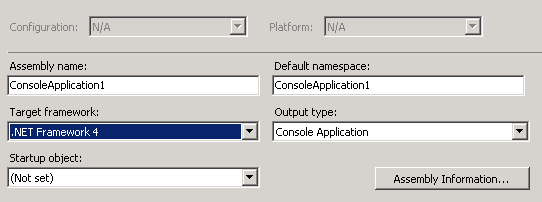

Create a Console Application that uses the .NET Framework 4 as the Target framework.

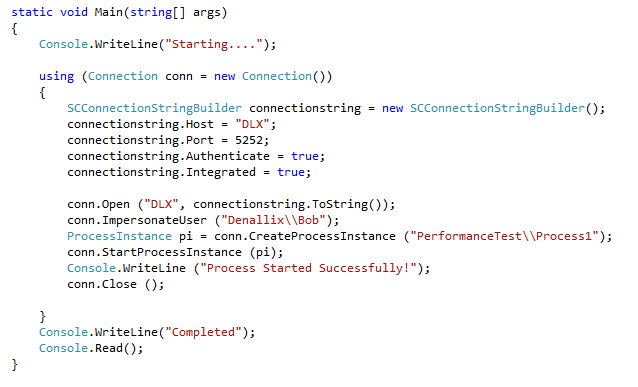

The following sample code shows a simple console application that will demonstrate the issue:
The Project app.config file will contain the following supportedRuntime version node:

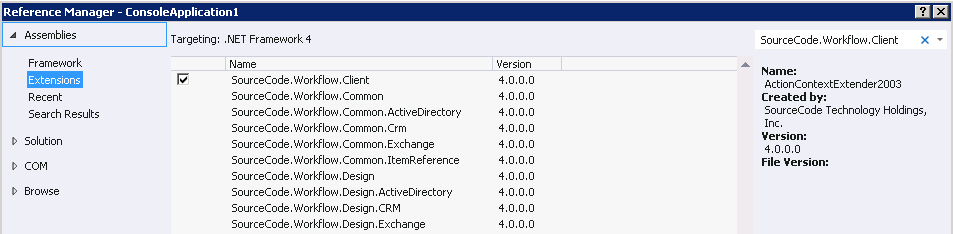

In your console application create a reference to the SourceCode.Workflow.Client component

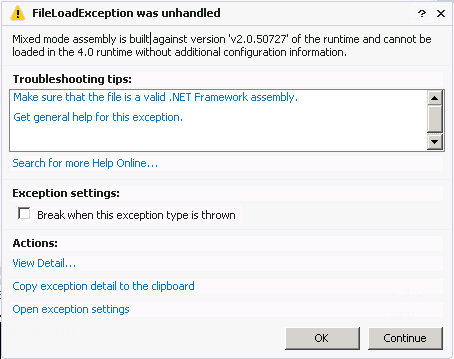

Run the console application and you will see the following error:

Workaround

Edit the project app.config file and add the following entry [useLegacyV2RuntimeActivationPolicy=”true”]:

Now recompile and run the console application
